30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) INSTRUMENT PANEL ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

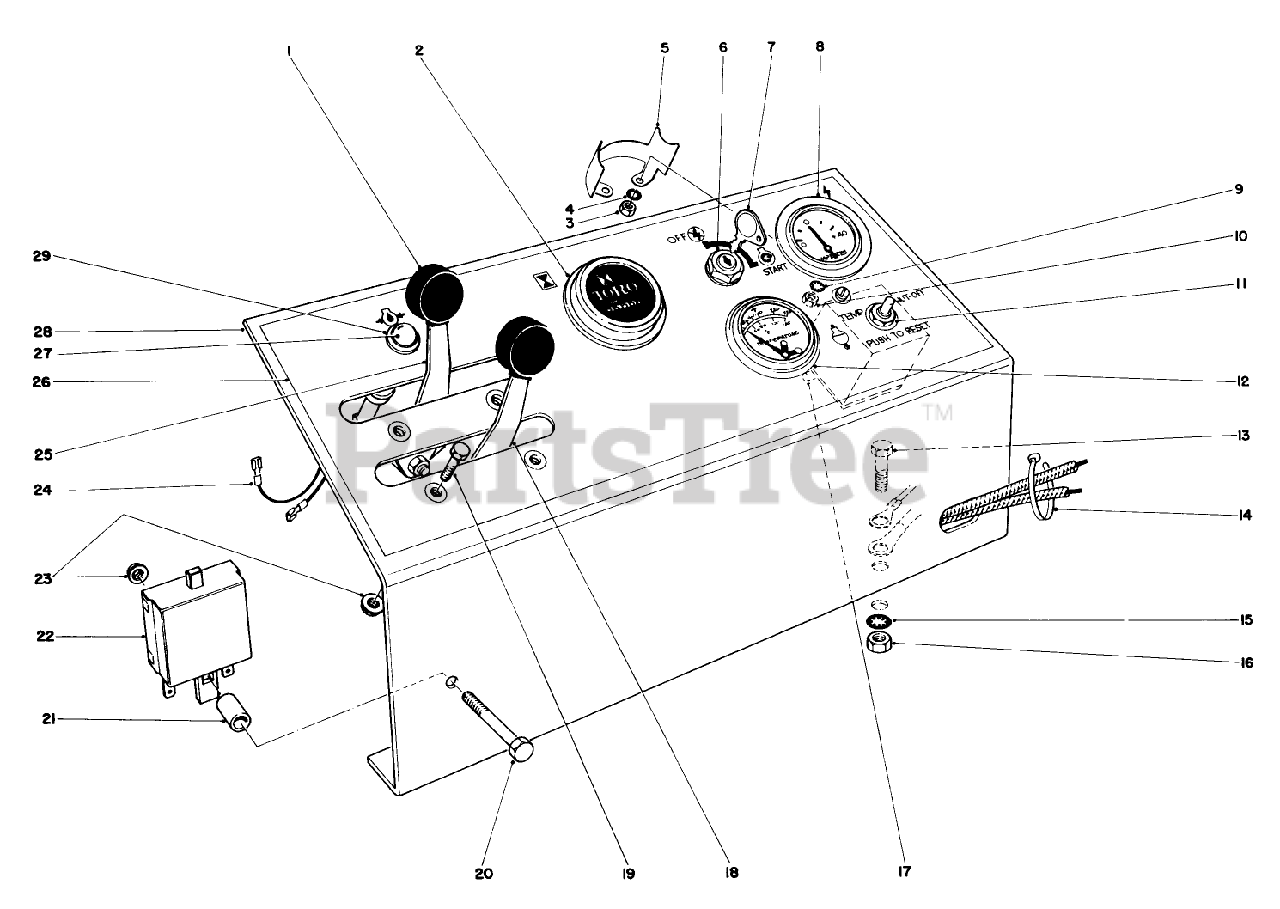

INSTRUMENT PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 233-35

KNOB

$9.49

$

Usually ships in 3-6 days

0

2

Toro 12-9990

HOUR METER
(Superseded to 66-2950)

$

$

Not available

3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

4

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

5

Toro 26-4390

Clamp
(Superseded to 38-1670)

$

$

Not available

6

Toro 27-2360

SWITCH

$47.99

$

In Stock, only 4 left!

0

7

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

8

Toro 38-1660

AMMETER GAGE
(Superseded to 83-0820)

$

$

Not available

9

Toro 3254-9

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3217-29

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11

Toro 26-6740

TEMP RESET RELAY

$

$

Not available

12

Toro 26-6750

ENG TEMP SWITCH GAGE

$

$

Not available

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 12

0

15

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

16

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

17

Fuse Temp Relay 14 AMP SFE

Note: Obtain locally.

$

$

Not available

18

Toro 28-1590

Throttle Control (Incl. Ref. #1)

$

$

Not available

19

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 6

0

20

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

21

Toro 22-7810

SPACER

$18.99

$

Usually ships in 3-6 days

0

22

Toro 22-7820

BUZZER ASM

$

$

Not available

23

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

24

Toro 44-2220

LEAD WIRE ASM

$

$

Not available

25

Toro 28-1600

Choke Control (Incl. Ref. #1)

$

$

Not available

26

Toro 40-4400

Decal-Instrument Panel
(Superseded to 70-2030)

$

$

Not available

27

Toro 218-516

LENS

$

$

Not available

28

Toro 28-1580

INST PANEL B

$

$

Not available

29

Toro 44-2210

Warning Light (Incl. Ref. #27)

$73.99

$

Usually ships in 3-6 days

0
