30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) HYDRAULIC CYLLNDER ASSEMBLY-53-3160 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

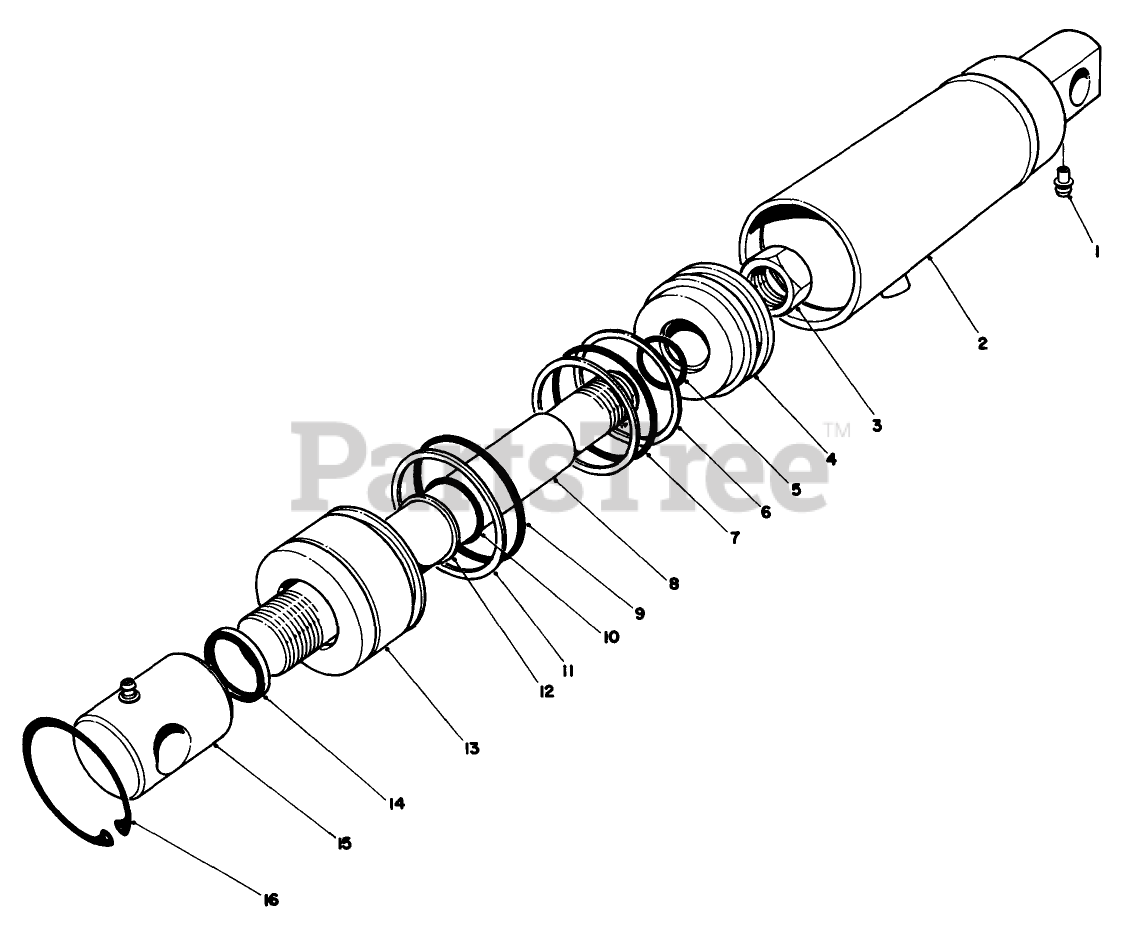

HYDRAULIC CYLLNDER ASSEMBLY-53-3160 Parts Diagram

  • Title

1

Toro 302-22

FITTING-GREASE

$13.99

$

Usually ships in 3-6 days

0

2

Toro 53-9500

Barrel Assembly
(Superseded to 100-6592)

$

$

Not available

3

Toro 53-9510

Nut-Lock

$

$

Not available

4

Toro 53-9520

Piston Gland

$

$

Not available

5

Toro 53-9550

O-Ring

$

$

Currently unavailable

6

Toro 53-9540

Ring-Back-Up

$

$

Currently unavailable

7

Toro 53-9530

O-Ring

$

$

Currently unavailable

8

Toro 53-9600

Rod

$

$

Not available

9

Toro 53-9620

O-Ring

$

$

Currently unavailable

10

Toro 53-9570

O-Ring

$

$

Currently unavailable

11

Toro 53-9630

Ring-Back-Up

$

$

Currently unavailable

12

Toro 53-9580

Ring-Back-Up

$

$

Currently unavailable

13

Toro 53-9560

HEAD GLAND

$

$

Not available

14

Toro 53-9590

Wiper-Rod

$

$

Currently unavailable

15

Toro 53-9610

ROD CLEVIS

$

$

Not available

16

Toro 53-9640

Ring-Snap

$

$

Currently unavailable

Toro 53-9650

Seal Repair Kit (Incl.Ref.#5-7,9-12,14 & 16)

Note: Not illustrated

$

$

Not available
