30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1978) SEAT INTERLOCK ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

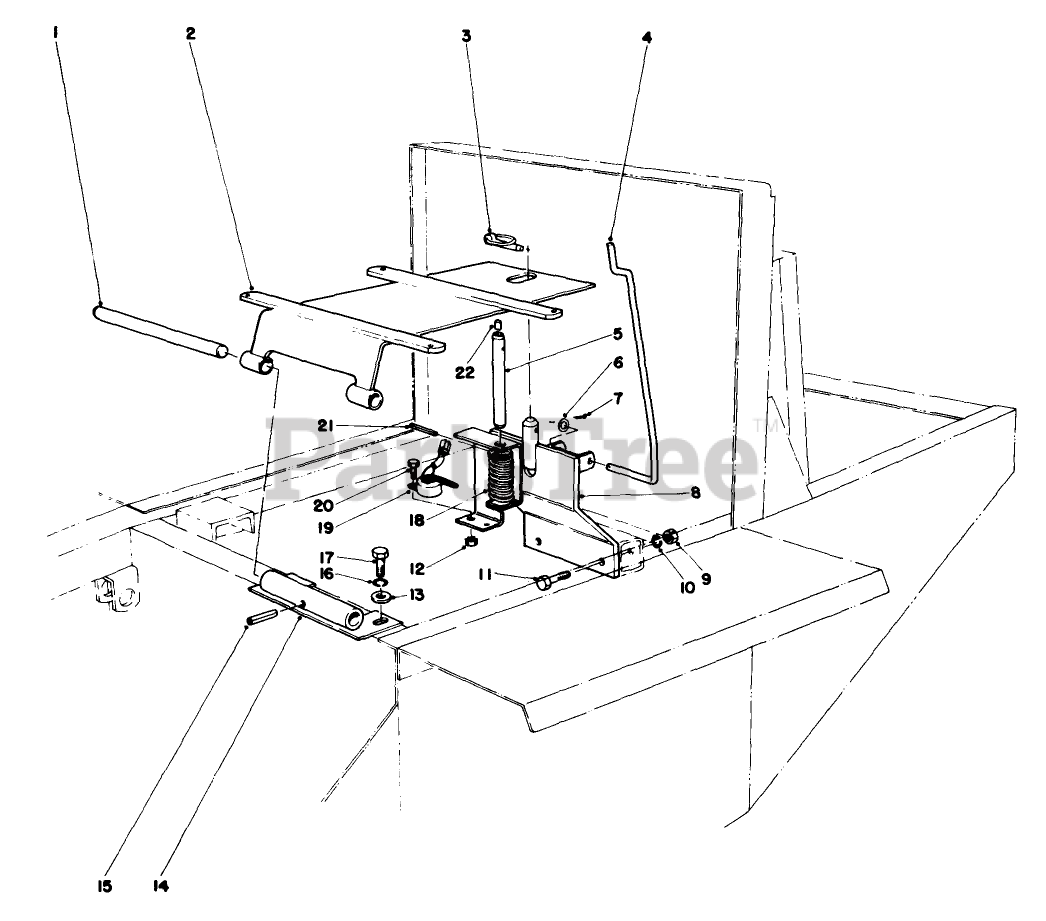

SEAT INTERLOCK ASSEMBLY Parts Diagram

  • Title

1

Toro 27-4720

SHAFT-PIVOT, SEAT

$

$

Not available

2

Toro 27-9780

SEAT SUPPORT WA

$

$

Not available

3

Toro 3290-243

PIN-LYNCH

$28.99

$

Usually ships in 3-6 days

0

4

Toro 27-9880

Seat Prop

$

$

Not available

5

Toro 27-9870

PIN-SWITCH, SEAT

$39.99

$

Usually ships in 3-6 days

0

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 27-9830

Bracket-Seat Support
(Superseded to 71-4490)

$

$

Not available

9

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

11

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 27-9810

Pivot-Seat
(Superseded to 27-9810-01)

$

$

Not available

15

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 28-0570

SPRING-COMPRESSION

$37.99

$

Usually ships in 3-6 days

0

19

Toro 29-6930

SWITCH ARM

$

$

Not available

20

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

21

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

22

Toro 28-6180

PIN-PEDAL

$6.99

$

Usually ships in 3-6 days

0
