30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) TRANSMISSION ASSEMBLY (48-1790) Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

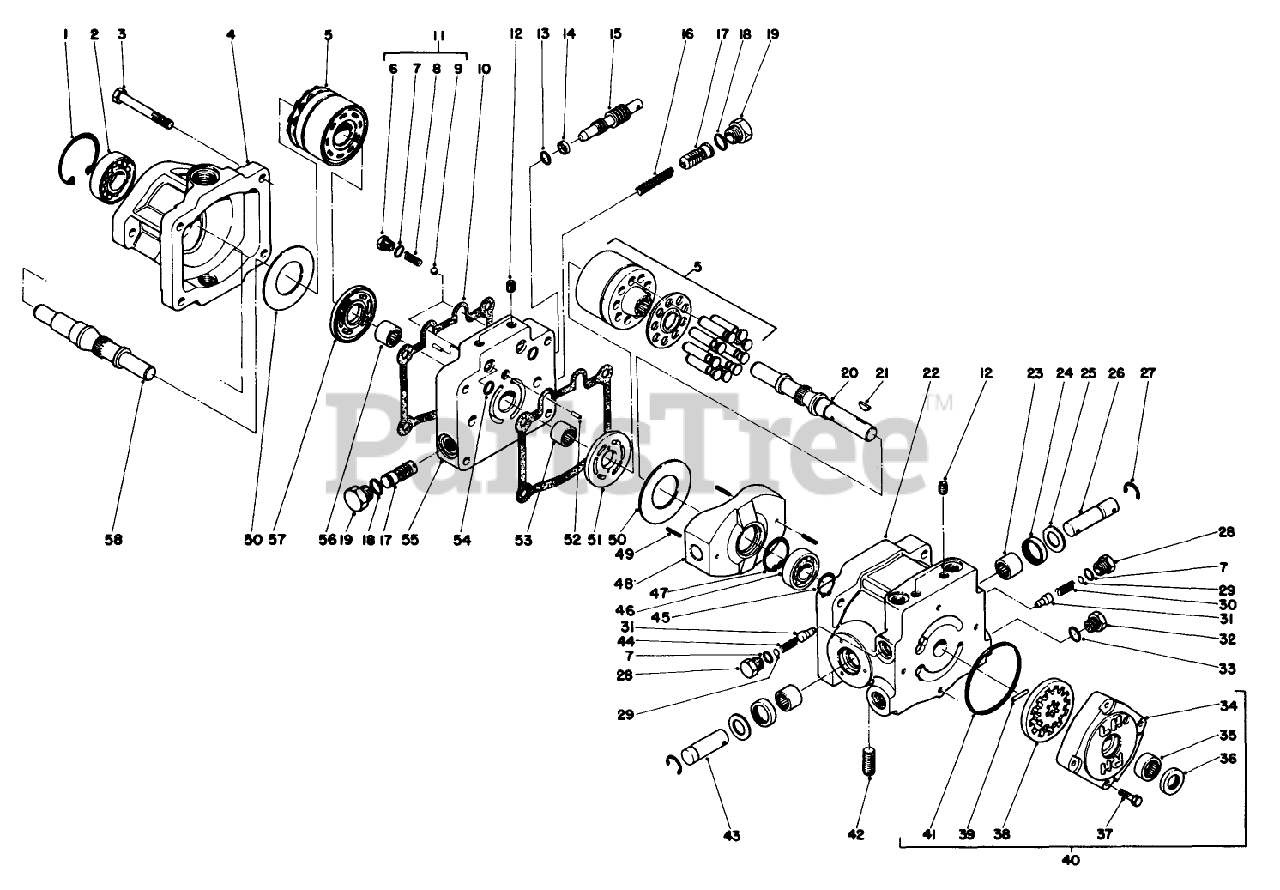

TRANSMISSION ASSEMBLY (48-1790) Parts Diagram

  • Title

1

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

2

Toro 251-263

BEARING

$118.99

$

In Stock, only 1 left!

0

3

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 8

0

4

Toro 25-2360

Motor Housing
(Superseded to 80-4320)

$

$

Not available

5

Toro 48-1800

CYLINDER BLOCK KIT

$2501.99

$

Usually ships in 3-6 days

0

6

Toro 25-2650

PLUG-VALVE, CHECK

$101.99

$

Usually ships in 3-6 days

0

7

Toro 237-86

O-RING

$

$

Not available

8

Toro 25-2640

SPRING-VALVE

$4.99

$

Usually ships in 3-6 days

0

9

Toro 25-2490

BALL

$16.99

$

Usually ships in 3-6 days

0

10

Toro 25-2400

GASKET

$

$

Not available

11

Toro 25-3180

Check Valve Kit (Incl. Ref. #6-9)
(Superseded to 99-5689)

$

$

Not available

12

Toro 285-17

PLUG-PIPE

$2.99

$

Usually ships in 3-6 days

0

13

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

14

Toro 25-2630

RING-BACK UP

$4.49

$

Usually ships in 3-6 days

0

15

Toro 25-2620

By Pass Valve
(Superseded to 88-8220)

$

$

Not available

16

Toro 25-2610

SPRING-VALVE

$33.99

$

Usually ships in 3-6 days

0

17

Toro 25-2410

VALVE ASM

$665.99

$

Usually ships in 3-6 days

0

18

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

19

Toro 353-550

PLUG-HYD, HH

$16.99

$

Usually ships in 3-6 days

0

20

Toro 36-5370

Pump Shaft
(Superseded to 99-5692)

$

$

Not available

21

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

22

Toro 25-2520

PUMP HSG

$

$

Not available

23

Toro 252-82

BEARING-NEEDLE

$55.99

$

Usually ships in 3-6 days

0

24

Toro 25-3210

SEAL-LIP

$23.99

$

In Stock, only 2 left!

0

25

Toro 25-2510

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

26

Toro 25-2580

SHAFT-TRUNNION

$

$

Not available

27

Toro 32151-46

RING-RETAINING

$8.99

$

Usually ships in 3-6 days

0

28

Toro 25-2460

PLUG-HH

$42.99

$

Usually ships in 3-6 days

0

29

Toro 25-2470

PACK-SHIM

$56.99

$

Usually ships in 3-6 days

0

30

Toro 25-2570

SPRING-VALVE

$14.99

$

Usually ships in 3-6 days

0

31

Toro 25-2560

Cone-Relief Valve
(Superseded to 83-7260)

$65.99

$

Usually ships in 3-6 days

0

32

Toro 353-551

PLUG-HH

$28.99

$

Usually ships in 3-6 days

0

33

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

34

Toro 25-2550

HOUSING-PUMP, CHARGE

$

$

Not available

35

Toro 252-87

NEEDLE BRG

$

$

Not available

36

Toro 253-44

SEAL-OIL

$27.99

$

In Stock, only 2 left!

0

37

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 25-2680

GEROTOR ASM

$

$

Not available

39

Toro 25-2530

PIN-STRAIGHT, HEADLESS

$

$

Not available

40

Toro 25-3190

Charge Pump (Incl. Ref. #34-39 & 41)

$

$

Not available

41

Toro 237-95

O-RING

$

$

Not available

42

Toro 25-2660

UNION-FILTER

$

$

Not available

43

Toro 25-2500

SHAFT-TRUNNION

$219.99

$

Usually ships in 3-6 days

0

44

Toro 25-2480

SPRING-VALVE

$5.99

$

Usually ships in 3-6 days

0

45

Toro 32120-15

RING-SNAP, EXT

$

$

Not available

46

Toro 251-8

BEARING-BALL

$32.99

$

Usually ships in 3-6 days

0

47

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 20+

0

48

Toro 25-2450

PLATE-SWASH, VARIABLE

$1154.99

$

Usually ships in 3-6 days

0

49

Toro 32121-91

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

50

Toro 25-2380

PLATE-THRUST

$34.99

$

Usually ships in 3-6 days

0

51

Toro 25-2440

PLATE-VALVE, PUMP

$

$

Not available

52

Toro 25-2430

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

53

Toro 25-3300

BEARING-NEEDLE

$127.99

$

Usually ships in 3-6 days

0

54

Toro 62-4290

O-Ring
(Superseded to 93-4132)

$

$

Not available

55

Toro 25-2420

Center Section

$

$

Not available

56

Toro 46-8400

BEARING-SHAFT
(Superseded to 110-6341)

$50.99

$

Usually ships in 3-6 days

0

57

Toro 25-2390

PLATE-VALVE, MOTOR

$

$

Not available

58

Toro 46-8410

SHAFT-MOTOR

$

$

Not available
