30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1979) HYDROSTATIC TRANSMISSION & VALVE ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

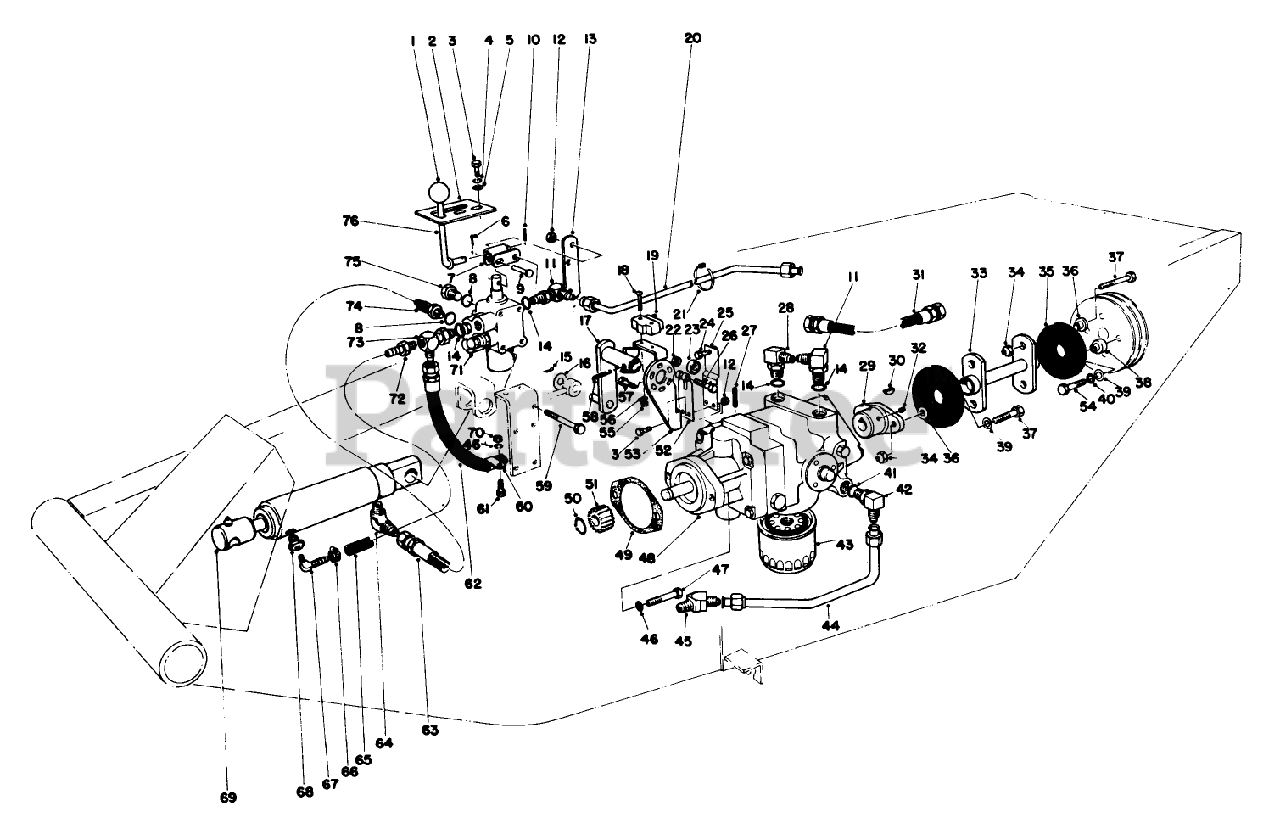

HYDROSTATIC TRANSMISSION & VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

0

2

Toro 21-8640

LATCH-LEVER, VALVE

$

$

Not available

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

6

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

7

Toro 21-8590

Link-Valve Lever
(Superseded to 21-8590-03)

$

$

Not available

8

Toro 237-78

O-RING

$4.49

$

In Stock, Qty 11

0

9

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

10

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

11

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$26.99

$

In Stock, only 2 left!

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 21-9010

LEVER-VALVE, PIVOT MOUNT

$

$

Not available

14

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

16

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

17

Toro 28-9570

Lever-Pump
(Superseded to 28-9570-03)

$

$

Not available

18

Toro 3249-11

SCREW-MACHINE

$0.99

$

Usually ships in 3-6 days

0

19

Toro 29-6160

Micro Switch
(Superseded to 29-6163)

$117.99

$

Usually ships in 3-6 days

0

20

Toro 23-1880

PRESSURE LINE TUBE

$

$

Not available

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 251-259

BEARING-BALL

$17.99

$

In Stock, only 4 left!

0

24

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

25

Toro 29-6170

EXTENDED LEAF SPRING ASM

$51.99

$

Usually ships in 3-6 days

0

26

Toro 322-17

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

27

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

28

Toro 353-511

FITTING-HYD, 90 DEG

$37.99

$

Usually ships in 3-6 days

0

29

Toro 33-4380

HUB-PUMP
(Superseded to 110-9695)

$71.99

$

In Stock, only 2 left!

0

30

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

31

Toro 33-4410

PUMP-COOLER HOSE

$

$

Not available

32

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 10

0

33

Toro 27-3780

Drive Coupling
(Superseded to 46-6370)

$

$

Not available

34

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

35

Toro 27-6560

Coupling Rubber
(Superseded to 115-4523)

$60.99

$

In Stock, Qty 20+

0

36

Toro 27-6600

SPACER-COUPLING
(Superseded to 125-9249)

$2.99

$

In Stock, only 3 left!

0

37

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

38

Toro 27-6590

SPACER-COUPLING, RUBBER

$17.99

$

Usually ships in 3-6 days

0

39

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

40

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

41

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

42

Toro 353-370

FITTING-ELBOW, 90 DEG

$85.99

$

Usually ships in 3-6 days

0

43

Toro 23-2300

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, only 4 left!

0

44

Toro 23-1900

AXLE-PUMP TUBE ASM

$

$

Not available

45

Toro 353-535

45 DEG FITTING

$

$

Not available

46

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

47

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

48

Toro 22-4760

Transmission Inline (Incl. Ref. #30 & 51)
(Superseded to 92-8902)

$

$

Not available

49

Toro 23-1800

Gasket
(Superseded to 41-8760)

$

$

Not available

50

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 7

0

51

Toro 23-4810

Gear
(Superseded to 86-7220)

$105.99

$

Usually ships in 3-6 days

0

52

Toro 29-6150

SPRING-LEAF
(Superseded to 110-9650)

$48.99

$

Usually ships in 3-6 days

0

53

Toro 29-6120

Plate-Pump
(Superseded to 29-6120-03)

$

$

Not available

54

Toro 322-8

SCREW-HH

$3.99

$

In Stock, Qty 6

0

55

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

56

Toro 325-49

Lockwasher

$

$

Currently unavailable

57

Toro 32104-42

1/4-20 X 3/4 THDG SCR
(Superseded to 32104-95)

$0.99

$

In Stock, Qty 9

0

58

Toro 32121-24

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

59

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

60

Toro 2412-4

CLAMP-R

$5.49

$

Usually ships in 3-6 days

0

61

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

62

Toro 26-2380

HOSE

$

$

Not available

63

Toro 21-8580

VALVE-CYLINDER HOSE

$

$

Not available

64

Toro 5-6560

ELBOW

$

$

Not available

65

Toro 6-1190

GAS LINE
(Superseded to 107-9297)

$8.49

$

In Stock, only 2 left!

0

66

Toro 2412-36

CLAMP-HOSE

$2.49

$

In Stock, Qty 8

0

67

Toro 304-75

CONNECTOR-HOSE

$9.49

$

Usually ships in 3-6 days

0

68

Toro 304-97

REDUCING BSGH

$

$

Not available

69

Toro 21-0390

Hydraulic Cylinder

$

$

Not available

70

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 19

0

71

Toro 21-8550

Valve
(Superseded to 121-9070)

$592.99

$

Usually ships in 3-6 days

0

72

Toro 304-73

FITTING-STRAIGHT

$19.99

$

Usually ships in 3-6 days

0

73

Toro 21-4940

FITTING ASM

$

$

Not available

74

Toro 353-375

FITTING-ELBOW, 90

$54.99

$

Usually ships in 3-6 days

0

75

Toro 353-512

PLUG

$23.99

$

Usually ships in 3-6 days

0

76

Toro 21-8620

Lever Valve
(Superseded to 21-8620-03)

$

$

Not available
