30734 - Toro Cab and Roll-Over Protection Kit (SN: 000500001 - 000599999) (1975) CAB WITH ROLL OVER PROTECTION 72" GROUNDSMASTER Parts Diagram

Cab and Roll-Over Protection Kit

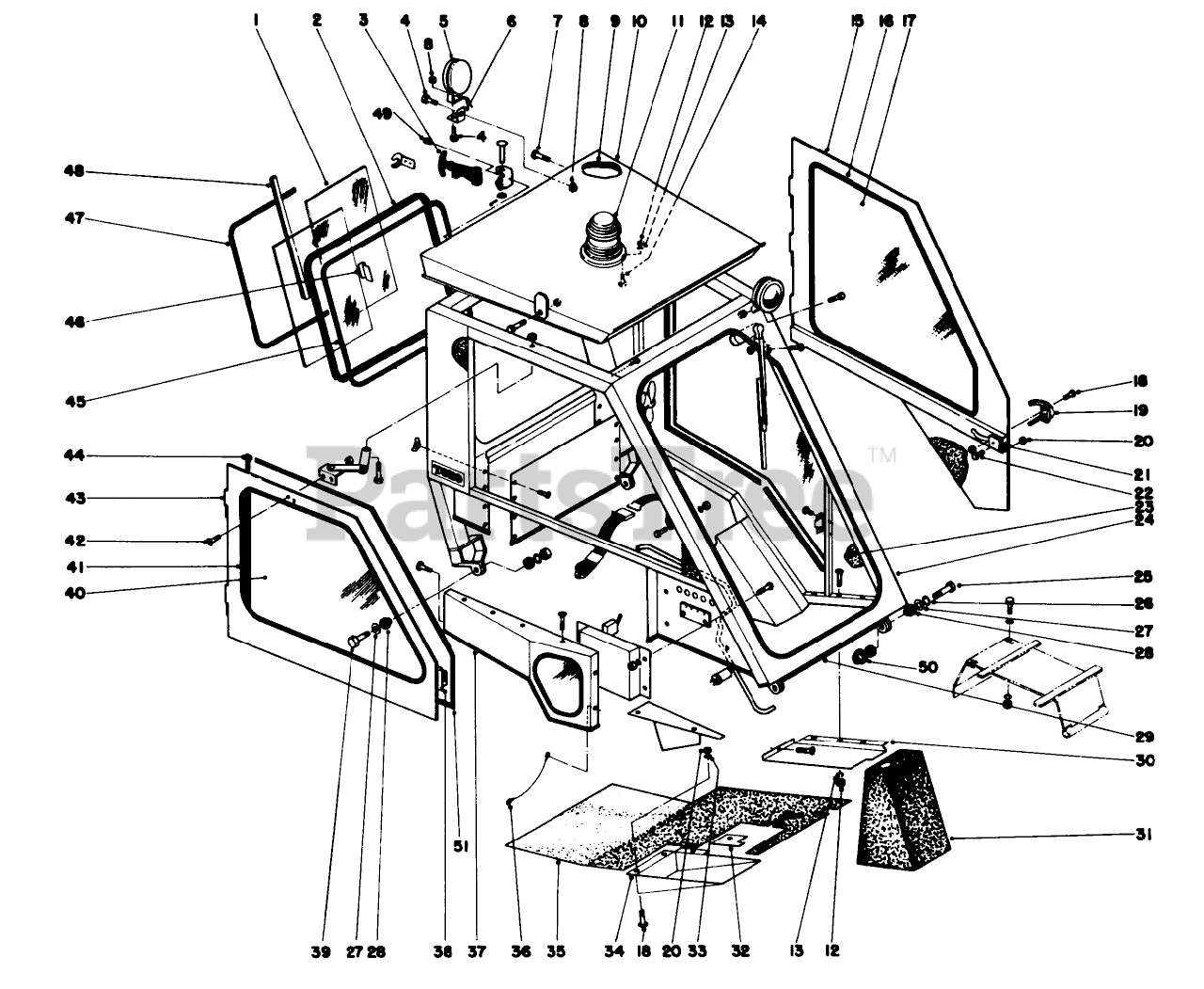

CAB WITH ROLL OVER PROTECTION 72" GROUNDSMASTER Parts Diagram

  • Title

1

Toro 25-4360

Back Glass

$

$

Currently unavailable

2

Toro 25-4380

Back Combination Channel

$

$

Currently unavailable

3

Toro 5-5500

Switch

$

$

Currently unavailable

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 25-4240

Rear Working Light

$

$

Currently unavailable

6

Toro 25-4310

Tail Light Bracket

$

$

Currently unavailable

7

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

8

Toro 32153-3

NUT-HEX, SIDE DEFORM

$6.49

$

Usually ships in 3-6 days

0

9

Toro 25-4710

1" Insulation

$

$

Not available

10

Toro 25-4530

Roof Assembly

$

$

Currently unavailable

11

Toro 25-4220

Flashing Amber Beacon

$

$

Currently unavailable

12

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

13

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

14

Toro 3251-4

SCREW-SRH

$0.99

$

In Stock, only 2 left!

0

15

Toro 25-4520

Left Door

$

$

Currently unavailable

16

Toro 25-4670

Left Door Window Rubber

$

$

Not available

17

Toro 25-4450

Left Door Window Glass

$

$

Currently unavailable

18

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

19

Toro 25-4290

Door Handle-Locking

$

$

Currently unavailable

20

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

21

Toro 25-4270

Inside Door Handle-L.H.

$

$

Not available

22

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

23

Toro 25-4630

Left Front Filler-Polyfoam

$

$

Currently unavailable

24

Toro 25-4470

Cab Frame

$

$

Currently unavailable

25

Toro 328-20

Capscrew
(Superseded to 328-7)

$5.49

$

Usually ships in 3-6 days

0

26

Toro 3253-9

WASHER-LOCK

$1.49

$

In Stock, only 3 left!

0

27

Toro 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 6

0

28

Toro 25-4500

Rubber Mount

$

$

Currently unavailable

29

Toro 25-4640

Back Sealing Rubber

$

$

Not available

30

Toro 25-4370

Left Front Corner

$

$

Currently unavailable

31

Toro 25-4430

Fabric Boot Around Steering

$

$

Not available

32

Toro 25-4680

Left Pocket Holder

$

$

Currently unavailable

33

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 25-4600

Fabric Boot For Foot Pedal

$

$

Currently unavailable

35

Toro 25-4570

Floor Mat

$

$

Not available

36

Toro 25-4560

Ground Wire

$

$

Not available

37

Toro 25-4640

Back Sealing Rubber

$

$

Not available

38

Toro 25-8280

Inside Window Handle-R.H.

$

$

Currently unavailable

39

Toro 328-22

SCREW-HH

$

$

Not available

40

Toro 25-4480

Right Door Window Glass

$

$

Currently unavailable

41

Toro 25-4670

Left Door Window Rubber

$

$

Not available

42

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

43

Toro 25-4510

Right Door

$

$

Currently unavailable

44

Toro 25-4720

DOOR WEATHER STRIP

$

$

Not available

45

Toro 25-4390

Back Combination Rubber

$

$

Not available

46

Toro 25-4420

WINDOW HANDLE

$

$

Not available

47

Toro 25-4350

Spacing Rubber

$

$

Not available

48

Toro 25-4340

Window Sealing Felt

$

$

Not available

49

Toro 32104-60

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

50

Toro 25-8270

Front Mount

$

$

Currently unavailable

51

Toro 25-4750

DOOR WEATHER STRIP

$

$

Not available
