30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) FLOTATION KIT MODEL NO. 30759 (OPTIONAL) (FOR CUTTING UNITS MODEL NO. 30544 & 30752) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

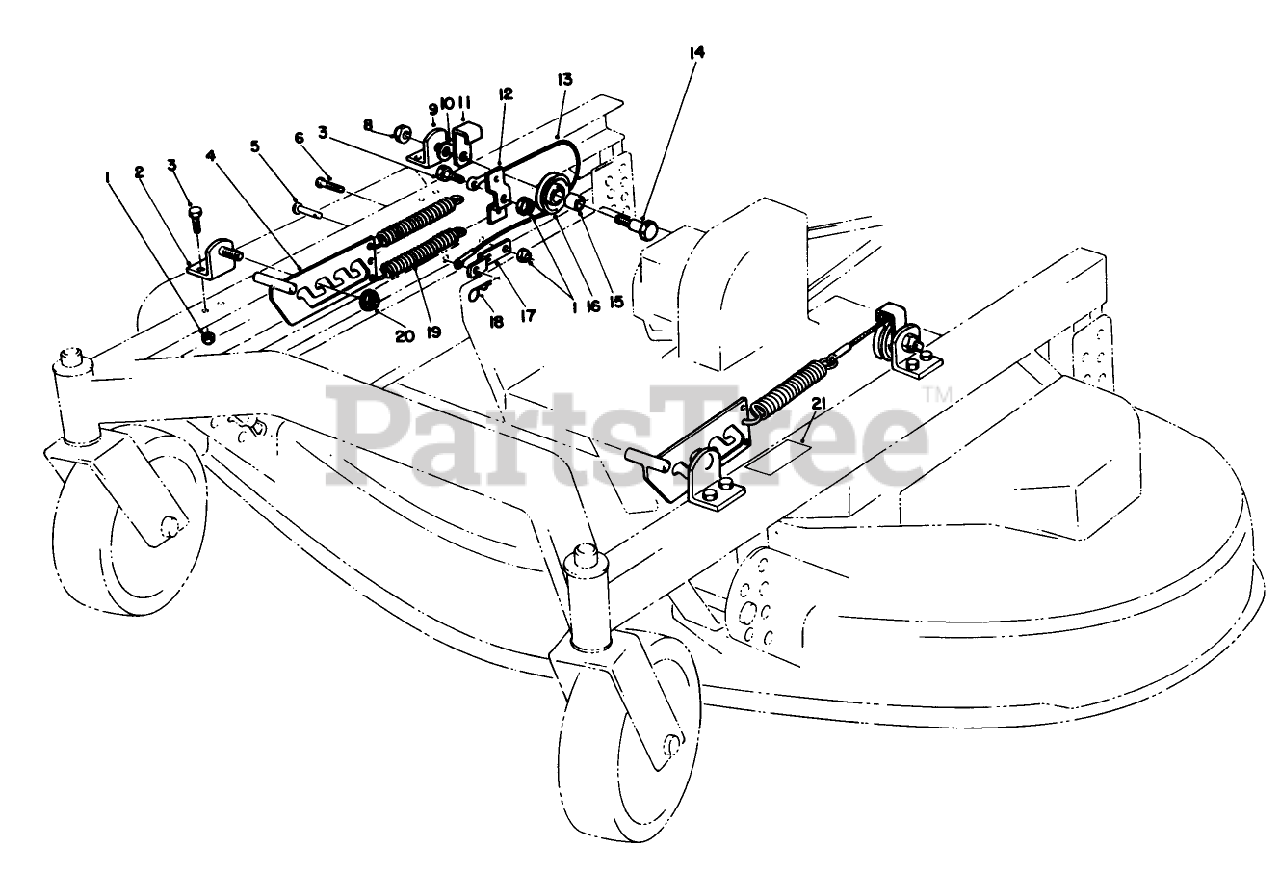

FLOTATION KIT MODEL NO. 30759 (OPTIONAL) (FOR CUTTING UNITS MODEL NO. 30544 & 30752) Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 56-3340

Bracket-Control
(Superseded to 56-3340-01)

$35.99

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 56-3330

Control-Tension
(Superseded to 56-3330-01)

$87.99

$

Usually ships in 3-6 days

0

5

Toro 283-26

PIN

$4.99

$

Usually ships in 3-6 days

0

6

Toro 3258-11

1/4-20 X 5/8 RD HD SC

$

$

Not available

8

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

9

Toro 56-3360

Bracket-Pulley
(Superseded to 56-3360-01)

$

$

Not available

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

11

Toro 56-2780

CABLE RETAINER

$

$

Not available

12

Toro 59-5390

SPRING BRACKET

$

$

Not available

13

Toro 56-3350

CABLE

$75.99

$

Usually ships in 3-6 days

0

14

Toro 59-5400

BOLT-SHOULDER

$61.99

$

Usually ships in 3-6 days

0

15

Toro 256-159

BUSHING

$28.99

$

Usually ships in 3-6 days

0

16

Toro 3-8775

Pulley Assembly (Incl. Ref. #15)

$

$

Not available

17

Toro 56-3380

Bracket-Anchor
(Superseded to 56-3380-01)

$

$

Not available

18

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

19

Toro 56-2770

EXTENSION SPRING

$27.99

$

Usually ships in 3-6 days

0

20

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

21

Toro 55-4300

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0
