30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) GRASS COLLECTION SYSTEM MODEL NO. 30751 (OPTIONAL) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

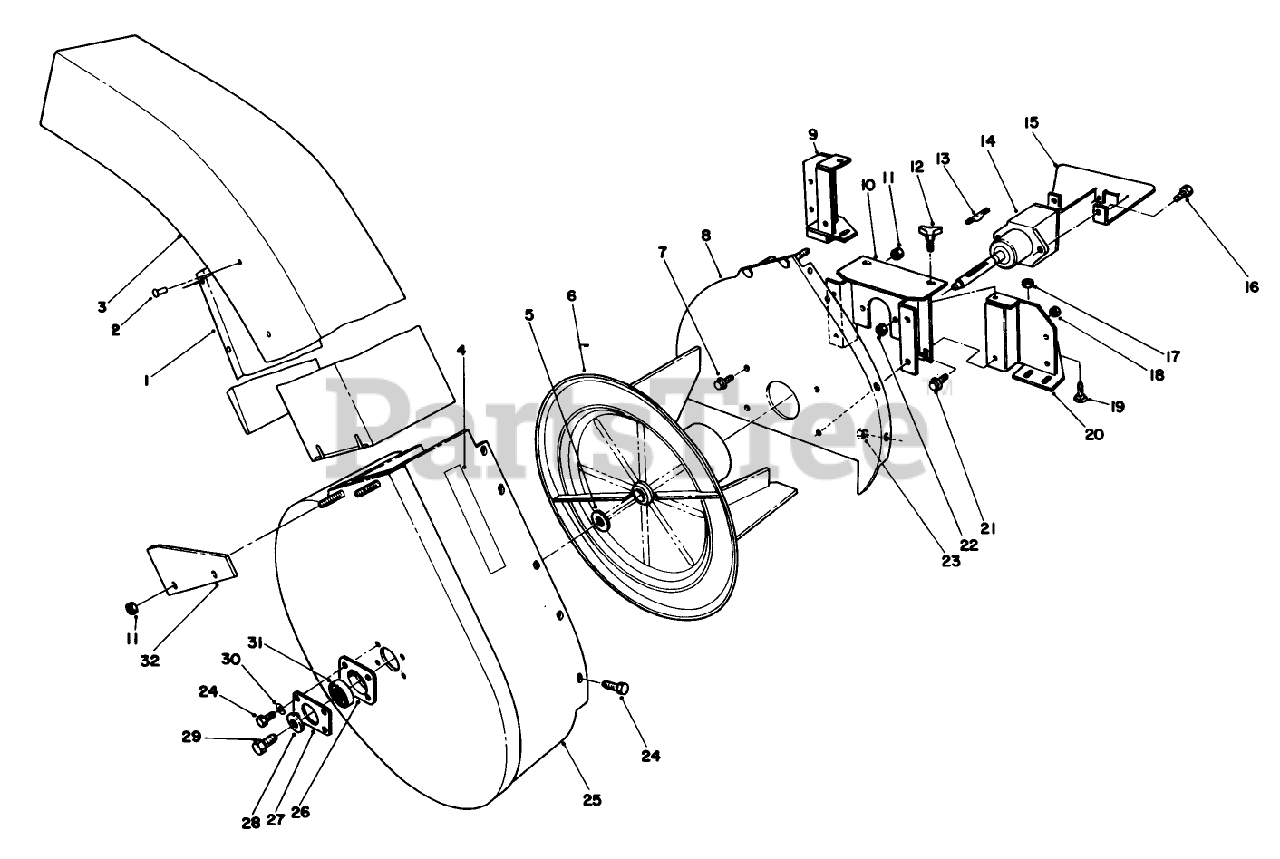

GRASS COLLECTION SYSTEM MODEL NO. 30751 (OPTIONAL) Parts Diagram

  • Title

1

Toro 56-4630

Deflector
(Superseded to 56-4630-03)

$

$

Not available

2

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

3

Toro 56-5220

Chute Assembly (Incl. Ref. #1 & 2)

$

$

Not available

4

Toro 43-1110

Decal-Waming
(Superseded to 82-5510)

$8.49

$

Usually ships in 3-6 days

0

5

Toro 63-9710

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

6

Toro 56-4780

Impeller
(Superseded to 56-4780-03)

$1065.99

$

Usually ships in 3-6 days

0

7

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

8

Toro 56-4760

Mounting Plate
(Superseded to 56-4760-03)

$

$

Not available

9

Toro 62-4360

L/H BLOWER MT/NUT ASM

$

$

Not available

10

Toro 62-4430

Blower Mount
(Superseded to 62-4430-03)

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 62-6520

KNOB

$7.99

$

In Stock, only 2 left!

0

13

Toro 325740

Key

$

$

Currently unavailable

14

Toro 534530

Gear Box Assembly

$

$

Currently unavailable

15

Toro 56-5260

Cover-Gear Box
(Superseded to 56-5260-03)

$

$

Not available

16

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

17

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

18

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

19

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 13

0

20

Toro 56-5040

RH BLWR MT BRKT WA

$

$

Not available

21

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 17

0

22

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

25

Toro 13-0269

BLOWER HOUSING ASM

$691.99

$

Usually ships in 3-6 days

0

26

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 1 left!

0

27

Toro 63-9700

Cover-Plate
(Superseded to 63-9700-03)

$21.99

$

In Stock, only 2 left!

0

28

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 9

0

29

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

30

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

32

Toro 43-0960

Bracket
(Superseded to 43-0960-03)

$20.99

$

Usually ships in 3-6 days

0
