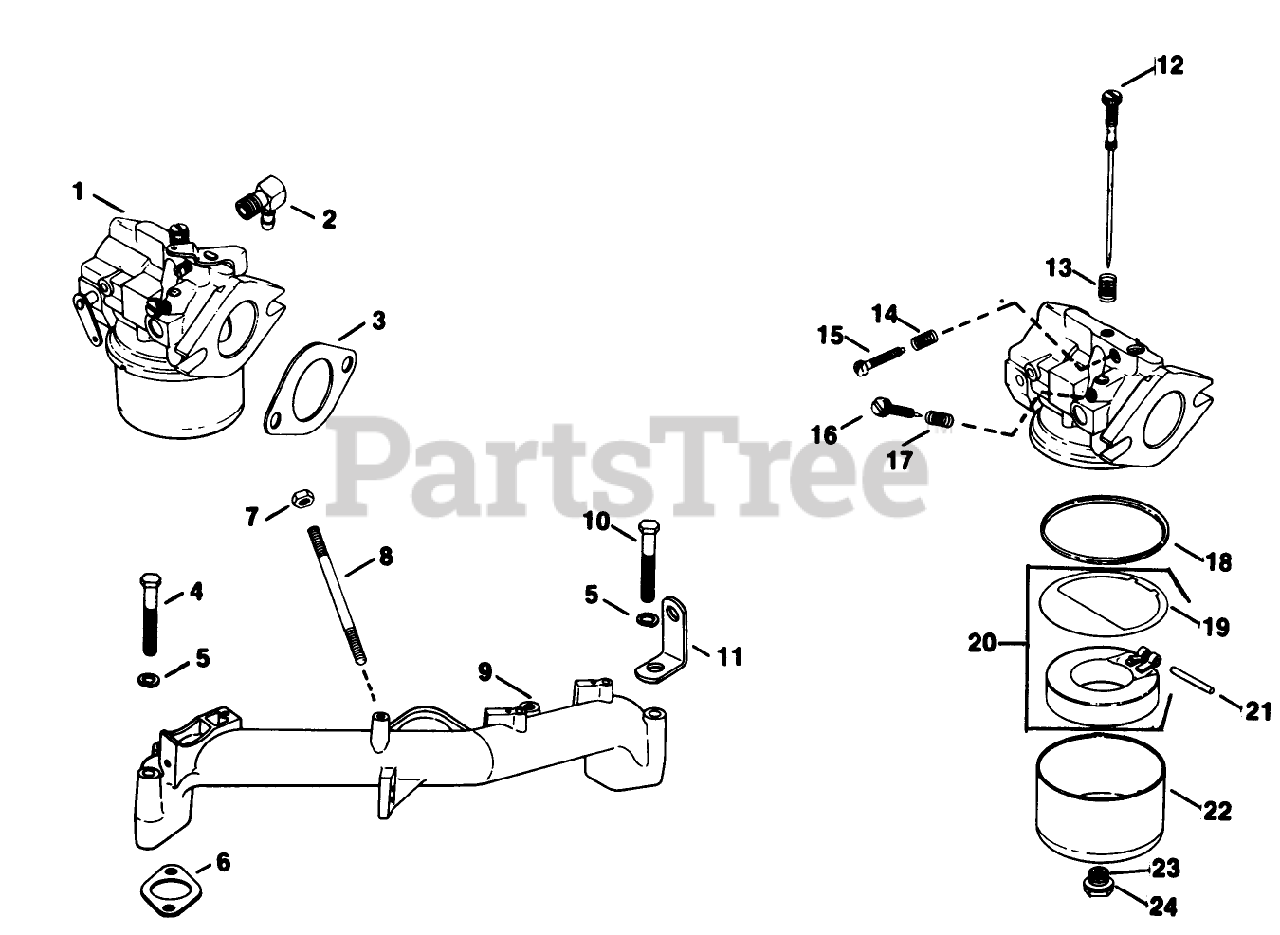

30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) CARBURETOR-ENGINE KOHLER MODEL NO KT17QS TYPE NO 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

CARBURETOR-ENGINE KOHLER MODEL NO KT17QS TYPE NO 24324 Parts Diagram

  • Title

1

Toro 52_053_09

Carburetor Assembly

$

$

Currently unavailable

2

Toro 25_155_02

Connector-90deg.

$

$

Currently unavailable

3

Kohler 271030

Gasket
(Superseded to 271030-S)

$7.49

$

In Stock, Qty 8

0

4

Kohler X-6-8

Screw-H.C.
(Superseded to X-6-8-S)

$

$

Not available

5

Kohler X-21-1

Washer
(Superseded to X-21-1-S)

$3.99

$

Usually ships in 2-5 days

0

6

Toro 52_041_09

Gasket-Intake

$

$

Currently unavailable

7

Kohler X-77-2

Nut
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

8

Kohler X-352-37

Stud
(Superseded to X-352-37-S)

$

$

Not available

9

Toro 52_164_06

Manifold-Intake

$

$

Currently unavailable

10

Kohler X-6-54

grew-H.C.
(Superseded to X-6-8-S)

$

$

Not available

11

Toro 52_445_02

Strap-Lifting

$

$

Currently unavailable

12

Toro 52_103_01

Needle-Main Fuel Adj.

$

$

Currently unavailable

13

Kohler 200383

Spring-Main
(Superseded to 200383-S)

$7.49

$

In Stock, only 1 left!

0

14

Kohler 232555

Spring-Idle Speed
(Superseded to 232555-S)

$10.99

$

In Stock, only 1 left!

0

15

Kohler 232556

Screw
(Superseded to 232556-S)

$8.49

$

Usually ships in 2-5 days

0

16

Kohler 277210

Needle-Idle Adj.
(Superseded to 277210-S)

$

$

Not available

17

Kohler 200380

Spring-Idle
(Superseded to 200380-S)

$8.49

$

Usually ships in 2-5 days

0

18

Kohler 200375

Gasket-Bowl
(Superseded to 200375-S)

$

$

Not available

19

Toro 25_041_02

Gasket-Bowl Baffle

$

$

Currently unavailable

20

Toro 25_757_03

Kit-Float

$

$

Currently unavailable

21

Kohler 200376

Pin-Float Hinge
(Superseded to 200376-S)

$6.49

$

In Stock, only 1 left!

0

22

Kohler 235448

Bowl
(Superseded to 235448-S)

$24.99

$

Usually ships in 2-5 days

0

23

Toro 47_100_06

Screw-Bowl Retainer

$

$

Currently unavailable

24

Kohler 200372

Gasket-Bowl Screw
(Superseded to 200372-S)

$3.49

$

In Stock, only 1 left!

0

Toro 25_757_02

Kit-Carburetor Repair

$

$

Currently unavailable
