30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) OIL PUMP-ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

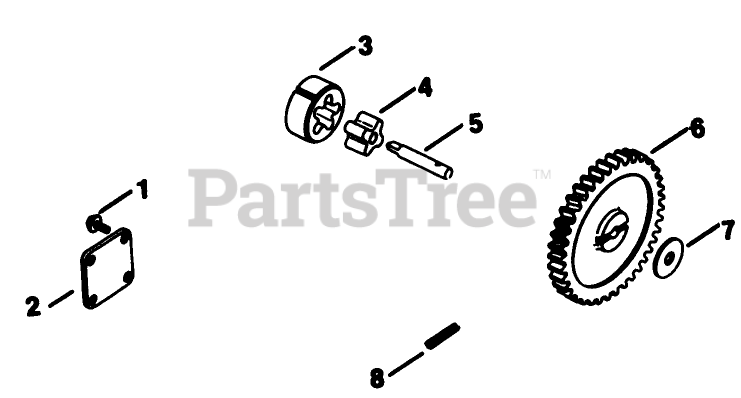

OIL PUMP-ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title

1

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$

$

Not available

2

Toro 52_096_03

Cover-Oil Pump

$

$

Currently unavailable

3

Toro 51_414_02

Rotor-Outer

$

$

Currently unavailable

4

Toro 51_414_01

Rotor-Inner

$

$

Currently unavailable

5

Toro 52_144_05

Shaft-0il Pump

$

$

Currently unavailable

6

Toro 52_043_05

Gear-0il Pump

$

$

Currently unavailable

7

Toro 52_422_01

Spacer-Shim

$

$

Currently unavailable

8

Kohler X-280-25

Pin-Roll
(Superseded to X-280-25-S)

$3.49

$

In Stock, Qty 11
