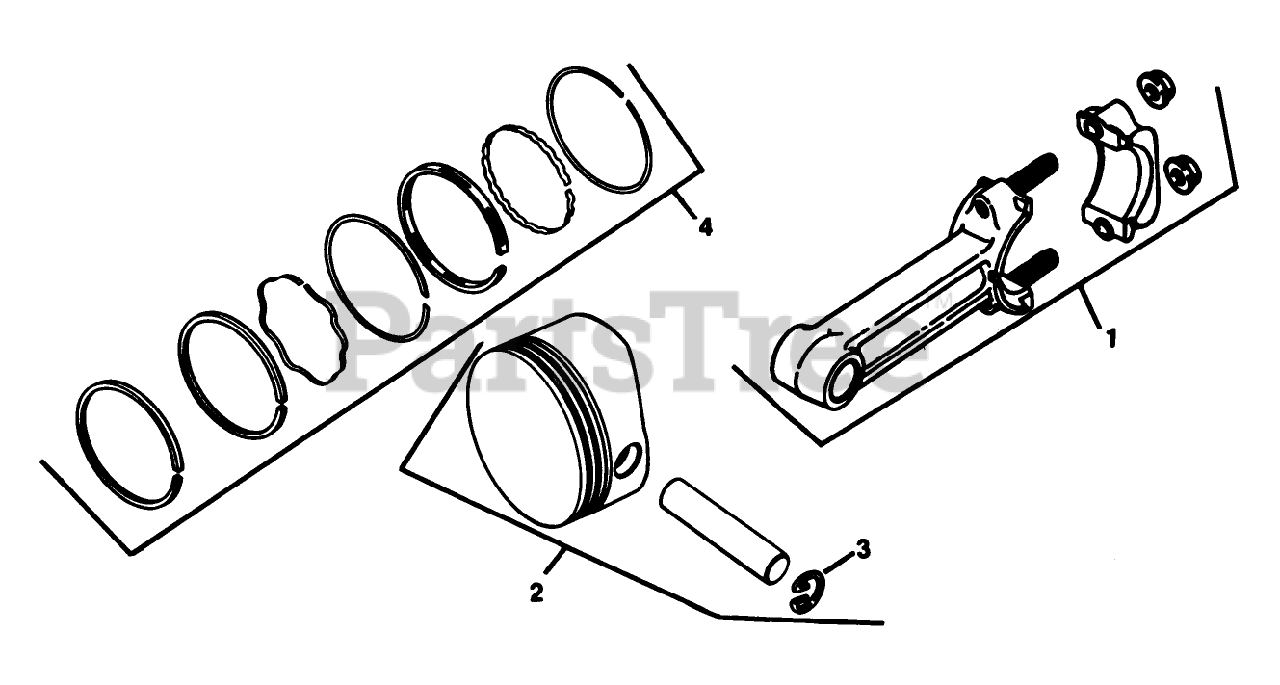

30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006000401) (1986) Piston Rod-Engine Kohler Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

Piston Rod-Engine Kohler Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

  • Title

1

Connecting Rod (Std.) Before S/N 15089863 Use 5206761 After S/N 15089862 Use 5206767

$

$

Not available

1

Connecting Rod (.010) Before S/N 15089863 Use 5206762 After S/N 15089862 Use 5206768

$

$

Not available

2

Piston w/Ring Set (Std.) Before S/N 15089863 Use 5287401 After S/N 15089862 Use 5287411

$

$

Not available

2

Piston w/Ring Set (.003) Before S/N 15089863 Use 5287402 After S/N 15089862 Use 5287412

$

$

Not available

2

Piston w/Ring Set (.010) Before S/N 15089863 Use 5287403 After S/N 15089862 Use 5287413

$

$

Not available

2

Piston w/Ring Set (.020) Before S/N 15089863 Use 5287404 After S/N 15089862 Use 5287414

$

$

Not available

2

Piston w/Ring Set (.030) Before S/N 15089863 Use 5287405 After S/N 15089862 Use 5287415

$

$

Not available

3

Toro 23004

Retainer-Piston Pin

$

$

Currently unavailable

4

Ring Set (Std. .003) Before S/N 15089863 Use 5210801 After S/N 15089862 Use 5210809

$

$

Not available

4

Ring Set (.010) Before S/N 15089863 Use 5210802 After S/N 15089862 Use 5210810

$

$

Not available

4

Ring Set (.020) Before S/N 15089863 Use 5210803 After S/N 15089862 Use 5210811

$

$

Not available

4

Ring Set (.030) Before S/N 15089863 Use 5210804 After S/N 15089862 Use 5210812

$

$

Not available
