30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000402 - 006999999) (1986) Engine Assembly Parts Diagram

Groundsmaster Rear-Engine Riding Mower

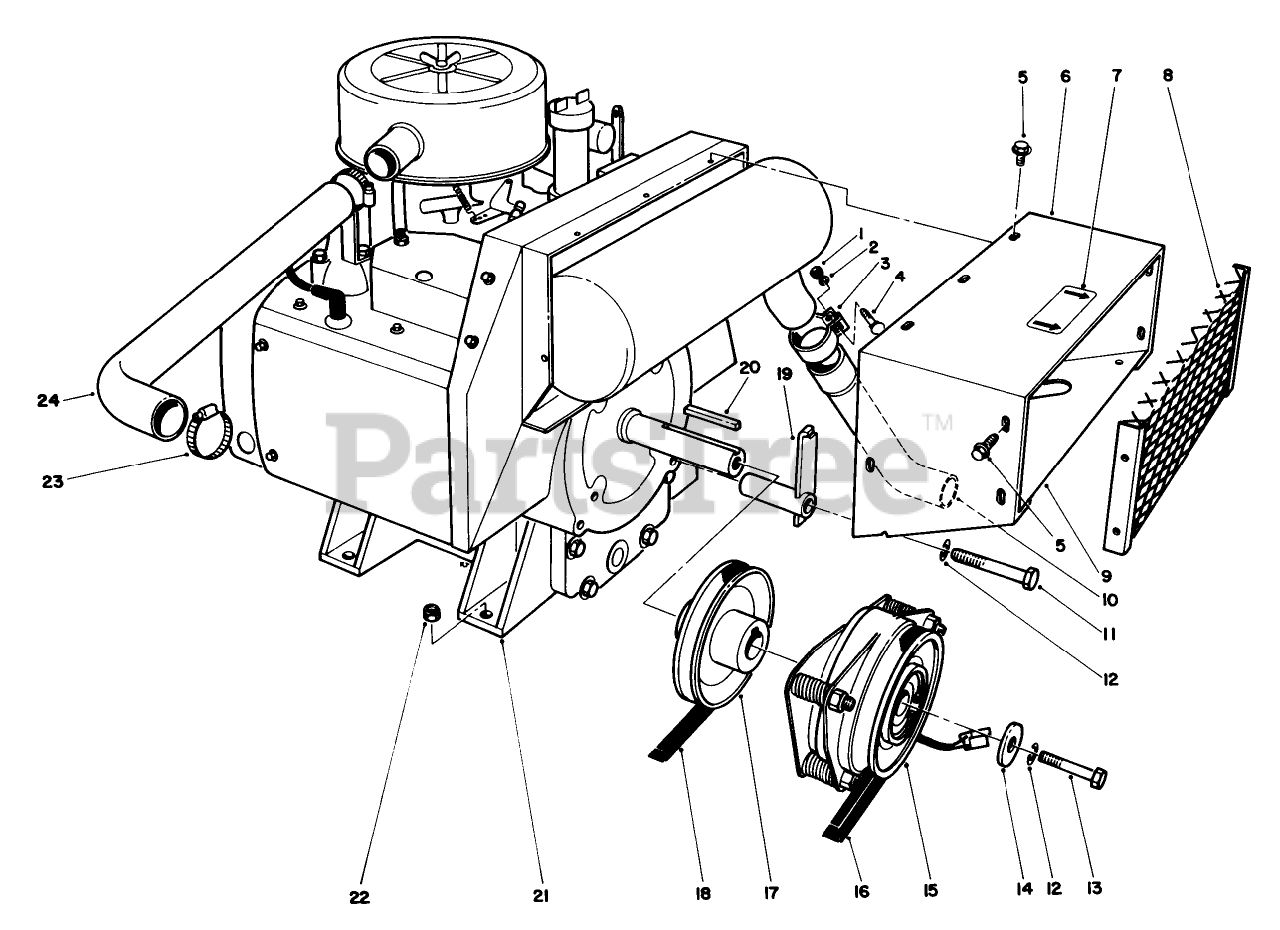

Engine Assembly Parts Diagram

  • Title

1

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, only 4 left!

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 55-8660

DISCONTINUED

$

$

Not available

4

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, only 3 left!

0

5

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

6

Toro 54-2480

ENGINE DUCT WA *B

$153.99

$

Usually ships in 3-6 days

0

7

Toro 28-1530

See Supercession: 63-8440
(Superseded to 63-8440)

$

$

Not available

8

Toro 54-0950

See Supercession: 92-1790
(Superseded to 92-1790)

$805.99

$

Usually ships in 3-6 days

0

9

Toro 54-0990

DISCONTINUED

$

$

Not available

10

Toro 54-2290

DISCONTINUED

$

$

Not available

11

Toro 324-11

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

12

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3212-24

SCREW-HH

$

$

Not available

14

Toro 44-8160

DISCONTINUED

$

$

Not available

15

Toro 54-0220

BRAKE CLUTCH ASM

$1049.99

$

Usually ships in 3-6 days

0

16

Toro 54-1380

V-BELT, JACKSHAFT

$45.99

$

Usually ships in 3-6 days

0

17

Toro 54-233C

Pulley-Engine

$

$

Currently unavailable

18

Toro 54-1390

V-BELT, TRACTION

$40.99

$

Usually ships in 3-6 days

0

19

Toro 54-2160

DISCONTINUED
(Superseded to 54-2160-03)

$

$

Not available

20

Toro 5-0930

KEY

$

$

Not available

21

Toro 54-0060

DISCONTINUED

$

$

Not available

22

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

23

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

24

Toro 54-1780

DISCONTINUED

$

$

Not available
