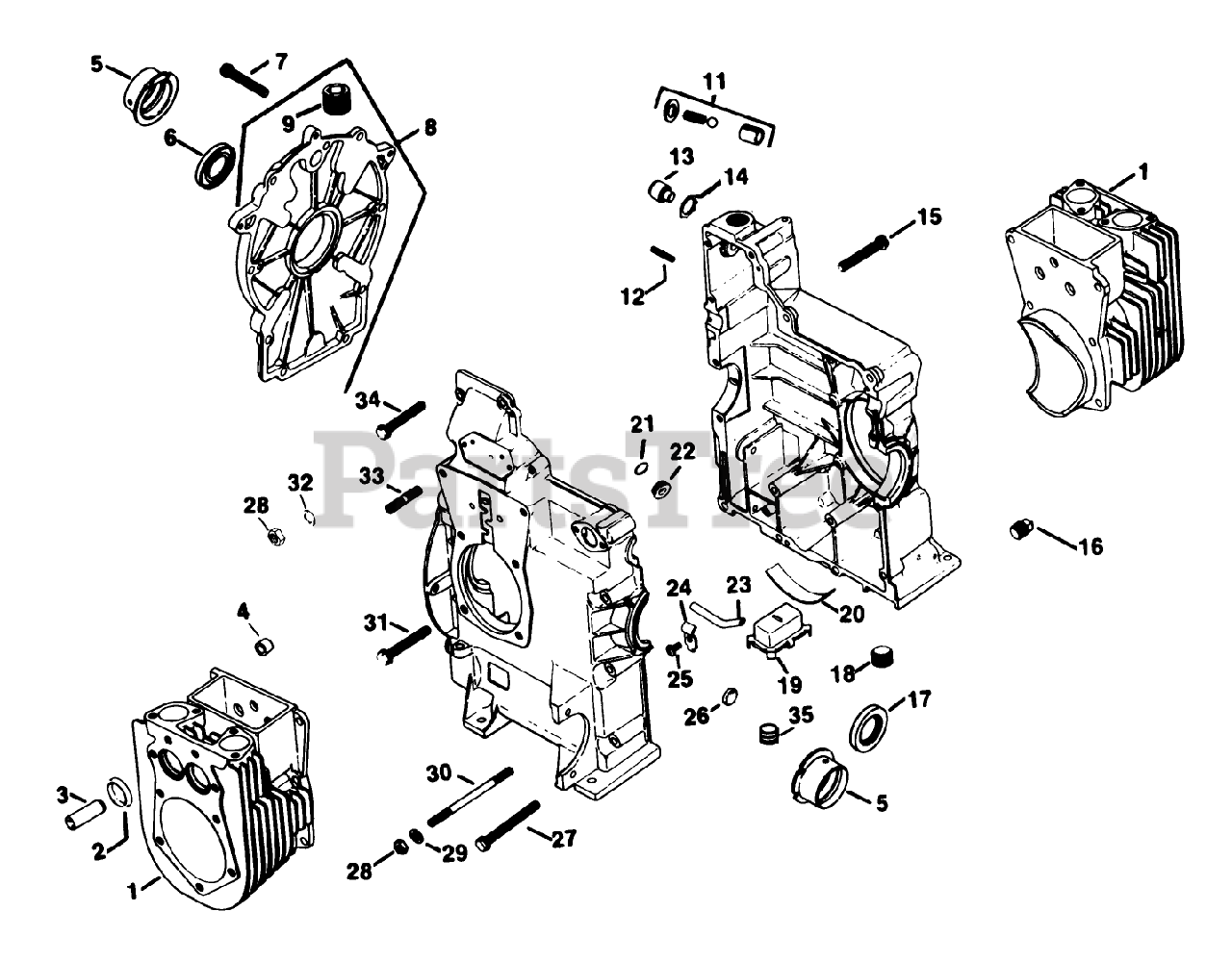

30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) Crankcase Kohler Engine Model No. Kt17qs Type No. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

Crankcase Kohler Engine Model No. Kt17qs Type No. 24324 Parts Diagram

  • Title

1

Toro 5275581

Kit-Cylinder Barrel

$

$

Currently unavailable

2

Toro 230265

Insert

$

$

Not available

3

Toro 52_316_06

Guide-Valve

$

$

Currently unavailable

4

Toro 5215804

Bushing-Locating

$

$

Currently unavailable

5

Toro 52_030_10

Bearing-Sleeve

$

$

Currently unavailable

Toro 52_030_11

Bearing-Sleeve .010"

$

$

Currently unavailable

Toro 52_030_12

Bearing-Sleeve .020"

$

$

Currently unavailable

6

Toro X-583-5

Seal-RearOil

$

$

Currently unavailable

7

Toro X-802-9

Screw-Wash Head

$

$

Currently unavailable

8

Toro 52_755_57

Kit-Closure Plate (Incl. Ref. #13)

$

$

Currently unavailable

9

Toro X-75-23

Plug

$

$

Currently unavailable

11

Toro 52_755_50

Kit-Oil Relief

$

$

Currently unavailable

12

Toro X-280-10

Pin-Roll

$

$

Currently unavailable

13

Toro 52_078_05

Shaft-Governor

$

$

Currently unavailable

14

Toro X-269-43

Ring-Retaining

$

$

Currently unavailable

15

Toro 25_086_12

Screw-Hex Flange

$

$

Currently unavailable

16

Toro X-75-10

Plug

$

$

Currently unavailable

17

Toro 52_032_10

Seal-ReAR Oil

$

$

Currently unavailable

18

Toro X-75-32

Plug-Hex

$

$

Currently unavailable

19

Toro 5209503

Housing-Oil

$

$

Currently unavailable

20

Toro 5223702

Clip-Spring

$

$

Currently unavailable

21

Toro 52_141_02

0-Ring

$

$

Currently unavailable

22

Toro 52_139_08

Plug

$

$

Currently unavailable

23

Toro 52_123_10

Tube-Oil Pickup

$

$

Currently unavailable

24

Toro 52_237_05

Clamp

$

$

Currently unavailable

25

Toro X-67-64

Screw

$

$

Currently unavailable

26

Toro X-702-15

Plug-Cup

$

$

Currently unavailable

27

Toro 25_086_11

Screw-Hex Flange

$

$

Currently unavailable

28

Toro X-82-2

Nut

$

$

Currently unavailable

29

Toro 41_468_01

Washer-Flat

$

$

Currently unavailable

30

Toro X-352-33

Stud

$

$

Currently unavailable

31

Toro 25_086_13

Screw-Hex Flange

$

$

Currently unavailable

32

Toro 52_468_12

Washer-Flat

$

$

Currently unavailable

33

Toro 52_072_12

Stud

$

$

Currently unavailable

34

Toro 25_086_10

Screw-Hex Flange

$

$

Currently unavailable

35

Toro 52_139_07

Plug-Pip Hex Ctsk

$

$

Currently unavailable

Toro 52_522_94

Block-Short

$

$

Currently unavailable

Toro 52_755_93

Gasket-Set, w/Seals

$

$

Currently unavailable
