30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) Gear Box Assembly Model No. 1100-010 (for Cutting Units Model No. 30753 30768) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

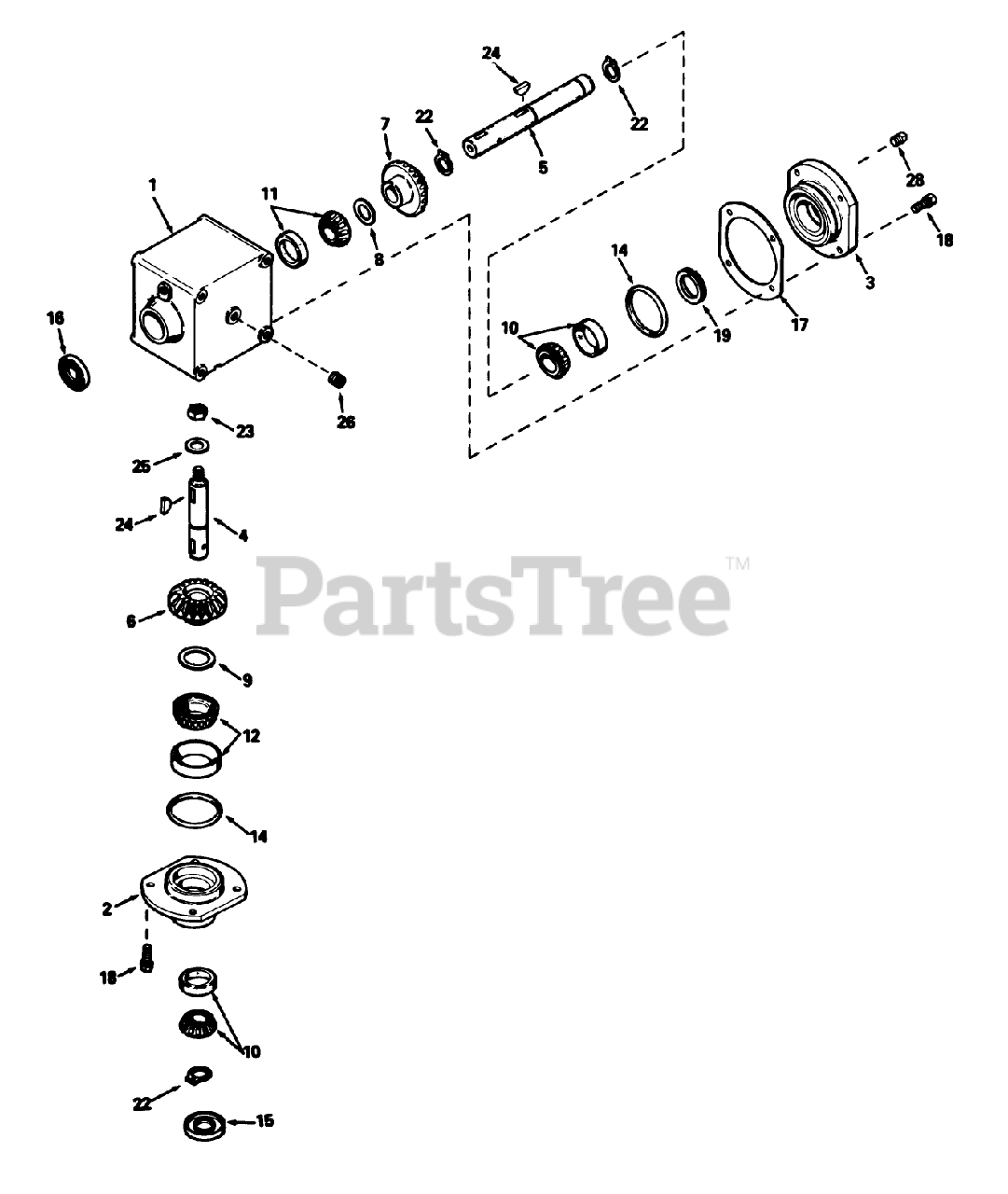

Gear Box Assembly Model No. 1100-010 (for Cutting Units Model No. 30753 30768) Parts Diagram

  • Title
1

Toro 770076

Housing

$

$

Currently unavailable

2

Toro 786104A

Cap-Retainer

$

$

Currently unavailable

3

Toro 786106

Cap-Retainer

$

$

Currently unavailable

4

Toro 776224

Shaft-Input

$

$

Currently unavailable

5

Toro 776223

Shaft-Output

$

$

Currently unavailable

6

Toro 778167

Gear-Bevel 25T

$

$

Currently unavailable

7

Toro 778171

Gear-Bevel 26T

$

$

Currently unavailable

8

Toro 780131

Shim (1.5" OD x 1.016" ID x .002")

$

$

Currently unavailable

9

Toro 780138

Shim (2" OD x 1.531" ID x .002")

$

$

Currently unavailable

10

Toro 780132

Bearing Cup Assembly

$

$

Currently unavailable

11

Toro 780132

Bearing Cup Assembly

$

$

Currently unavailable

12

Toro 780134

Bearing Cup Assembly

$

$

Currently unavailable

14

Toro 788063

ORing

$

$

Currently unavailable

15

Toro 788064

Seal-Oil

$

$

Currently unavailable

16

Toro 788065

Seal-Oil

$

$

Currently unavailable

17

Toro 780136

Shim-Oil

$

$

Currently unavailable

18

Toro 792037

Screw-Hex Hd.

$

$

Currently unavailable

19

Toro 780137

Ring-Load

$

$

Currently unavailable

22

Toro 792113

Ring-Retaining

$

$

Currently unavailable

23

Toro 792110

Jam Nut

$

$

Currently unavailable

24

Toro 792114

Key-Woodruff

$

$

Currently unavailable

25

Toro 792115

Washer-Flat

$

$

Currently unavailable

26

Toro 792116

Plug-Pipe

$

$

Currently unavailable

28

Toro 28534

Plug-Pipe

$

$

Not available
