30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) PISTON & ROD-GROUP 22 ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

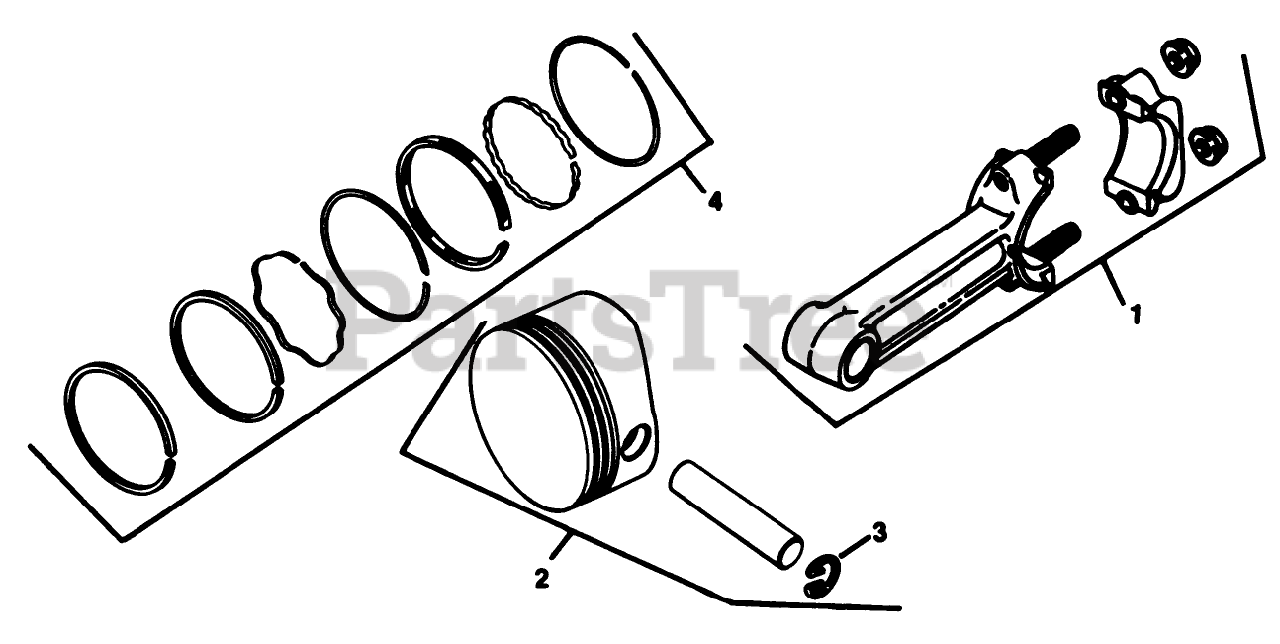

PISTON & ROD-GROUP 22 ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title
1

Toro 52_067_67

Rod-Connecting Std.

$

$

Currently unavailable

1

Toro 52_067_68

Rod-Connecting .010"

$

$

Currently unavailable

2

Toro 52_874_11

Piston & Ring Set Std.

$

$

Currently unavailable

2

Toro 52_874_12

Piston & Ring Set .003"

$

$

Currently unavailable

2

Toro 52_874_13

Piston & Ring Set .010"

$

$

Currently unavailable

2

Toro 52_874_14

Piston & Ring Set .020"

$

$

Currently unavailable

2

Toro 52_874_15

Piston & Ring Set .030"

$

$

Currently unavailable

3

Toro 230004

Retainer, Pin

$

$

Currently unavailable

4

Toro 52_108_09

Ring Set Std. & .003"

$

$

Currently unavailable

4

Toro 52_108_10

RingSet.010"

$

$

Currently unavailable

4

Toro 52_108_11

Ring Set .020"

$

$

Currently unavailable

4

Toro 52_108_12

Ring Set.030"

$

$

Currently unavailable
