30761 - Toro 44" Two Stage Snow Thrower for ProLine 118/120 (SN: 049000001 - 049999999) (1994) HOUSING ASSEMBLY Parts Diagram

44" Two Stage Snow Thrower for ProLine 118/120

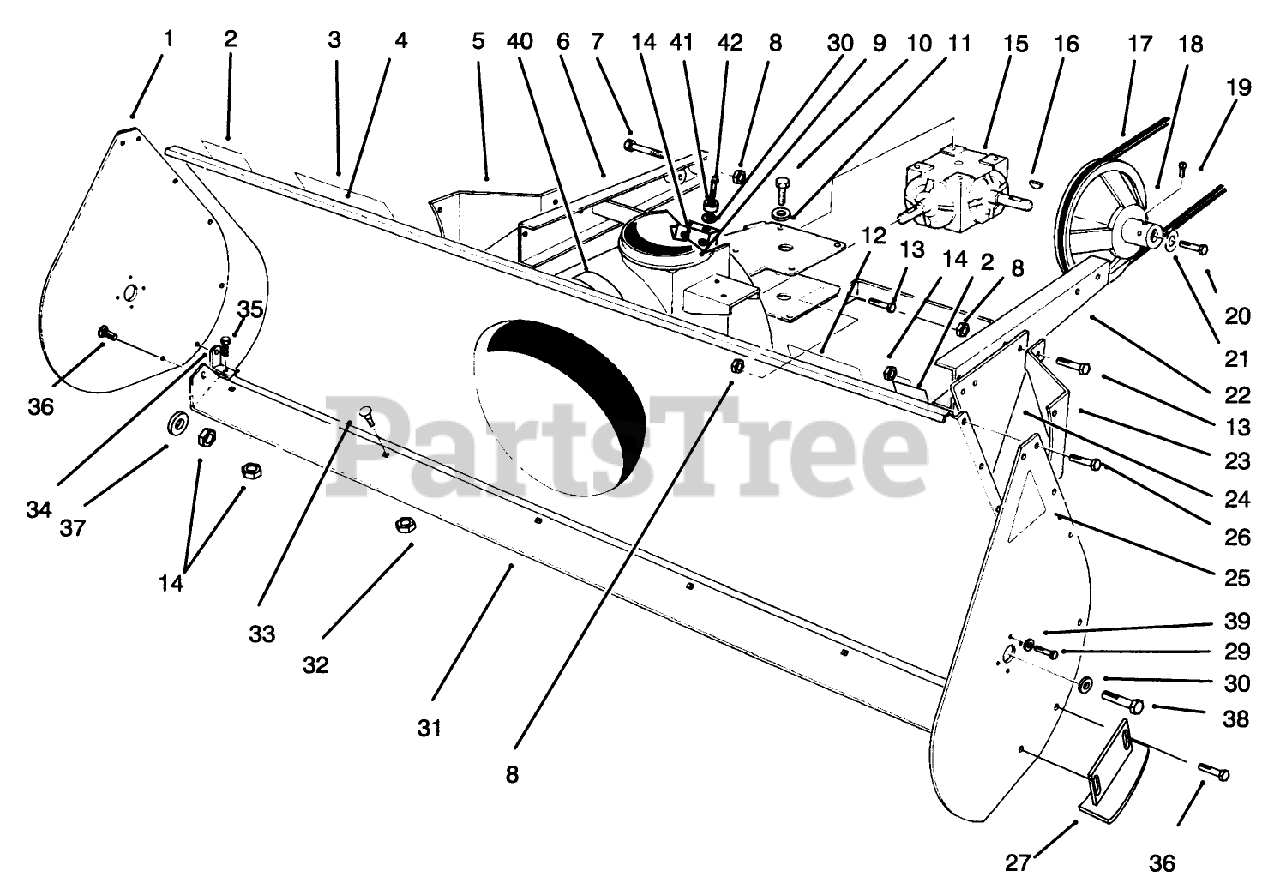

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 57-3510

Plate-Side
(Superseded to 57-3510-01)

$

$

Not available

2

Toro 63-2380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

3

Toro 92-8652

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

4

Toro 92-8660

ASM - AUGER HSG W/DECALS

$3090.99

$

Usually ships in 3-6 days

0

5

Toro 57-3570

RH EXTENSION PLT R

$

$

Not available

6

Toro 57-3710

RH EXT BAR WA R

$

$

Not available

7

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 25-5170

CHUTE RING

$

$

Not available

10

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

11

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

In Stock, only 3 left!

0

12

Toro 92-8019

DECAL - WARNING

$

$

Not available

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 61-8650

GEARBOX

$2998.99

$

Usually ships in 3-6 days

0

16

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

17

Toro 57-3650

V-BELT

$59.99

$

Usually ships in 3-6 days

0

18

Toro 57-3640

DRIVE PULLEY

$1018.99

$

Usually ships in 3-6 days

0

19

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

20

Toro 30-1070

BOLT 60183

$

$

Not available

21

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

22

Toro 57-3520

LH EXT BAR WA R

$

$

Not available

23

Toro 57-3560

LH EXTENSION PLT R

$

$

Not available

24

Toro 57-3550

SKID MTG PLT R

$

$

Not available

25

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

26

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 78-0800

Skid
(Superseded to 78-0800-01)

$83.99

$

Usually ships in 3-6 days

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

31

Toro 79-6670

Blade-Scraper
(Superseded to 99-2303-01)

$177.99

$

Usually ships in 3-6 days

0

32

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

33

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 11

0

34

Toro 57-9890

BLADE SUPPORT BRKT R
(Superseded to 99-2304-03)

$15.99

$

Usually ships in 3-6 days

0

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

37

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

38

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

39

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 74-2080

DECAL-PROLINE

$

$

Not available

41

Toro 108889

BUMPER

$21.99

$

Usually ships in 3-6 days

0

42

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0
