30767 - Toro 52" Side-Discharge Mower Deck for ProLine 118 (SN: 079000001 - 079999999) (1997)

52" Side-Discharge Mower Deck for ProLine 118

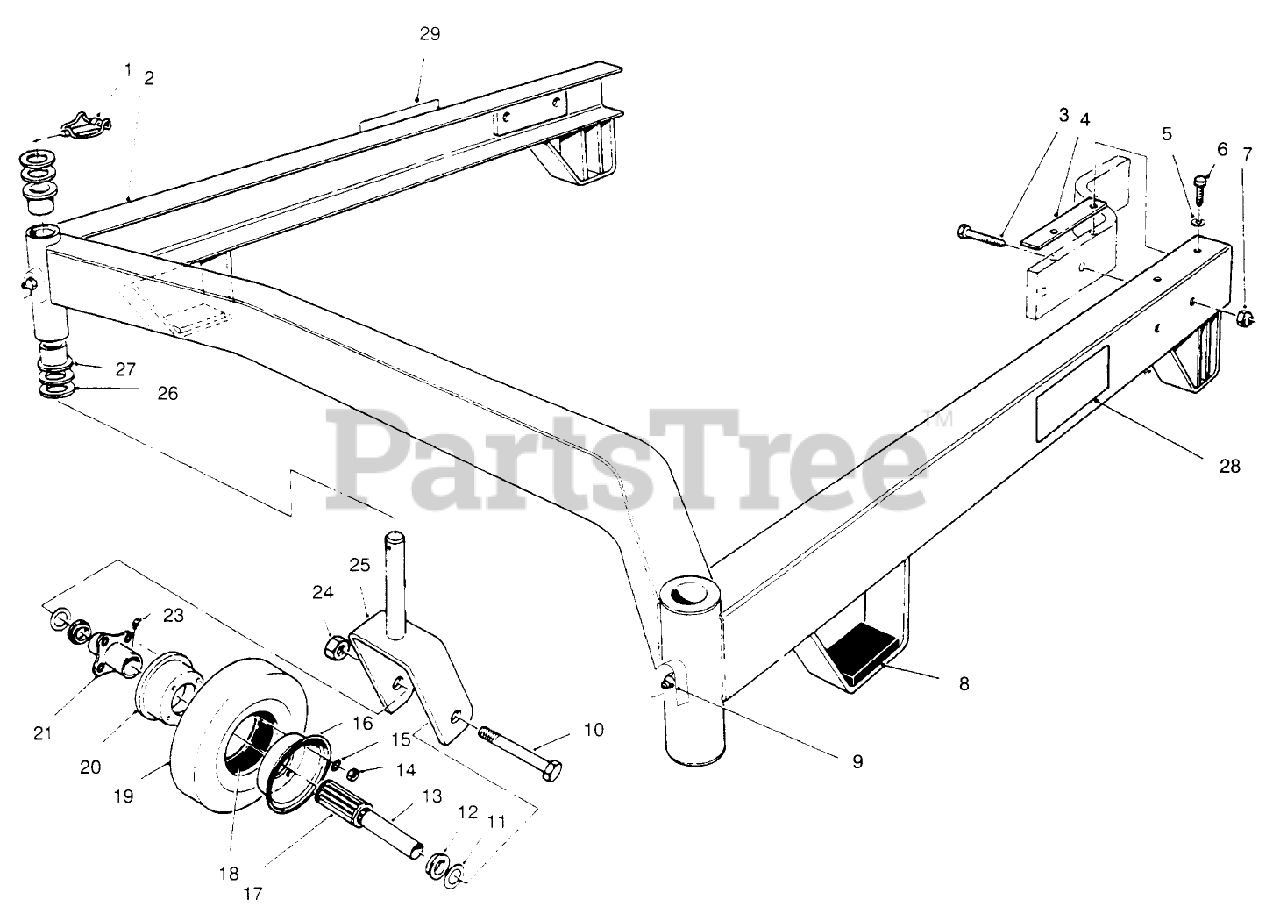

30767 - Toro 52" Side-Discharge Mower Deck for ProLine 118 (SN: 079000001 - 079999999) (1997) > Parts Diagrams (6) > CARRIER FRAME

  • Title
3290-384

1

PIN-LYNCH

Part# 3290-384

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.01

94-4165

2

SUSPENSION ASM

Part# 94-4165

OEM Warranty Repair Part for Toro

Not available

323-9

3

SCREW-HH

Part# 323-9

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.91

62-6980

4

SHIM-CARRIER

Part# 62-6980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.21

3256-24

5

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.50

3234-25

6

SCREW-HHF

Part# 3234-25

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.57

32153-2

7

NUT-LOCK, SIDE

Part# 32153-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.48

74-0340

8

CUSHION-RUBBER

Part# 74-0340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.63

302-5

9

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.43

325-19

10

SCREW-HH

Part# 325-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.90

3256-6

11

WASHER-FLAT

Part# 3256-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

62-5580

12

BEARING-OUTSIDE

Part# 62-5580

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.23

68-8980

13

SPANNER-TIRE

Part# 68-8980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.98

3219-2

14

NUT-HEX

Part# 3219-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.73

3253-4

15

WASHER-LOCK

Part# 3253-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.66

68-8930

16

MALE WHEEL HALF

Part# 68-8930

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.95

62-5570

17

BEARING-ROLLER

Part# 62-5570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.35

68-8950

18

TUBE-INNER (W/VALVE)

Part# 68-8950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.59

68-8960

19

TIRE

Part# 68-8960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $42.32

68-8920

20

FEMALE WHEEL HALF

Part# 68-8920

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.95

68-8940

21

HUB-CENTER

Part# 68-8940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.80

302-11

23

FITTING-LUBE, 45 DEG

Part# 302-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.00

32153-5

24

NUT-HEX

Part# 32153-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

68-8900

25

Castor Fork

Part# 68-8900 (Superseded to 68-8900-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $80.84

3-6781

26

WASHER-THRUST

Part# 3-6781

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.90

94-1271

27

Bushing

Part# 94-1271

OEM Warranty Repair Part for Toro

Currently unavailable

Ref

28

Spacer

Part# Ref

OEM Warranty Repair Part for Toro

Currently unavailable

Ref

29

Spacer

Part# Ref

OEM Warranty Repair Part for Toro

Currently unavailable

68-8970

Caster Wheel Assembly (Incl. Ref. #11-21)

Part# 68-8970

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $88.31
