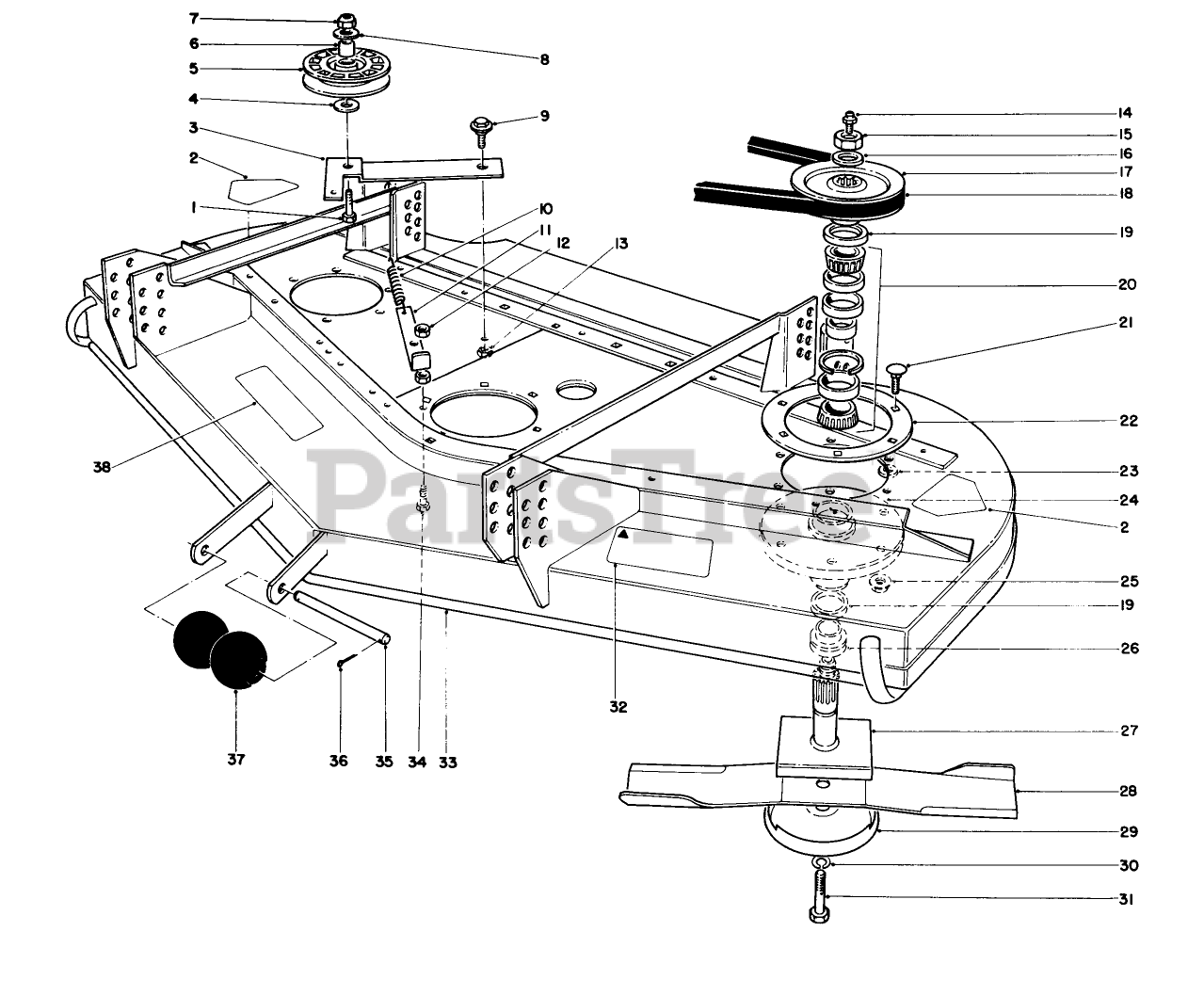

30768 - Toro 52" Rear-Discharge Mower Deck (SN: 006000001 - 006999999) (1986) Cutting Unit Assembly Parts Diagram

52" Rear-Discharge Mower Deck

Cutting Unit Assembly Parts Diagram

  • Title

1

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

3

Toro 56-5520

See Supercession: 56-5520-01
(Superseded to 56-5520-01)

$

$

Not available

4

Toro 31-3220

DISCONTINUED

$

$

Not available

5

Toro 52-4580

See Supercession: 99-5678
(Superseded to 99-5678)

$62.99

$

Usually ships in 3-6 days

0

6

Toro 52-8860

Bushing

$

$

Currently unavailable

7

Toro 3296-26

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

8

Toro 52-8850

Washer

$

$

Currently unavailable

9

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

10

Toro 54-1160

SPRING-EXTENSION, DECK

$47.99

$

In Stock, only 2 left!

0

11

Toro 56-5540

See Supercession: 56-5540-01
(Superseded to 56-5540-01)

$38.99

$

Usually ships in 3-6 days

0

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 6

0

15

Toro 32146-20

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

16

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

17

Toro 56-2510

See Supercession: 56-2510-03
(Superseded to 56-2510-03)

$200.99

$

Usually ships in 3-6 days

0

18

Toro 56-5560

V-BELT, DECK

$116.99

$

In Stock, only 1 left!

0

19

Toro 253-139

SEAL-OIL

$12.99

$

In Stock, Qty 17

0

20

Toro 46-8530

BEARING ASM

$94.99

$

In Stock, Qty 17

0

21

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

22

Toro 27-7680

See Supercession: 27-7680-03
(Superseded to 27-7680-03)

$85.99

$

Usually ships in 3-6 days

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 27-0880

See Supercession: 61-4160
(Superseded to 61-4160)

$131.99

$

In Stock, only 4 left!

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 27-0950

SPACER

$31.99

$

Usually ships in 3-6 days

0

27

Toro 27-0920

SHAFT

$159.99

$

In Stock, only 1 left!

0

28

Toro 27-0990

See Supercession: 27-0990-03
(Superseded to 27-0990-03)

$20.99

$

In Stock, Qty 20+

0

29

Toro 27-1000

See Supercession: 72-9361
(Superseded to 72-9361)

$40.99

$

In Stock, only 3 left!

0

30

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

31

Toro 44-2200

SCREW-BLADE

$4.49

$

In Stock, Qty 12

0

32

Toro 56-5670

See Supercession: 68-7260
(Superseded to 68-7260)

$33.99

$

Usually ships in 3-6 days

0

33

Toro 56-5700

DISCONTINUED

$

$

Not available

34

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

35

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 6

0

36

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

37

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 8

0

38

Toro 26-7960

See Supercession: 68-7280
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0
