30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) 52" COUNTER BALANCE KIT PART NO. 70-8090 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

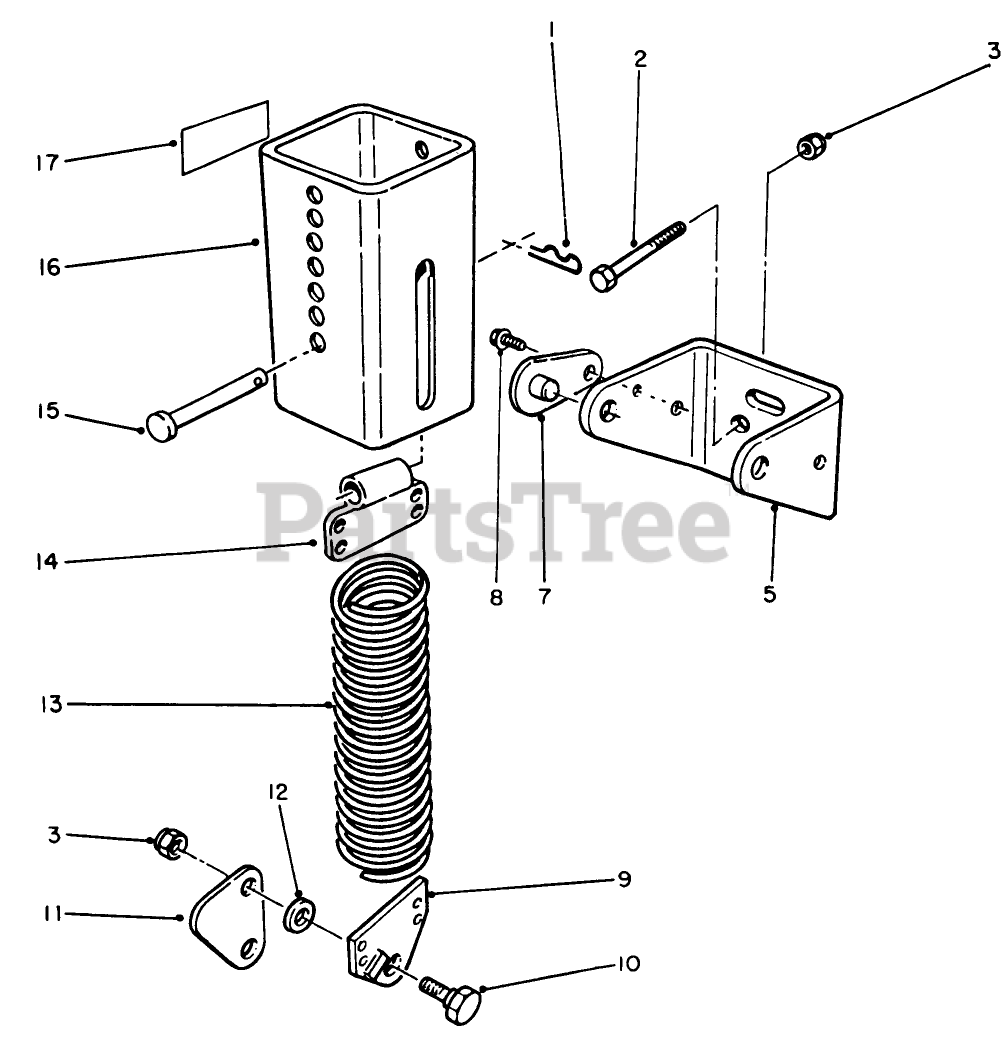

52" COUNTER BALANCE KIT PART NO. 70-8090 Parts Diagram

  • Title

1

Toro 3290-355

PIN-HAIR

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$2.49

$

In Stock, Qty 20+

0

3

Toro 3296-44

NUT-LOCK, NI

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$3.49

$

Usually ships in 3-6 days

0

5

Toro 66-8460

Bracket-Mounting
(Superseded to 66-8460-01)

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$78.99

$

Usually ships in 3-6 days

0

7

Toro 70-7920

PIN-LOCK

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$27.99

$

Usually ships in 3-6 days

0

8

Toro 12-3270

SCREW

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$3.49

$

In Stock, only 2 left!

0

9

Toro 66-8420

End Spring
(Superseded to 66-8420-03)

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$67.99

$

Usually ships in 3-6 days

0

10

Toro 46-3380

BOLT-SHOULDER

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$11.99

$

Usually ships in 3-6 days

0

11

Toro 66-8450

Link Knee
(Superseded to 66-8450-01)

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$27.99

$

Usually ships in 3-6 days

0

12

Toro 3256-24

WASHER-FLAT

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$0.99

$

In Stock, Qty 20+

0

13

Toro 66-8390

Spring-Extension
(Superseded to 66-8390-03)

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$45.99

$

Usually ships in 3-6 days

0

14

Toro 70-7940

End Spring
(Superseded to 70-7940-03)

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$55.99

$

Usually ships in 3-6 days

0

15

Toro 283-69

PIN-CLEVIS

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$10.99

$

In Stock, only 3 left!

0

16

Toro 70-7970

Asm-Spring Cover
(Superseded to 99-1298)

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$

$

Not available

17

Toro 55-4300

DECAL-WARNING

Note: Furnished with 52" cutting units model no. 30555 and 30568.

$13.99

$

Usually ships in 3-6 days

0
