308 (190-308-100) - Cub Cadet 42" Rear PTO Tiller att Main Frame Parts Diagram

42" Rear PTO Tiller

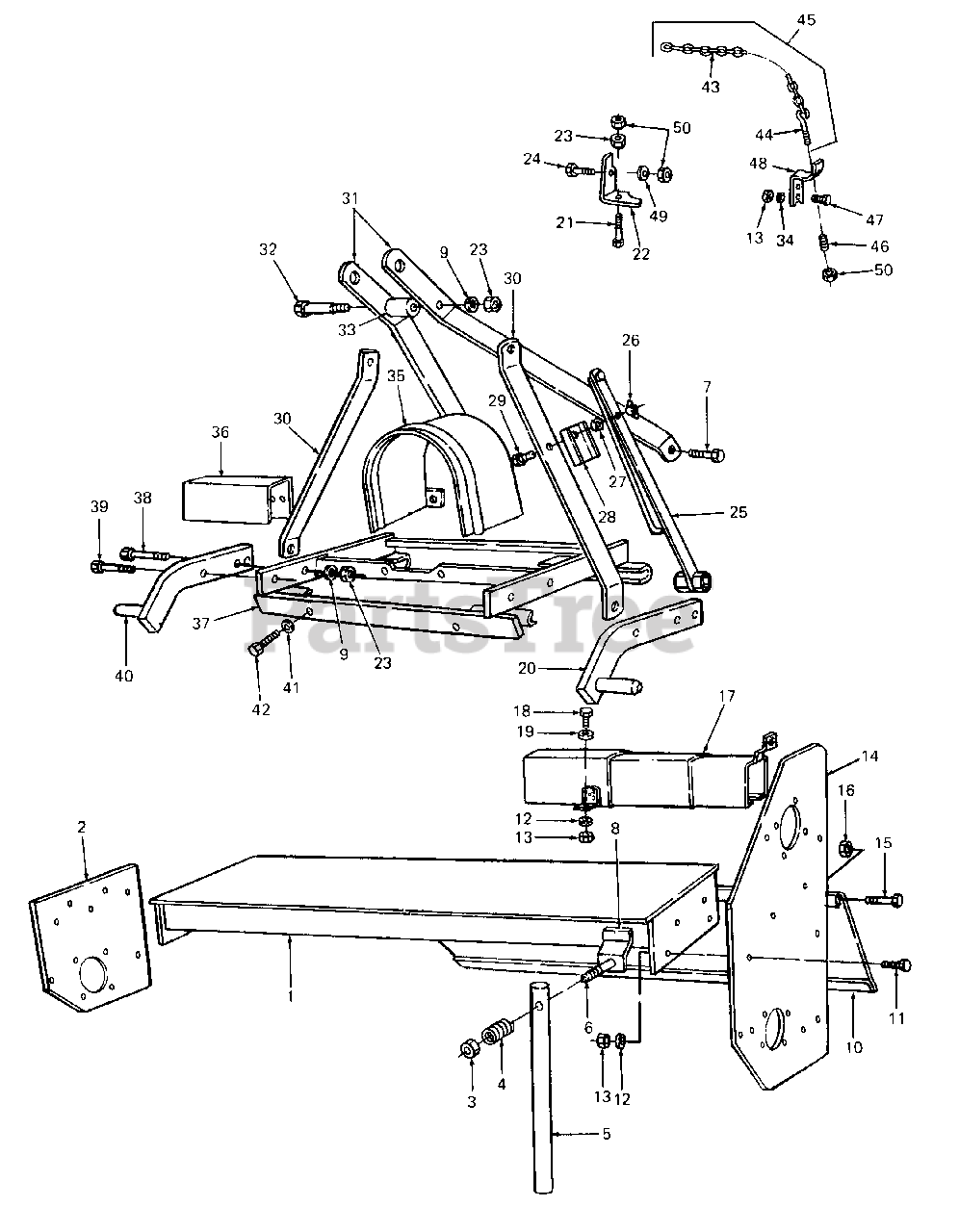

Main Frame Parts Diagram

  • Title

1

Cub Cadet BF-021-0002

Frame, Main

$

$

Not available

Cub Cadet BF-950-112B

Decal, Warning Instructions

$

$

Not available

2

Cub Cadet BF-001-0011

Panel, Right Side

$184.99

$

Usually ships in 3-6 days

0

3

Cub Cadet BF-003-0358

Nut, M14

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet BF-000-1176

Spring, Stand

$

$

Not available

5

Cub Cadet BF-001-0353

Stand

$

$

Not available

6

Cub Cadet BF-003-6153

Bolt, M14 X 70

$

$

Not available

7

Cub Cadet BF-000-7255

Bolt, M12 X 35

$

$

Not available

8

Cub Cadet BF-001-0005

Bracket, Stand Mounting

$

$

Not available

9

Cub Cadet BF-000-1077

Washer, M12

$

$

Not available

10

Cub Cadet BF-022-3281

Deflector, Rear

$457.99

$

Usually ships in 3-6 days

0

Cub Cadet 777-0634

Decal, Cub Cadet

$

$

Currently unavailable

11

Cub Cadet BF-000-1241

Bolt, M10 X 25

$

$

Not available

12

Cub Cadet BF-000-1011

Washer, Lock, M10

$

$

Not available

13

Cub Cadet BF-000-1010

Nut, M10

$

$

Not available

14

Cub Cadet BF-001-0021

Panel, Left Side

$288.99

$

Usually ships in 3-6 days

0

15

Cub Cadet BF-000-7519

Bolt, M14 X 70

$

$

Not available

16

Cub Cadet BF-003-0358

Nut, M14

$7.49

$

Usually ships in 3-6 days

0

17

Cub Cadet BF-011-0255

Cover, Expandable Protective

$199.99

$

Usually ships in 3-6 days

0

18

Cub Cadet BF-000-6349

Bolt, M10 X 20

$

$

Not available

19

Cub Cadet BF-003-0327

Washer, Flat

$

$

Not available

20

Cub Cadet BF-021-0287

Hitch Arm, Lower Left

$

$

Not available

21

Cub Cadet BF-003-0334

Bolt, M10 X 55

$

$

Not available

22

Cub Cadet BF-003-0321

Bracket, Pivot

$

$

Not available

23

Cub Cadet BF-000-3038

Nut, M12
(Superseded to BF-000-1106)

$

$

Not available

24

Cub Cadet BF-000-1278

Bolt, M10 X 30

$

$

Not available

25

Cub Cadet BF-001-0342

Tool, Ratchet

$

$

Not available

26

Cub Cadet BF-000-1807

Nut, Wing, M8

$

$

Not available

27

Cub Cadet BF-000-1806

Nut, M8

$

$

Not available

28

Cub Cadet BF-003-0339

Cover, Locking

$

$

Not available

29

Cub Cadet BF-000-8037

Bolt, M8 X 50

$

$

Not available

30

Cub Cadet BF-001-0273

Support, Top Hitch

$

$

Not available

31

Cub Cadet BF-001-0272

Arm, Top Hitch

$

$

Not available

32

Cub Cadet BF-003-4286

Bolt, M12 X 100

$

$

Not available

33

Cub Cadet BF-002-1285

Spacer

$

$

Not available

34

Cub Cadet BF-000-1280

Washer, M10

$

$

Not available

35

Cub Cadet BF-003-4355

Cover, Protective

$

$

Not available

Cub Cadet BF-003-3176

Bolt, M10 X 25

$

$

Not available

Cub Cadet BF-000-1011

Washer, Lock, M10

$

$

Not available

Cub Cadet BF-000-1010

Nut, M10

$

$

Not available

36

Cub Cadet BF-001-0248

Cover w/Holes, Protective

$

$

Not available

Cub Cadet BF-950-151B

Decal, 2000 RPM

$

$

Not available

37

Cub Cadet BF-001-0241

Frame, Side Shift

$620.99

$

Usually ships in 3-6 days

0

38

Cub Cadet BF-000-7716

Bolt, M12 X 45

$

$

Not available

39

Cub Cadet BF-000-1105

Bolt, M12 X 55

$

$

Not available

40

Cub Cadet BF-011-0287

Hitch Arm, Lower Right

$

$

Not available

41

Cub Cadet BF-000-1106

Nut, M12

$

$

Not available

42

Cub Cadet BF-002-2279

Bolt, M12 X 60

$

$

Not available

43

Cub Cadet BF-001-0318

Chain

$

$

Not available

44

Cub Cadet BF-002-1304

Hook, Lifting

$

$

Currently unavailable

45

Cub Cadet BF-001-0317

Chain Assy, Lifting

$

$

Not available

46

Cub Cadet BF-002-1315

Spring

$

$

Not available

47

Cub Cadet BF-003-3176

Bolt, M10 X 25

$

$

Not available

48

Cub Cadet BF-002-1306

Hitch, Lifting Chain

$

$

Not available

49

Cub Cadet BF-003-0327

Washer, Flat

$

$

Not available

50

Cub Cadet BF-003-0156

Nut, Self Locking, M10

$

$

Not available
