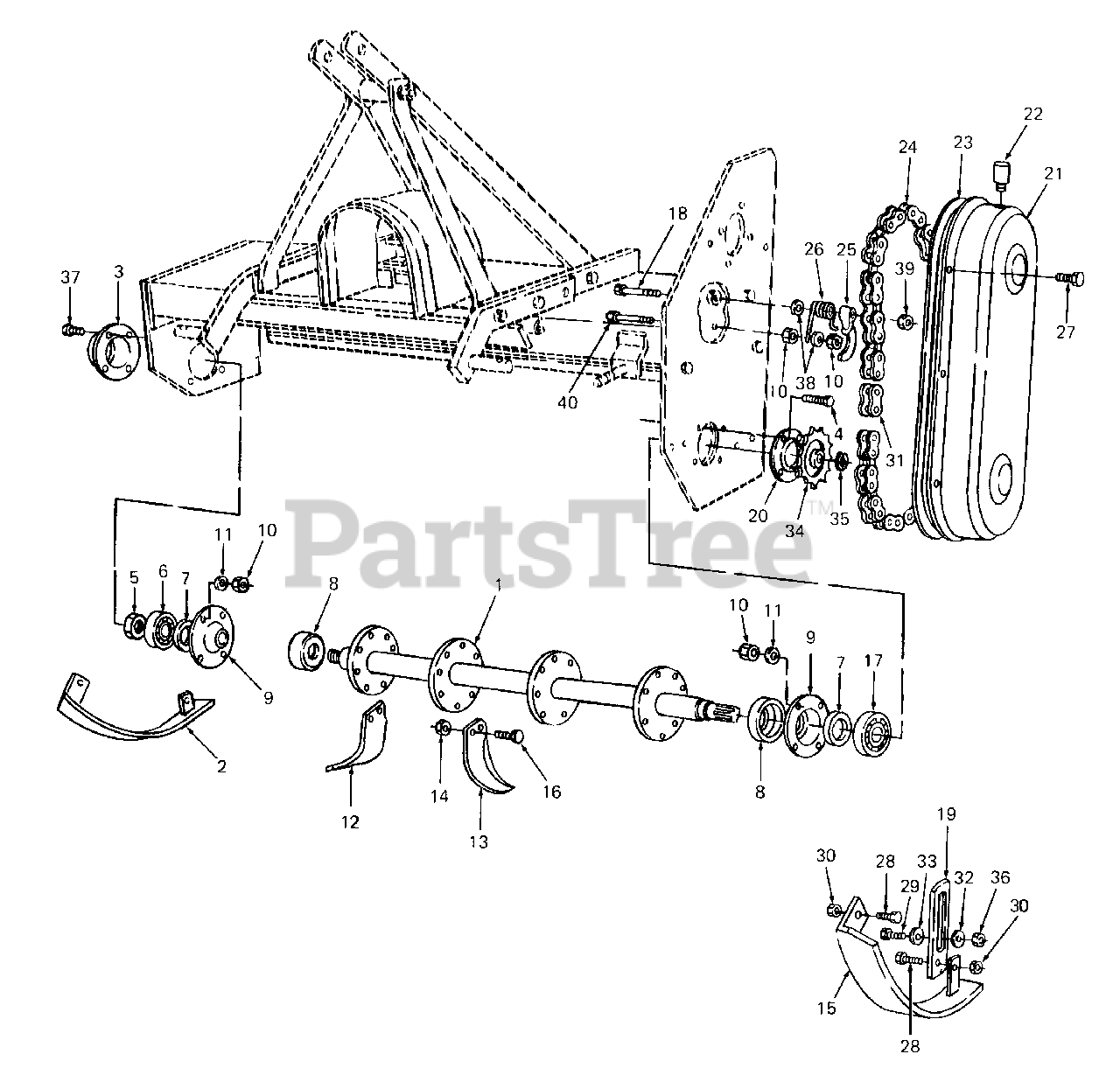

308 (190-308-100) - Cub Cadet 42" Rear PTO Tiller att Rotor, Drive & Skids Parts Diagram

42" Rear PTO Tiller

Rotor, Drive & Skids Parts Diagram

  • Title

1

Cub Cadet BF-023-4081

Shaft, Rotor

$

$

Not available

2

Cub Cadet BF-012-2051

Shoe, RH Skid

$

$

Not available

3

Cub Cadet BF-003-0091

Cover, RH Bearing

$

$

Not available

4

Cub Cadet BF-000-1241

Bolt, M10 X 25

$

$

Not available

5

Cub Cadet BF-003-0095

Nut, Self Locking

$

$

Not available

6

Cub Cadet BF-003-0094

Bearing, Rotor Shaft RH

$74.99

$

In Stock, only 1 left!

0

7

Cub Cadet BF-003-4098

Seal, Oil

$

$

Not available

8

Cub Cadet BF-002-2074

Shield, Dirt

$

$

Not available

9

Cub Cadet BF-003-0092

Cover, Inner Bearing

$

$

Not available

10

Cub Cadet BF-000-1010

Nut, M10

$

$

Not available

11

Cub Cadet BF-000-1011

Washer, Lock

$

$

Not available

12

Cub Cadet BF-003-0104D

Knife, Right

$

$

Not available

13

Cub Cadet BF-003-0104S

Knife, Left

$

$

Not available

14

Cub Cadet BF-002-1105

Nut, M12

$

$

Not available

15

Cub Cadet BF-022-2051

Shoe, LH Skid

$

$

Not available

16

Cub Cadet BF-002-1104

Bolt, M12 X 30

$

$

Not available

17

Cub Cadet BF-002-5332

Bearing, Rotor Shaft LH

$

$

Not available

18

Cub Cadet BF-003-0155

Bolt, M10 X 60

$

$

Not available

19

Cub Cadet BF-002-1051

Arm, Slotted Adjustment

$

$

Not available

20

Cub Cadet BF-001-0102

Cover, LH Bearing

$

$

Not available

21

Cub Cadet BF-002-2031

Housing, Chain & Sprocket
(Superseded to BF-001-1030)

$

$

Not available

22

Cub Cadet BF-000-1107

Cap, Breather

$

$

Not available

23

Cub Cadet BF-002-2032

Gasket

$

$

Not available

24

Cub Cadet BF-001-0125

Drive Chain, 45 Links #60

$

$

Not available

25

Cub Cadet BF-003-0148

Tensioner, Chain

$

$

Not available

26

Cub Cadet BF-003-0158

Spring, Chain Tensioner

$

$

Not available

27

Cub Cadet BF-000-1046

Bolt, M10 X 20

$

$

Not available

Cub Cadet BF-000-1279

Nut, M10

$

$

Not available

28

Cub Cadet BF-000-1278

Bolt, M10 X 30

$

$

Not available

29

Cub Cadet BF-002-6329

Bolt, M10 X 45

$

$

Not available

30

Cub Cadet BF-003-0156

Nut, M10

$

$

Not available

31

Cub Cadet BF-001-0126

Link, #60 Master

$

$

Not available

32

Cub Cadet BF-002-1053

Washer, Spacer

$

$

Not available

33

Cub Cadet BF-002-1052

Washer w/Threads, Spacer

$

$

Not available

34

Cub Cadet BF-001-0119

Sprocket, 22 Tooth

$

$

Not available

35

Cub Cadet BF-004-2122

Ring, Snap

$

$

Not available

36

Cub Cadet BF-000-1279

Nut, M10

$

$

Not available

37

Cub Cadet BF-000-1008

Bolt, M10 X 30

$

$

Not available

38

Cub Cadet BF-003-0327

Washer, Flat

$

$

Not available

39

Cub Cadet BF-003-0156

Nut, Self Locking, M10

$

$

Not available

40

Cub Cadet BF-003-0334

Bolt, M10 X 55

$

$

Not available
