308 - Husqvarna Automower Robotic Lawn Mower (2013-06) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

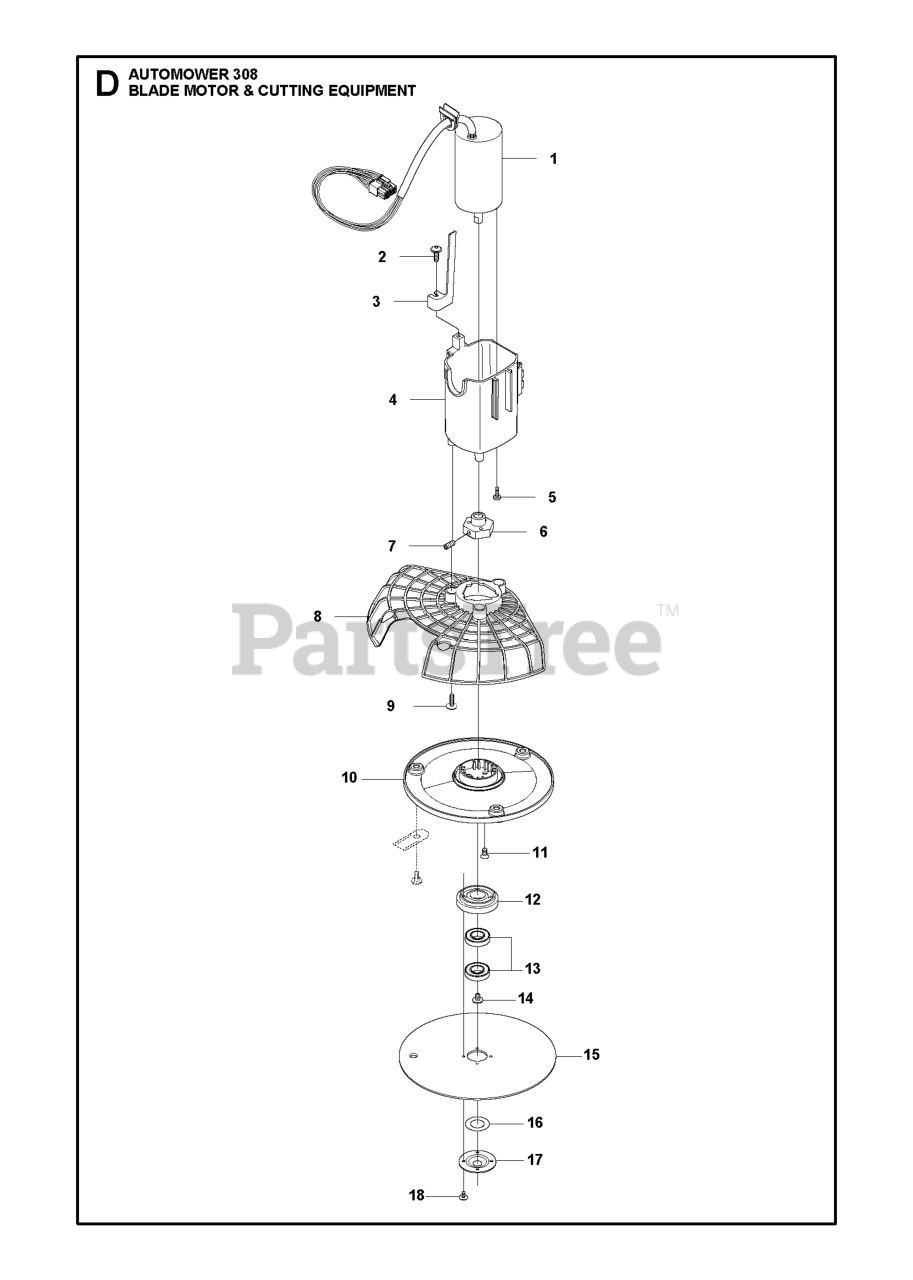

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

16

Husqvarna 535082501

GASKET

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543314

SCREW 14MM

$3.99

$

In Stock, Qty 14

0

12

Husqvarna 535126401

BEARING

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$395.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574468902

$

$

Currently unavailable

7

Husqvarna 576213501

SCREW IHSETM M5X10 8.8 ZP-BC

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 577850201

$

$

Currently unavailable

15

Husqvarna 580792701

$

$

Currently unavailable

17

Husqvarna 535081501

COVER SKID PLATE

$

$

Not available

4

Husqvarna 574484502

$

$

Currently unavailable

14

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 14

0

3

Husqvarna 574503501

HEIGHT INDICATOR

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576213801

SCREW ITXPANM M4X12 8.8 ZP-BC

$

$

Not available

9

Husqvarna 575543314

SCREW 14MM

$3.99

$

In Stock, Qty 14

0

10

Husqvarna 580792801

$

$

Currently unavailable

11

Husqvarna 535130501

SCREW
(Superseded to 535130502)

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 575543310

SCREW SILVER 10MM

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580793101

$

$

Currently unavailable

13

Husqvarna 535075702

SPACER

$53.99

$

Usually ships in 3-10 days

0
