308 - Husqvarna Automower Robotic Lawn Mower (2014-02) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

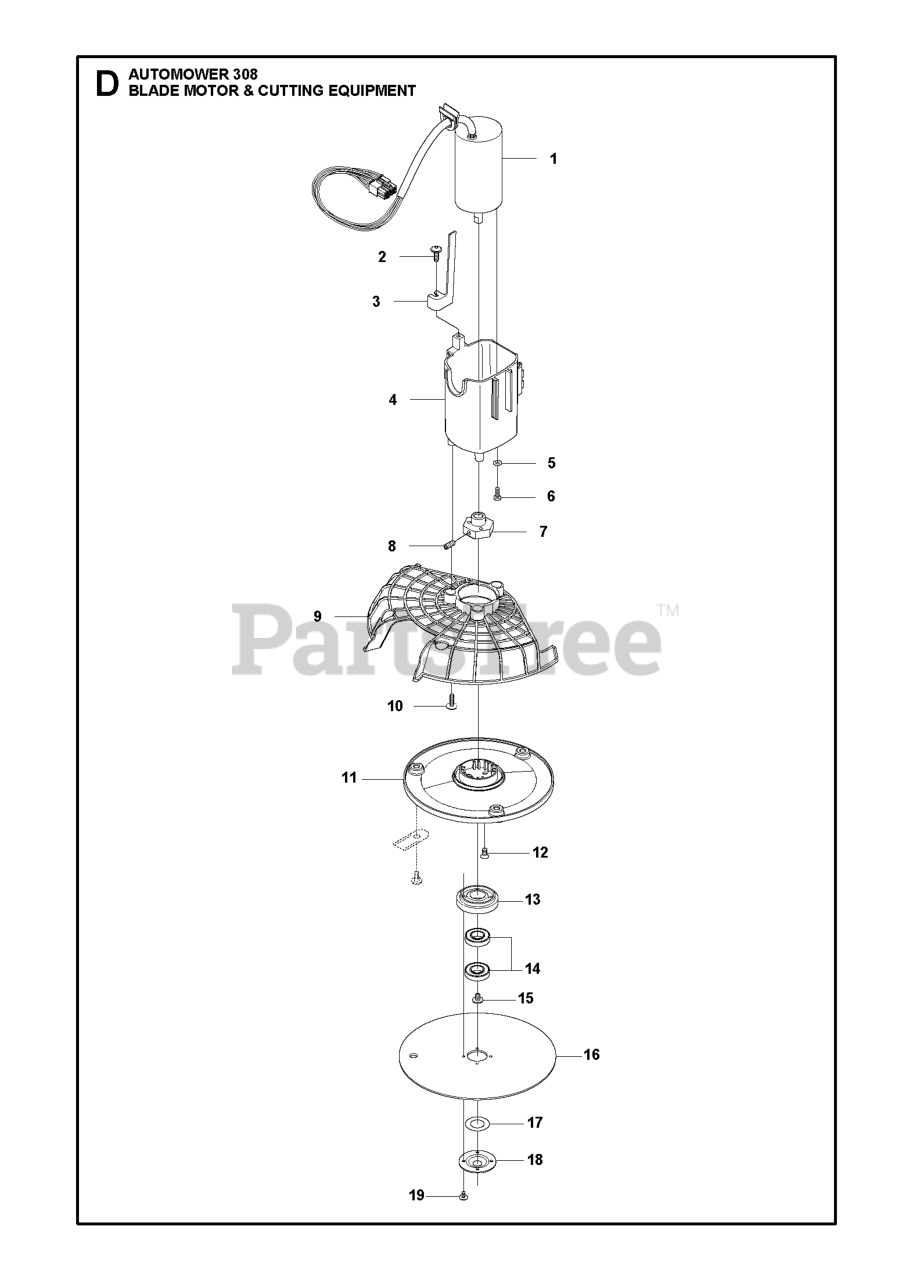

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

7

Husqvarna 580793101

$

$

Currently unavailable

3

Husqvarna 574503501

HEIGHT INDICATOR

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 584989301

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 576213501

SCREW IHSETM M5X10 8.8 ZP-BC

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581020301

MOTOR HOUSING

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 18

0

9

Husqvarna 577850203

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 535081501

COVER SKID PLATE

$

$

Not available

14

Husqvarna 535075702

SPACER

$13.99

$

In Stock, only 1 left!

0

17

Husqvarna 535082501

GASKET

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$4.99

$

In Stock, Qty 18

0

5

Husqvarna 510019501

$

$

Currently unavailable

14

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$511.99

$

Usually ships in 3-10 days

0

6

Husqvarna 576213801

SCREW ITXPANM M4X12 8.8 ZP-BC

Note: M4x12

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575543310

SCREW SILVER 10MM

$4.99

$

In Stock, Qty 9

0

11

Husqvarna 580792802

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 535130501

SCREW
(Superseded to 535130502)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 535126401

BEARING

$13.99

$

In Stock, only 1 left!

0

15

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

16

Husqvarna 580792701

$

$

Currently unavailable
