308 - Husqvarna Automower Robotic Lawn Mower (2015-01) COVER Parts Diagram

Automower Robotic Lawn Mower

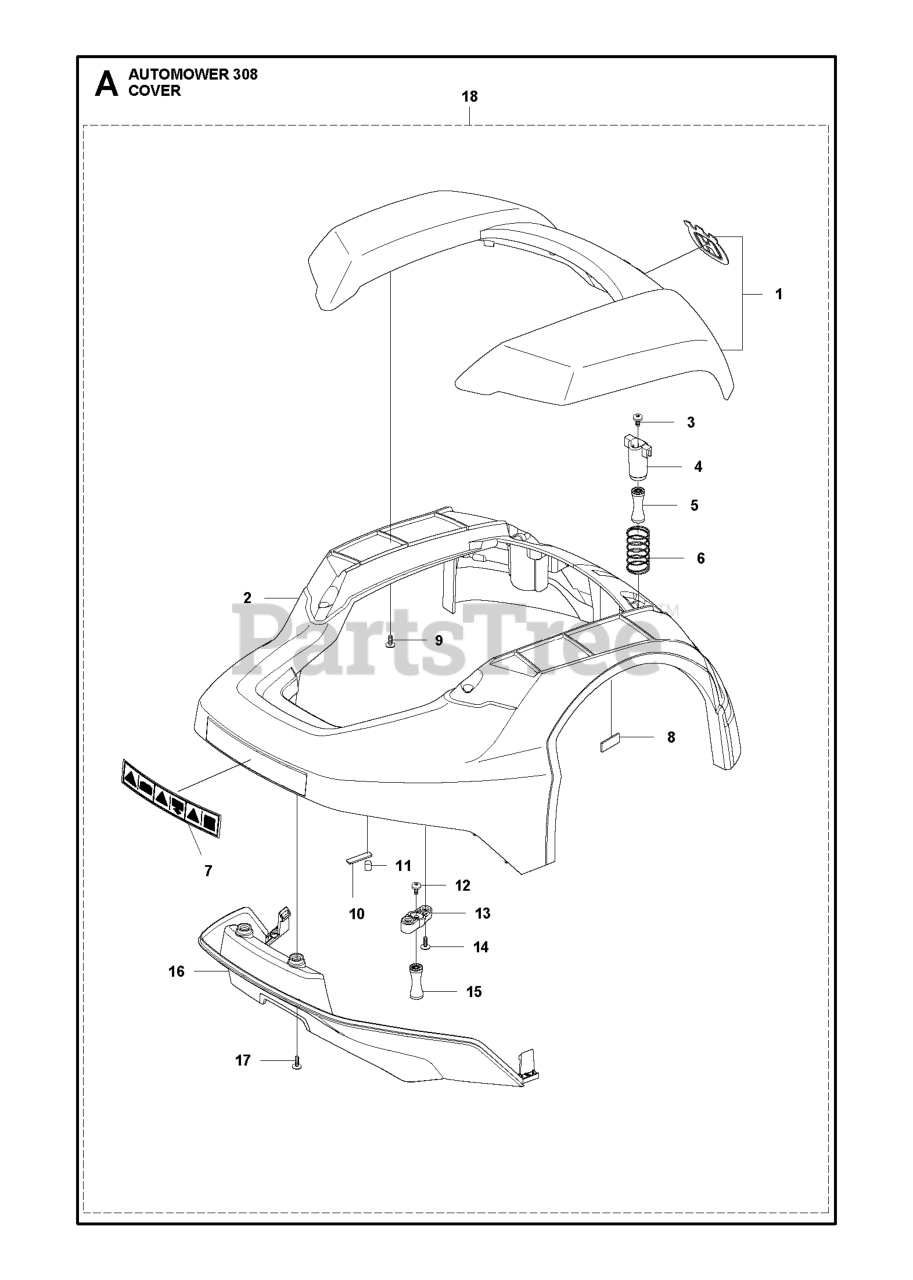

COVER Parts Diagram

  • Title

6

Husqvarna 574485102

SPRING LIFT SENSOR L = 35 MM

$

$

Not available

15

Husqvarna 574469102

DAMPER RUBBER 40 SHORE

$

$

Not available

10

Husqvarna 576030101

PLATE CARRIER MAGNET

$

$

Not available

4

Husqvarna 574469002

BRACKET COLUMN FRONT USE WITH

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 576183201

MAGNET LIFT SENSOR
(Superseded to 576183202)

$

$

Not available

14

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$3.99

$

In Stock, Qty 14

0

17

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$3.99

$

In Stock, Qty 14

0

12

Husqvarna 576213901

SCREW ITXPANM M5X12 8.8 ZP-BC
(Superseded to 590740201)

Note: M5x12

$

$

Not available

2

Husqvarna 577747202

$

$

Currently unavailable

3

Husqvarna 576213901

SCREW ITXPANM M5X12 8.8 ZP-BC
(Superseded to 590740201)

Note: M5x12

$

$

Not available

16

Husqvarna 574465201

$

$

Currently unavailable

9

Husqvarna 575543314

SCREW 14MM

Note: grey (14mm)

$3.99

$

In Stock, Qty 14

0

13

Husqvarna 575416002

SUPPORT CLAMP USE WITH M5 X 1

$

$

Not available

7

Husqvarna 576240001

$

$

Currently unavailable

1

Husqvarna 577734702

Note: Grey

$

$

Currently unavailable

18

Husqvarna 577955302

Note: Grey

$

$

Currently unavailable

5

Husqvarna 574469102

DAMPER RUBBER 40 SHORE

$

$

Not available

11

Husqvarna 576183301

MAGNET COLLISION SENSOR

$

$

Not available
