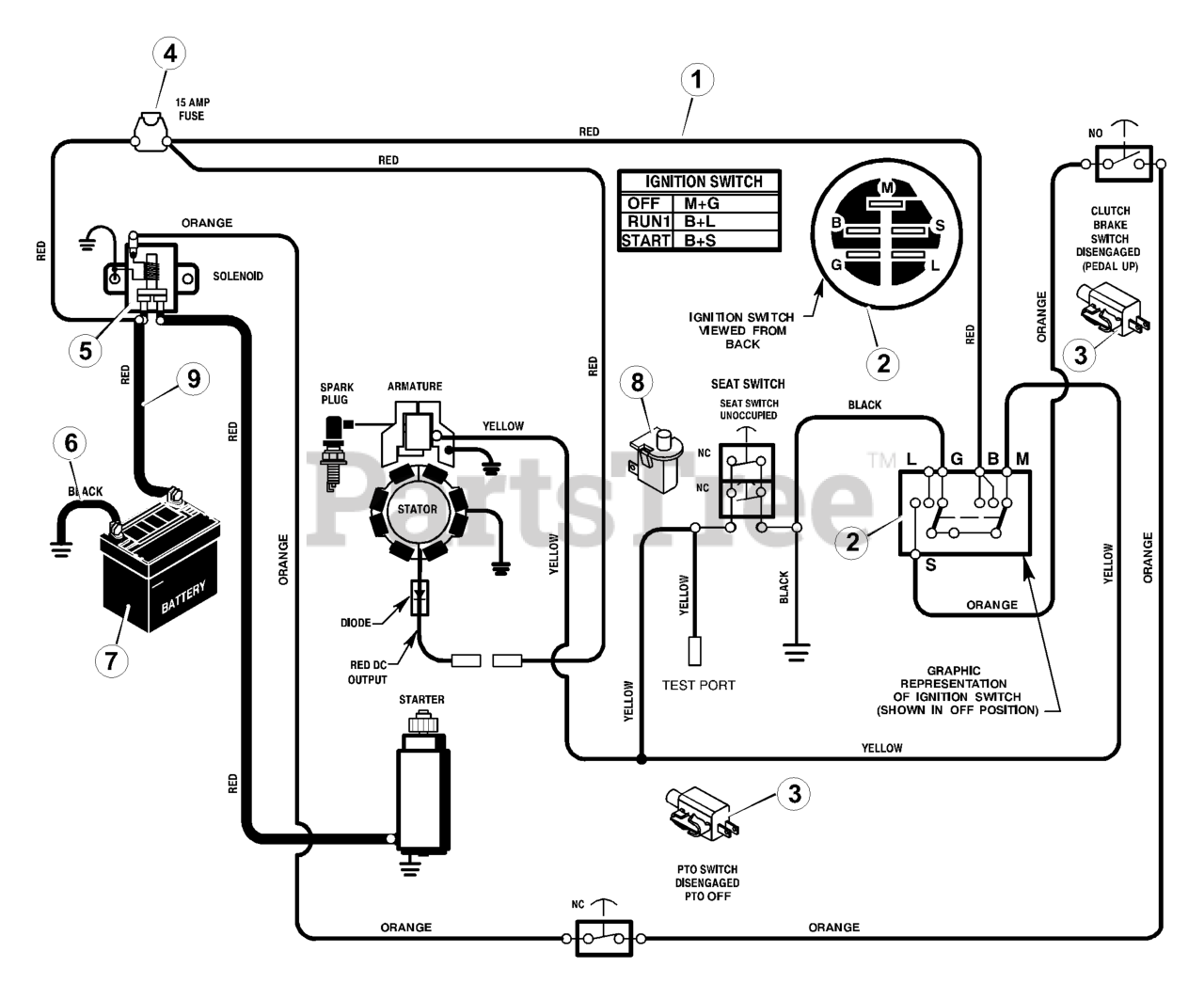

309000x31A - Scotts 30" Rear-Engine Riding Mower (2003) > Parts Diagrams (6) > Electrical System

  • Title
250X115MA

1

Harness, Chassis Wire

Part# 250X115MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $30.28

1401149MA

2

Switch, Ignition

Part# 1401149MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $23.04

327349MA

--

Key, Ignition

Part# 327349MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.09

--

Nut, Hex

Part#

Not available

-----

--

Cap, Ignition

Part# -----

Not available

1001575MA

3

Switch, Limit

Part# 1001575MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.88

54212

4

Fuse

Part# 54212

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $5.78

407078MA

--

Holder, Fuse

Part# 407078MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $15.34

94613

5

Solenoid

Part# 94613

OEM Warranty Repair Part for Murray

Not available

26X214MA

--

Screw, Mounting

Part# 26X214MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.21

15X116MA

--

Locknut

Part# 15X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

24X37MA

6

Cable, Battery Ground

Part# 24X37MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $16.86

--

Screw, Ground Cable

Part#

Not available

92739

7

Battery

Part# 92739

OEM Warranty Repair Part for Murray

Currently unavailable

002X82MA

--

Bolt, Carriage

Part# 002X82MA (Superseded to 703841)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

014X79MA

--

Wingnut

Part# 014X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44

94159

8

Switch, Seat Sensor

Part# 94159

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $9.84

024X24MA

9

Cable, Red Batery

Part# 024X24MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.78

690604MA

--

BOOT, Battery Terminal, Positive

Part# 690604MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 4 business days

Your price: $4.61
