309001x48A - Briggs & Stratton 30" Rear-Engine Riding Mower (2003) (Mills) Chassis & Hood Parts Diagram

30" Rear-Engine Riding Mower

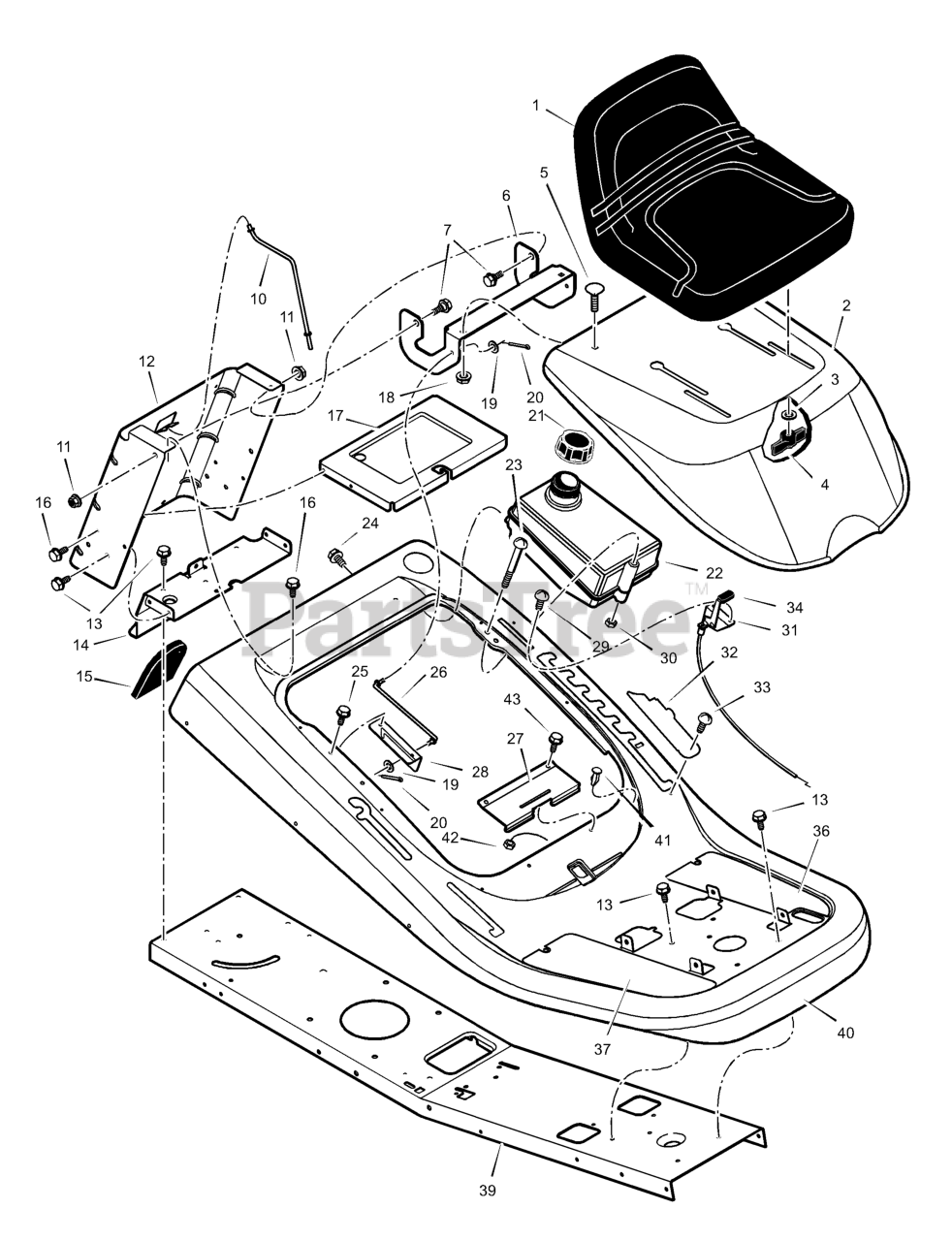

Chassis & Hood Parts Diagram

  • Title

1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 1401027E276

Hood

$

$

Currently unavailable

3

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

5

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

6

Murray 1401036E700

Bracket, Hinge

$

$

Currently unavailable

7

Murray 009X29MA

Bolt, Shoulder

$4.49

$

In Stock, only 1 left!

0

10

Murray 1401113MA

Rod, Battery

$14.99

$

In Stock, only 1 left!

0

11

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Murray 1401025E700

Plate, Rear

$

$

Currently unavailable

13

Murray 26X249MA

Screw

$

$

Not available

14

Murray 1401050E700

Plate, Hitch

$

$

Currently unavailable

15

Murray 1401086MA

Cover

$6.49

$

In Stock, only 1 left!

0

16

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

17

Murray 1401076E701MA

TRAY, Battery

$54.99

$

Usually ships in 2-12 days

0

18

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

20

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

21

Murray 92317

Cap, Fuel Tank
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

22

Murray 1401071

Tank, Fuel

$

$

Currently unavailable

23

Murray 06X111

Screw

$5.99

$

Usually ships in 2-12 days

0

24

Murray 710246

Screw

$8.49

$

Usually ships in 2-12 days

0

25

Murray 710197

Screw

$12.99

$

Usually ships in 2-12 days

0

26

Murray 1401110MA

Rod, Hood Prop

$12.99

$

Usually ships in 2-12 days

0

27

Murray 1401041

Spring, Seat Deck

$14.99

$

Usually ships in 2-12 days

0

28

Murray 1401297E700

Bracket, Prop Rod

$

$

Currently unavailable

29

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

30

Murray 15X116MA

Nut, NY-Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Murray 1401248MA

Control, Throttle

$39.99

$

Usually ships in 2-12 days

0

32

Murray 1401084MA

Cover, Detent (Black)

$6.99

$

Usually ships in 2-12 days

0

33

Murray 009X47MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

34

Murray 1401237

Grip, Throttle Control

$

$

Currently unavailable

36

Murray 1401145

Footmat, Left (Black)

$5.49

$

Usually ships in 2-12 days

0

37

Murray 1401144

Footmat, Right (Black)

$5.99

$

Usually ships in 2-12 days

0

39

Murray 1401029E700

Frame

$

$

Currently unavailable

40

Murray 1401026E276

Deck, Seat

$

$

Currently unavailable

41

Murray 94744

Bumper
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

42

Murray 782585

Nut
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

43

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

--

Murray F-030613L

Book, Instruction

$

$

Currently unavailable
