309002x24C - Briggs & Stratton 30" Rear-Engine Riding Mower (2005) (Meijer) Mower Housing Parts Diagram

30" Rear-Engine Riding Mower

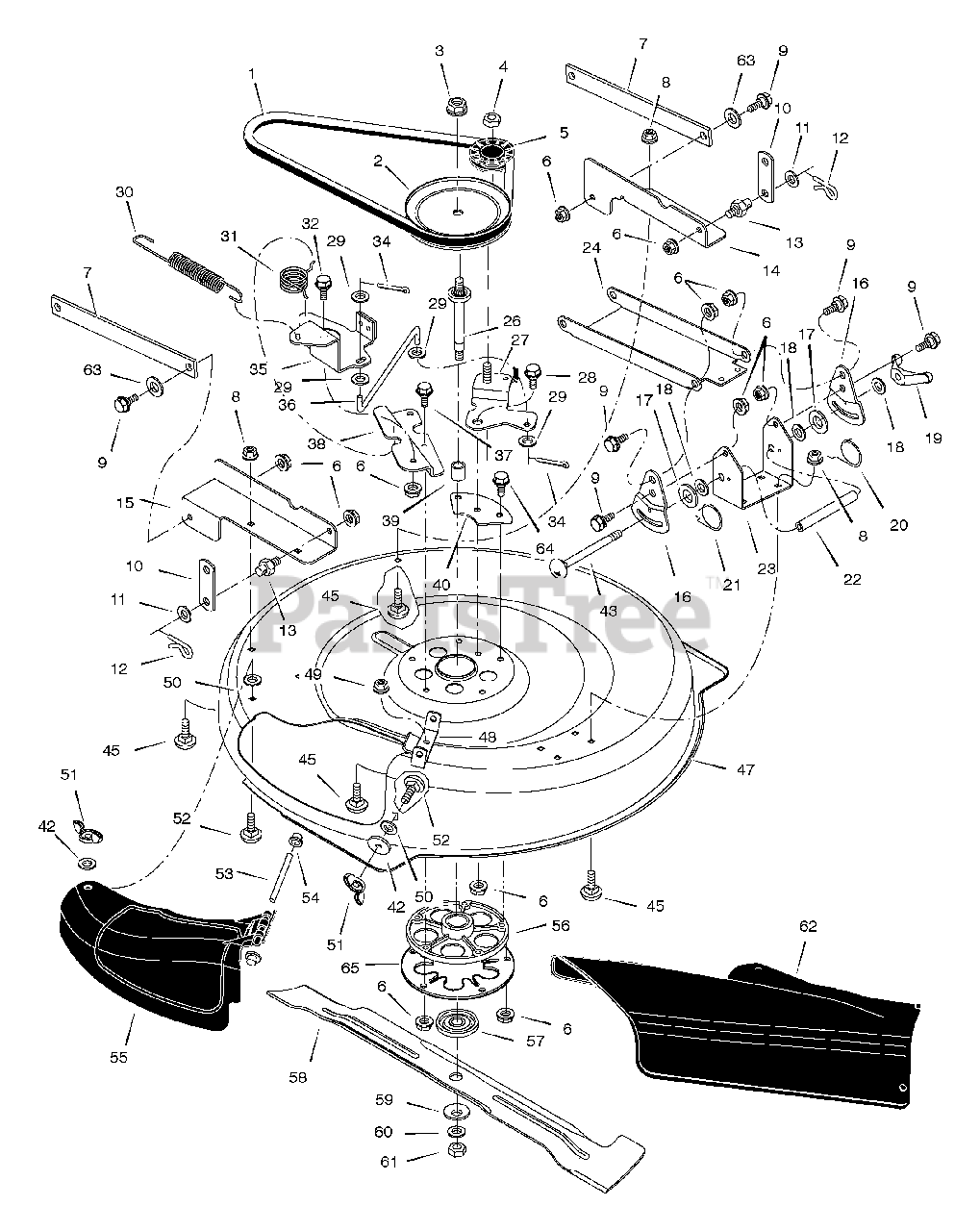

Mower Housing Parts Diagram

  • Title
1

Murray 37X111MA

Belt, Blade Drive

$25.99

$

In Stock, only 2 left!

0

2

Murray 1401092MA

Pulley, Input

$57.99

$

Usually ships in 2-12 days

0

3

Murray 15X140MA

Locknut

$9.99

$

In Stock, only 1 left!

0

4

Murray 015X98MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 10

0

5

Murray 1401252MA

Pulley, Idler

$

$

Not available

6

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 10

0

7

$16.99

$

Usually ships in 2-12 days

0

8

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 009X58MA

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

10

Murray 1401033E701

Link, Lift

$24.99

$

Usually ships in 2-12 days

0

11

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

12

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

13

Murray 094067MA

Pin, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 8

0

14

Murray 1401047E701

Bracket, Left Rear

$25.99

$

Usually ships in 2-12 days

0

15

Murray 1401235E701

Bracket, Right Rear

$22.99

$

Usually ships in 2-12 days

0

16

Murray 1401038E701

Plate, Adjustment

$5.99

$

In Stock, only 4 left!

0

17

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 10

0

18

$

$

Not available

19

Murray 095004MA

Wingnut

$7.49

$

In Stock, only 1 left!

0

20

Murray 166X43MA

Spring, Left Torsion

$4.99

$

In Stock, only 2 left!

0

21

Murray 166X42MA

Spring, Right Torsion

$4.99

$

In Stock, Qty 10

0

22

Murray 1401095

Tube, Spacer

$

$

Not available

23

Murray 1401037E701

Bracket, Deck

$14.99

$

Usually ships in 2-12 days

0

24

Murray 1401040E701MA

Hanger, Front

$48.99

$

Usually ships in 2-12 days

0

26

Murray 1401065MA

Shaft, Splined

$20.99

$

In Stock, only 1 left!

0

27

Murray 1401258E701MA

Arm Assembly, Idler

$119.99

$

Usually ships in 2-12 days

0

28

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 7

0

29

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 165X157MA

Spring, Extension

$11.99

$

Usually ships in 2-12 days

0

31

Murray 166X46MA

Spring, Torsion

$5.99

$

In Stock, only 1 left!

0

32

Murray 009X42MA

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

34

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

35

Murray 1401185E701MA

Arm Assembly, Brake

$

$

Not available

36

Murray 1401119MA

Link, Idler Arm

$25.99

$

In Stock, only 1 left!

0

37

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

38

Murray 1401052E701

Bracket, Brake Mounting

$28.99

$

Usually ships in 2-12 days

0

39

Murray 1401094MA

Spacer, Jackshaft

$4.99

$

Usually ships in 2-12 days

0

40

Murray 1401259 Z

Plate, Idler Mounting

$

$

Currently unavailable

42

$5.49

$

In Stock, only 2 left!

0

43

Murray 002X94MA

Bolt, Carriage

$5.49

$

Usually ships in 2-12 days

0

45

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

47

Murray 1401236E701MA

Housing, Blade

$

$

Not available

48

Murray 1401106E701

Hinge, Mulching Cover

$6.99

$

In Stock, only 1 left!

0

49

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 028X76MA

Nut, Speed

$4.49

$

Usually ships in 2-12 days

0

51

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 11

0

52

Murray 002X74MA

Bolt, Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

53

Murray 091767 Z

Rod, Chute Deflector

$

$

Currently unavailable

54

Murray 028X23MA

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 14

0

55

Murray 1401080MA

Cover, Mulch

$58.99

$

Usually ships in 2-12 days

0

56

Murray 1401275

Mandrel Housing

$

$

Not available

57

Murray 1001035

Adapter, Blade

$9.99

$

In Stock, Qty 5

0

$37.99

$

In Stock, only 3 left!

0

59

Murray 17X166MA

Washer, Cup

$13.99

$

In Stock, only 1 left!

0

60

$16.99

$

In Stock, only 3 left!

0

61

Murray 15X100MA

Nut, Blade Mount

$3.99

$

In Stock, Qty 16

0

62

Murray 1401081MA

Deflector, Chute

$114.99

$

Usually ships in 2-12 days

0

63

$3.49

$

Usually ships in 2-12 days

0

64

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

65

Murray 1001952

Plate, Jackshaft Support

$

$

Not available
