309006x50C - Murray 30" Rear-Engine Riding Mower (2007) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

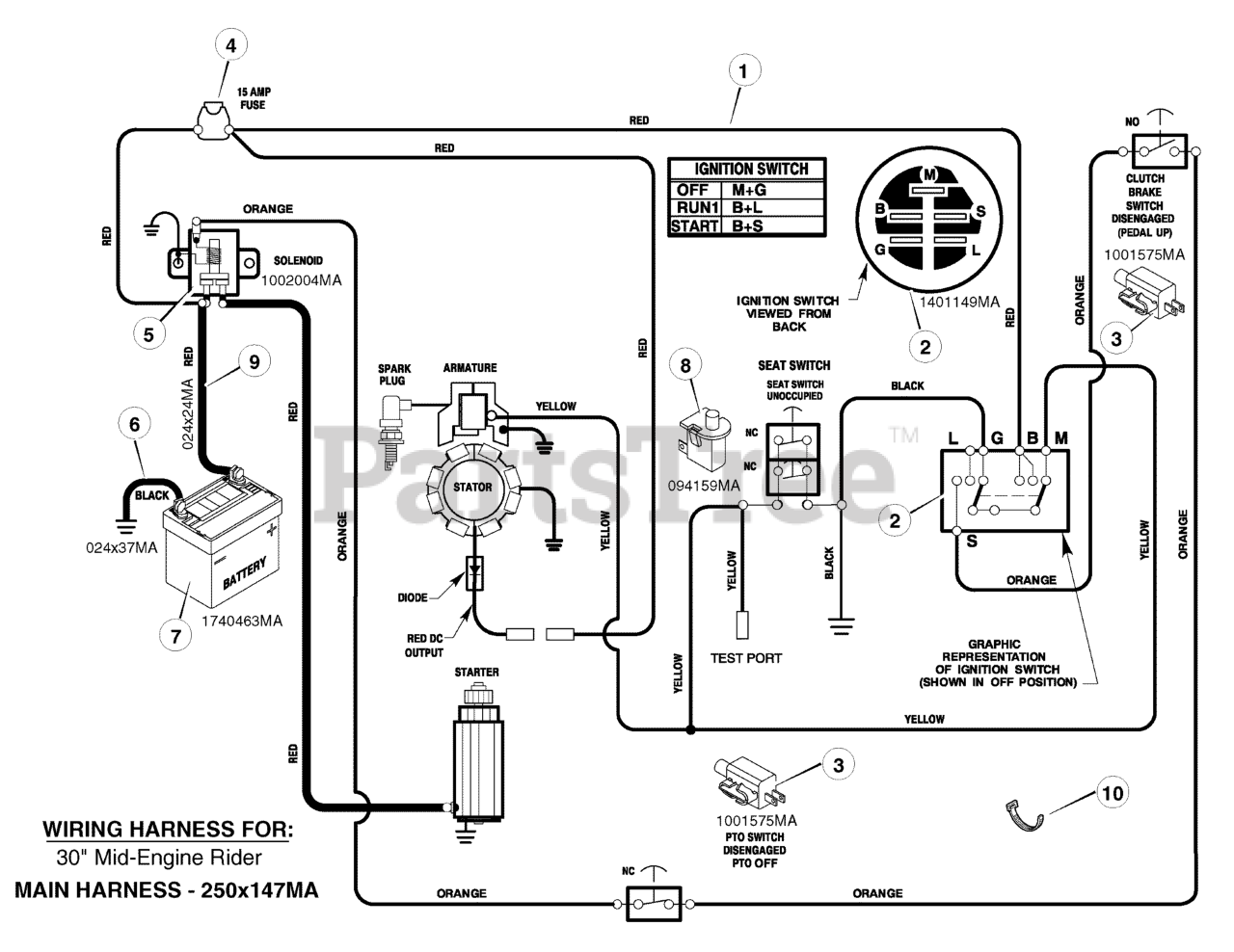

Electrical System Parts Diagram

  • Title

1

Murray 250X147MA

HARNESS, Chassis Wire

$69.99

$

Usually ships in 2-12 days

0

2

Murray 1401149MA

SWITCH, Ignition

$32.99

$

In Stock, only 1 left!

0

--

Murray 327349MA

KEY, Ignition

$7.49

$

Usually ships in 2-12 days

0

3

Murray 1001575MA

SWITCH, Limit

$9.99

$

Usually ships in 2-12 days

0

4

Murray 054212MA

FUSE

$6.99

$

Usually ships in 2-12 days

0

--

Murray 407078MA

HOLDER, Fuse

$20.99

$

Usually ships in 2-12 days

0

5

Murray 1002004MA

SOLENOID
(Superseded to 7701100MA)

$27.99

$

In Stock, Qty 7

0

--

Murray 26X229MA

SCREW, Mounting

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

LOCKNUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 24X37MA

CABLE, Battery Ground

$22.99

$

Usually ships in 2-12 days

0

7

Murray 1740463MA

BATTERY

$

$

Currently unavailable

--

Murray 002X82MA

BOLT, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

WINGNUT

$4.99

$

Usually ships in 2-12 days

0

8

Murray 094159MA

SWITCH, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

9

Murray 024X24MA

CABLE, Red Battery

$8.49

$

Usually ships in 2-12 days

0

--

Murray 690604MA

BOOT, Battery Terminal, Positive

$5.99

$

Usually ships in 2-12 days

0

10

Murray 032618MA

Strap, Tie

$3.99

$

Usually ships in 2-12 days

0
