309006x50C - Murray 30" Rear-Engine Riding Mower (2007) Mower Housing Parts Diagram

30" Rear-Engine Riding Mower

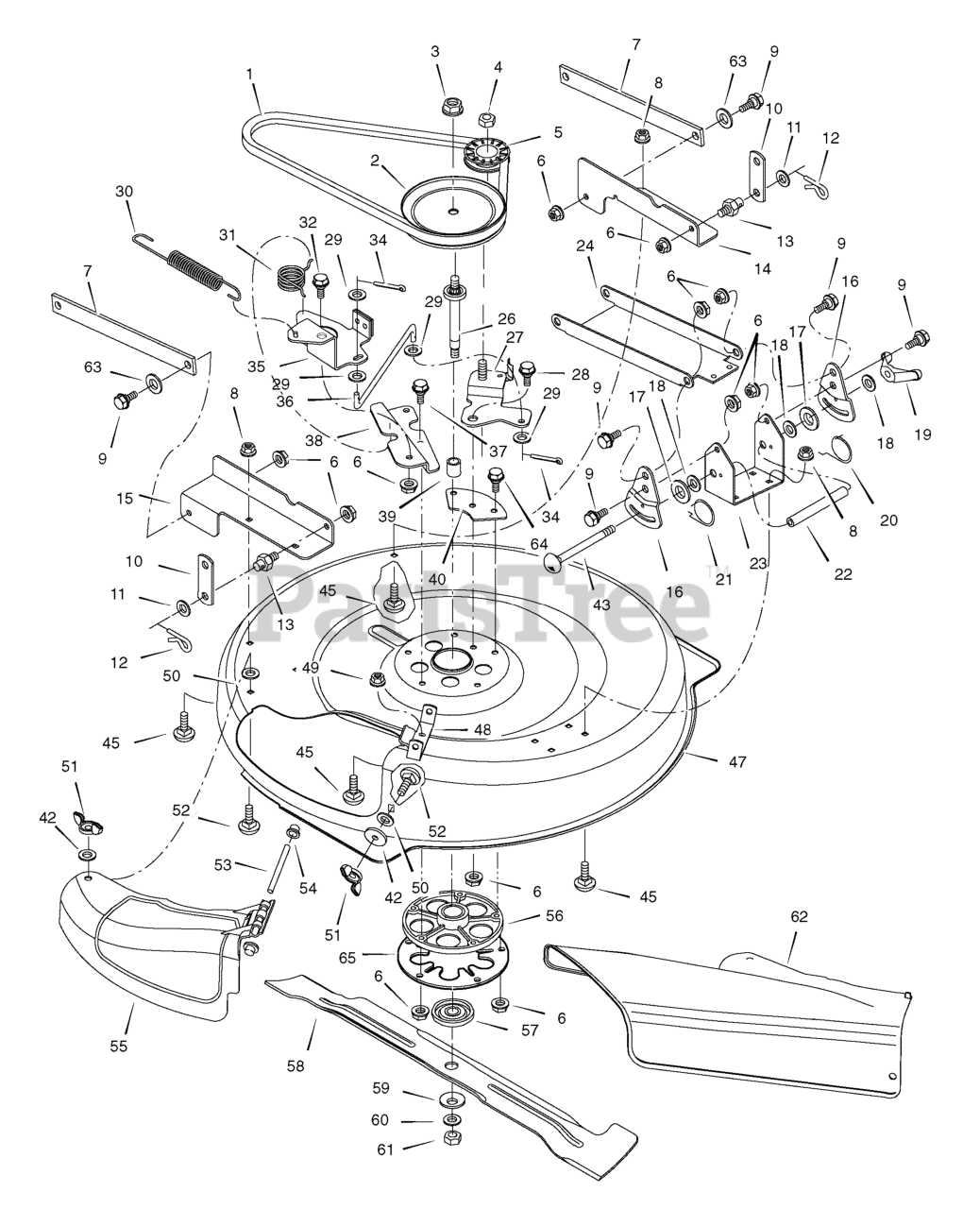

Mower Housing Parts Diagram

  • Title

1

Murray 37X111MA

BELT, Blade Drive

$25.99

$

In Stock, only 4 left!

0

2

Murray 1401092ZMA

PULLEY, Input

$

$

Currently unavailable

3

Murray 15X140MA

LOCKNUT

$9.99

$

In Stock, only 1 left!

0

4

Murray 015X98MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 1401252MA

PULLEY, Idler

$

$

Not available

6

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 1401031E701MA

ARM, Rear

$16.99

$

Usually ships in 2-12 days

0

8

Murray 015X79MA

NUT, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 009X58MA

BOLT, Shoulder
(Superseded to 702315)

$6.99

$

In Stock, only 1 left!

0

10

Murray 1401033E701MA

LINK, Lift

$24.99

$

Usually ships in 2-12 days

0

11

Murray 017X45MA

WASHER

$

$

Not available

12

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

13

Murray 094067MA

PIN, Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 9

0

14

Murray 1401047E701MA

BRACKET, Left Rear

$25.99

$

Usually ships in 2-12 days

0

15

Murray 1401296E701MA

BRACKET, Right Rear

$24.99

$

Usually ships in 2-12 days

0

16

Murray 1401038E701MA

PLATE, Adjustment

$5.99

$

In Stock, only 4 left!

0

17

Murray 094137MA

PAD, Friction

$6.99

$

In Stock, Qty 10

0

18

Murray 017X45MA

WASHER

$

$

Not available

19

Murray 095004MA

WINGNUT

$7.49

$

In Stock, only 1 left!

0

20

Murray 166X43MA

SPRING, Left Torsion

$4.99

$

In Stock, only 3 left!

0

21

Murray 166X42MA

SPRING, Right Torsion

$4.99

$

In Stock, Qty 10

0

22

Murray 1401095MA

TUBE, Spacer

$6.99

$

Usually ships in 2-12 days

0

23

Murray 1401037E701MA

BRACKET, Deck

$14.99

$

Usually ships in 2-12 days

0

24

Murray 1401040E701MA

HANGER, Front

$48.99

$

Usually ships in 2-12 days

0

26

Murray 1401065MA

SHAFT, Splined

$20.99

$

In Stock, only 1 left!

0

27

Murray 1401258E701MA

ARM ASSEMBLY , Idler

$119.99

$

Usually ships in 2-12 days

0

28

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 10

0

29

Murray 017X47MA

WASHER
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 165X157MA

SPRING, Extension

$11.99

$

Usually ships in 2-12 days

0

31

Murray 166X46MA

SPRING, Torsion

$5.99

$

In Stock, only 1 left!

0

32

Murray 009X42MA

BOLT, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 2 left!

0

34

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

35

Murray 1401185E701MA

ARM ASSEMBLY, Brake

$

$

Not available

36

Murray 1401119MA

LINK, Idler Arm

$25.99

$

In Stock, only 1 left!

0

37

Murray 025X23MA

BOLT

$6.99

$

Usually ships in 2-12 days

0

38

Murray 1401052E701MA

BRACKET, Brake Mounting

$28.99

$

Usually ships in 2-12 days

0

39

Murray 1401094MA

SPACER, Jackshaft

$4.99

$

Usually ships in 2-12 days

0

40

Murray 1401259ZMA

PLATE, Idler Mounting

$

$

Not available

42

Murray 019X45MA

WASHER

$5.49

$

In Stock, only 2 left!

0

43

Murray 002X94MA

BOLT, Carriage

$5.49

$

Usually ships in 2-12 days

0

45

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

47

Murray 1401236E717MA

HOUSING, Blade

$433.99

$

Usually ships in 2-12 days

0

48

Murray 1401106E701MA

HINGE, Mulching Cover

$6.99

$

In Stock, only 1 left!

0

49

Murray 015X88MA

NUT, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 028X76MA

NUT, Speed

$4.49

$

In Stock, only 1 left!

0

51

Murray 014X86MA

WINGNUT
(Superseded to 703141)

$3.49

$

In Stock, Qty 10

0

52

Murray 002X74MA

BOLT, Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

53

Murray 091767ZMA

ROD, Chute Deflector

$10.99

$

Usually ships in 2-12 days

0

54

Murray 028X23MA

CAP, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

55

Murray 1401080MA

COVER, Mulch

$58.99

$

In Stock, only 1 left!

0

56

Murray 094305MA

MANDREL HOUSING

$112.99

$

Usually ships in 2-12 days

0

57

Murray 1001035MA

ADAPTER, Blade
(Superseded to 092466MA)

$9.99

$

In Stock, Qty 10

0

58

Murray 1401079E701MA

BLADE

$37.99

$

In Stock, only 1 left!

0

59

Murray 17X166MA

WASHER, Cup

$13.99

$

In Stock, only 3 left!

0

60

Murray 17X165MA

WASHER

$16.99

$

In Stock, only 1 left!

0

61

Murray 15X100MA

NUT, Blade Mount

$3.99

$

In Stock, Qty 5

0

62

Murray 1401081MA

DEFLECTOR, Chute

$114.99

$

Usually ships in 2-12 days

0

63

Murray 017X91MA

WASHER

$5.49

$

In Stock, only 2 left!

0

64

Murray 025X23MA

BOLT

$6.99

$

Usually ships in 2-12 days

0

65

Murray 1001952MA

PLATE, Jackshaft Support
(Superseded to 7300836ZMA)

$12.99

$

Usually ships in 2-12 days

0
