309006x50C - Murray 30" Rear-Engine Riding Mower (2007) Mower Housing Suspension Parts Diagram

30" Rear-Engine Riding Mower

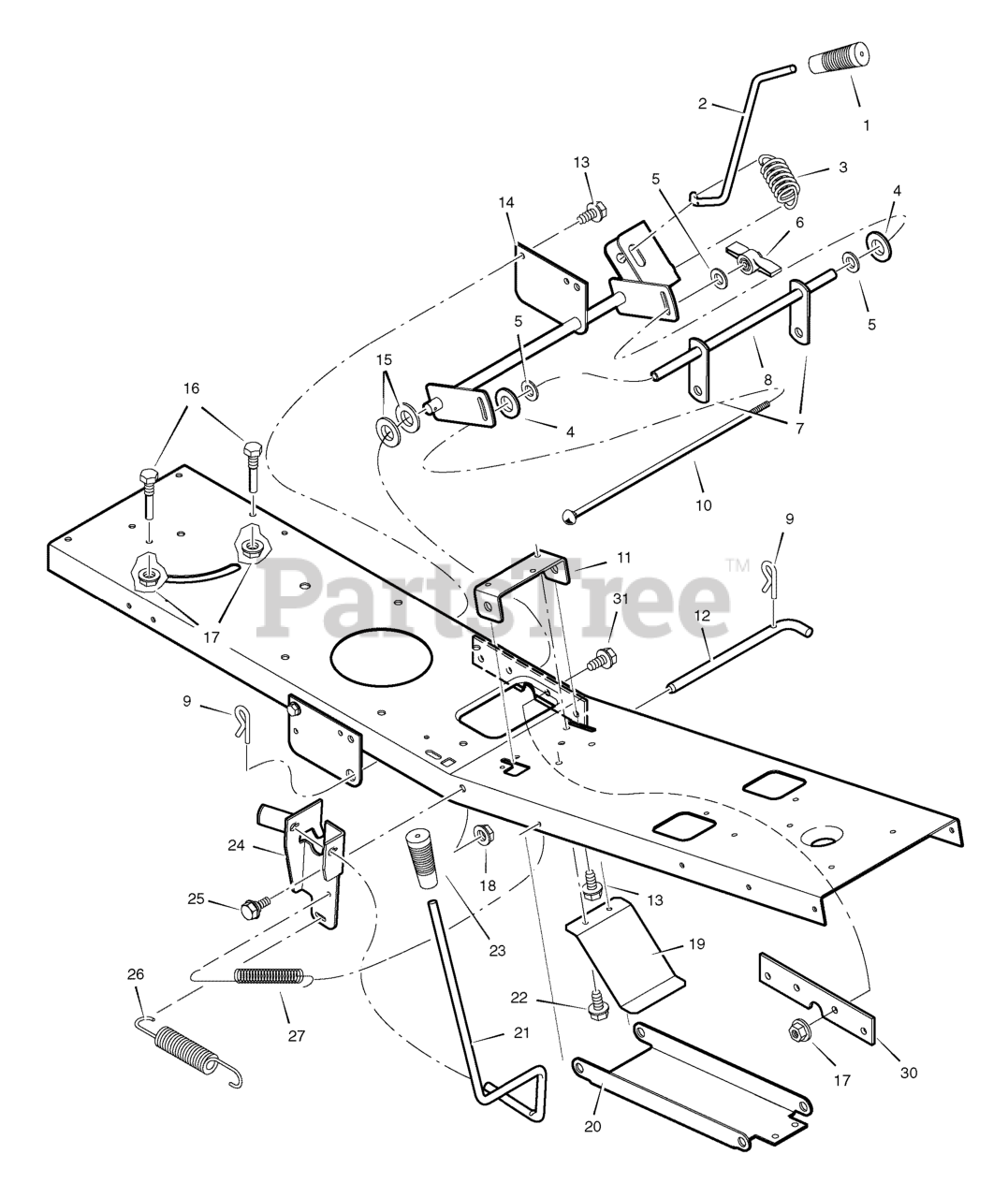

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 092697MA

GRIP, Lift Lever
(Superseded to 1753233YP)

$7.49

$

In Stock, Qty 20+

0

2

Murray 1401117MA

LEVER, Lift

$

$

Not available

3

Murray 165X154MA

SPRING, Extension

$5.49

$

Usually ships in 2-12 days

0

4

Murray 094137MA

PAD, Friction

$23.99

$

In Stock, only 2 left!

0

5

Murray 017X45MA

WASHER

$

$

Not available

6

Murray 095004MA

WINGNUT

$7.49

$

In Stock, only 2 left!

0

7

Murray 1401033E701MA

LINK, Lift

$24.99

$

Usually ships in 2-12 days

0

8

Murray 1401096MA

TUBE, Spacer

$

$

Not available

9

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

10

Murray 002X93MA

BOLT, Carriage

$12.99

$

Usually ships in 2-12 days

0

11

Murray 1401030E701MA

BRACKET, Front Hanger Pivot

$5.99

$

Usually ships in 2-12 days

0

12

Murray 1401118MA

PIN, Front Hanger

$44.99

$

Usually ships in 2-12 days

0

13

Murray 26X249MA

SCREW

$

$

Not available

14

Murray 1401129E701MA

ARM ASSEMBLY, Lifter

$52.99

$

Usually ships in 2-12 days

0

15

Murray 17X206MA

WASHER

$4.99

$

Usually ships in 2-12 days

0

16

Murray 093349MA

SCREW, Guide

$4.99

$

Usually ships in 2-12 days

0

17

Murray 015X79MA

NUT, Flange
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

18

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 1401147MA

SPRING, Leaf

$9.49

$

Usually ships in 2-12 days

0

20

Murray 1401040E701MA

HANGER, Front

$51.99

$

Usually ships in 2-12 days

0

21

Murray 1401116MA

LEVER, PTO

$54.99

$

Usually ships in 2-12 days

0

22

Murray 26X229MA

SCREW

$4.49

$

In Stock, only 1 left!

0

23

Murray 094198MA

GRIP, PTO

$6.49

$

Usually ships in 2-12 days

0

24

Murray 1401369E701MA

BRACKET, PTO

$45.99

$

Usually ships in 2-12 days

0

25

Murray 009X42MA

BOLT, Shoulder
(Superseded to 704206)

$7.99

$

Usually ships in 2-12 days

0

26

Murray 165X157MA

SPRING, Extension

$12.99

$

In Stock, only 2 left!

0

27

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 2 left!

0

30

Murray 1401260MA

PLATE, Reinforcement
(Superseded to 1401260E701MA)

$32.99

$

Usually ships in 2-12 days

0

31

Murray 26X267MA

SCREW

$4.99

$

Usually ships in 2-12 days

0
