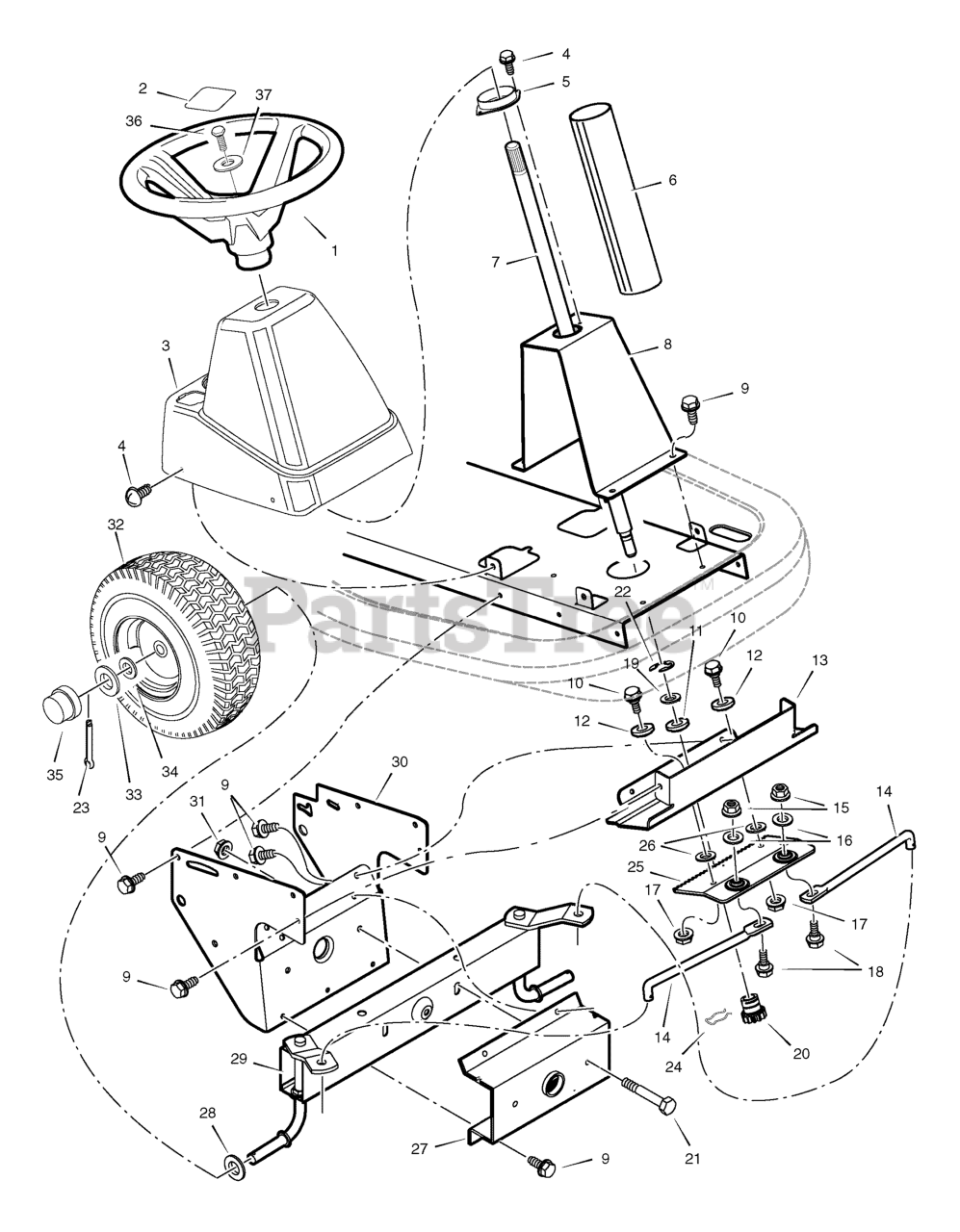

309006x50C - Murray 30" Rear-Engine Riding Mower (2007) Steering Parts Diagram

30" Rear-Engine Riding Mower

Steering Parts Diagram

  • Title

1

Murray 095336MA

WHEEL, Steering

$110.99

$

In Stock, only 1 left!

0

2

Murray 711326MA

INSERT, Steering

$7.49

$

Usually ships in 2-12 days

0

3

Murray 1401044MA

CONSOLE, Low (Black)

$62.99

$

Usually ships in 2-12 days

0

4

Murray 26X250MA

SCREW
(Superseded to 703994)

$4.49

$

In Stock, only 3 left!

0

5

Murray 1401090MA

BEARING, Upper Steering

$5.49

$

In Stock, only 1 left!

0

6

Murray 1401107MA

TUBE, Steering

$23.99

$

Usually ships in 2-12 days

0

7

Murray 1401100MA

SHAFT, Steering

$81.99

$

In Stock, only 1 left!

0

8

Murray 1401055E701MA

SUPPORT, Steering

$

$

Not available

9

Murray 26X249MA

SCREW

$

$

Not available

10

Murray 009X67MA

BOLT, Shoulder

$5.49

$

In Stock, Qty 6

0

11

Murray 1401098MA

BEARING, Lower Steering

$4.99

$

Usually ships in 2-12 days

0

12

Murray 1401102MA

ROLLER

$41.99

$

In Stock, only 2 left!

0

13

Murray 1401058E701MA

PLATE, Gear Mounting

$85.99

$

Usually ships in 2-12 days

0

14

Murray 1401123E701MA

LINK, Drag

$18.99

$

Usually ships in 2-12 days

0

15

Murray 015X84MA

NUT, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

16

Murray 17X104MA

WASHER
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

17

Murray 015X88MA

NUT, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

18

Murray 01X111MA

BOLT, Hex

$4.49

$

In Stock, only 1 left!

0

19

Murray 17X118ZMA

WASHER

$3.49

$

In Stock, only 2 left!

0

20

Murray 1401099MA

GEAR, Pinion

$

$

Not available

21

Murray 01X146MA

BOLT, Hex

$3.99

$

Usually ships in 2-12 days

0

22

Murray 011X23MA

E-RING, Retainer

$4.49

$

In Stock, only 4 left!

0

23

Murray 030X35MA

PIN, Cotter

$4.49

$

Usually ships in 2-12 days

0

24

Murray 094131MA

RETAINER, Spring

$4.99

$

In Stock, only 1 left!

0

25

Murray 1401046E701MA

RACK, Steering

$47.99

$

Usually ships in 2-12 days

0

26

Murray 17X201MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

27

Murray 1401376E701MA

BRACKET, Axle Front

$148.99

$

Usually ships in 2-12 days

0

28

Murray 17X157MA

WASHER

$4.49

$

In Stock, Qty 6

0

29

Murray 1401250E701MA

AXLE & SPINDLE ASSEMBLY

$445.99

$

Usually ships in 2-12 days

0

30

Murray 1401059E701MA

BRACKET, Support

$72.99

$

Usually ships in 2-12 days

0

31

Murray 15X118MA

NUT, Flange

$4.49

$

Usually ships in 2-12 days

0

32

Murray 1401381601MA

WHEEL, Front

$107.99

$

In Stock, only 1 left!

0

33

Murray 17X197MA

WASHER

$8.49

$

In Stock, only 4 left!

0

34

Murray 17X157MA

WASHER

$4.49

$

In Stock, Qty 6

0

35

Murray 094618MA

CAP, Hub

$5.99

$

In Stock, Qty 20+

0

36

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

37

Murray 17X146MA

WASHER

$5.49

$

Usually ships in 2-12 days

0
