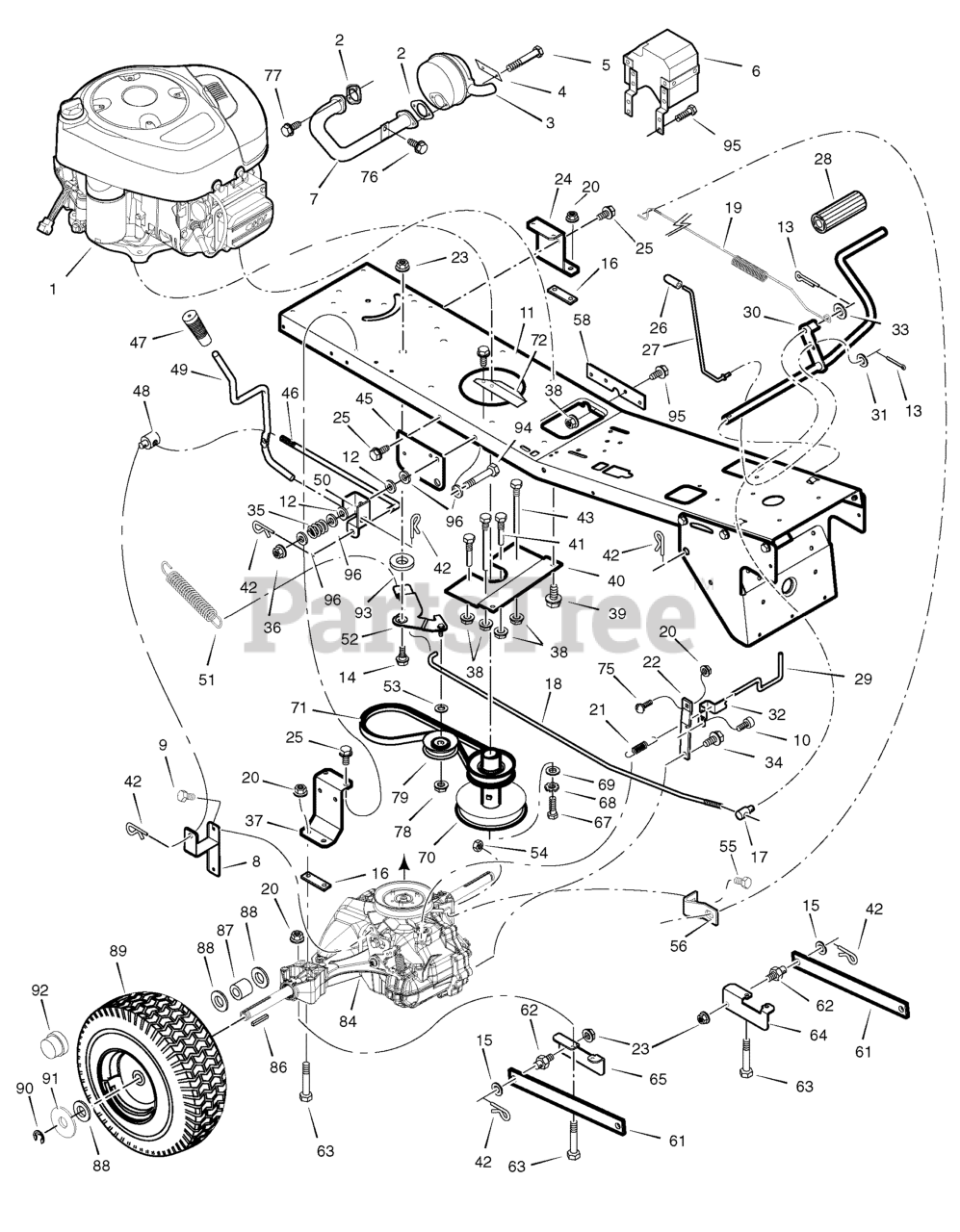

309007X151B (7800532) - Murray 30" Lawn Tractor (2009-10) Motion Drive Parts Diagram

30" Lawn Tractor

Motion Drive Parts Diagram

  • Title

1

Murray 215807-0135-B1

ENGINE, Briggs & Stratton *

$

$

Currently unavailable

2

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

3

Murray 1401358MA

MUFFLER

$87.99

$

In Stock, only 1 left!

0

4

Murray 092378MA

LOCK, Muffler Screw

$5.49

$

In Stock, Qty 10

0

5

Murray 01X134MA

BOLT, Hex

$10.99

$

In Stock, only 4 left!

0

6

Murray 1401375MA

SHIELD, Heat

$87.99

$

Usually ships in 2-12 days

0

7

Murray 1401357MA

TUBE, Exhaust

$65.99

$

Usually ships in 2-12 days

0

8

Murray 1741784ZYP

BRACKET, Shift Lever Weldment

$31.99

$

Usually ships in 2-12 days

0

9

Murray 001X75MA

BOLT, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 01X121MA

SCREW
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

11

Murray 885058ZYP

FRAME

Note: (Use on models before Serial Number 2013621655)

$233.99

$

Usually ships in 2-12 days

0

11

Murray 885370ZYP

FRAME

Note: (Use on models after Serial Number 2013621655)

$227.99

$

Usually ships in 2-12 days

0

12

Murray 17X217MA

WASHER

$4.99

$

Usually ships in 2-12 days

0

13

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

14

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 10

0

15

Murray 017X91MA

WASHER

$5.49

$

In Stock, only 2 left!

0

16

Murray 1742526ZYP

PLATE, Transaxle

$21.99

$

Usually ships in 2-12 days

0

17

Murray 094815ZMA

NUT, Adjusting

$21.99

$

Usually ships in 2-12 days

0

18

Murray 1401305ZMA

ROD, Clutch Hydro

$71.99

$

Usually ships in 2-12 days

0

19

Murray 165X165MA

SPRING, Brake

$41.99

$

In Stock, only 1 left!

0

20

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 1742524YP

SPRING, Roll Release

$21.99

$

Usually ships in 2-12 days

0

22

Murray 1742527ZYP

BRACKET, Torque

$29.99

$

Usually ships in 2-12 days

0

23

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

24

Murray 1401268E701MA

BRACKET, Left Transaxle

$38.99

$

Usually ships in 2-12 days

0

25

Murray 26X249MA

SCREW

$

$

Not available

26

Murray 1401337MA

GRIP

$10.99

$

Usually ships in 2-12 days

0

27

Murray 1401112MA

ROD, Parking Brake

$9.49

$

Usually ships in 2-12 days

0

28

Murray 021544MA

PEDAL
(Superseded to 1727261SM)

$9.99

$

Usually ships in 2-12 days

0

29

Murray 1401304ZMA

ROD, Roll Release

$35.99

$

In Stock, only 1 left!

0

30

Murray 1401127E701MA

ROD, Clutch/Brake

$95.99

$

Usually ships in 2-12 days

0

31

Murray 017X38MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

32

Murray 1401303E701MA

BRACKET, Roll Release

$28.99

$

In Stock, only 1 left!

0

33

Murray 017X53MA

WASHER
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

34

Murray 26X216MA

SCREW

$6.99

$

In Stock, Qty 5

0

35

Murray 164X39MA

Spring, Compression

$13.99

$

Usually ships in 2-12 days

0

36

Murray 15X119MA

NUT

$3.49

$

Usually ships in 2-12 days

0

37

Murray 1401042E701MA

BRACKET, Right Transaxle

$33.99

$

Usually ships in 2-12 days

0

38

Murray 015X79MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

39

Murray 0025X7MA

SCREW
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

40

Murray 1401057E701MA

PLATE, Belt Guide

$13.99

$

Usually ships in 2-12 days

0

41

Murray 1401105MA

GUIDE, Belt, Long

$5.49

$

In Stock, Qty 5

0

42

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

43

Murray 1401104MA

GUIDE, Belt, Short

$

$

Not available

45

Murray 1401032E701MA

BRACKET, Lift Pivot

$26.99

$

Usually ships in 2-12 days

0

46

Murray 1401307ZMA

ROD, Shift Link

$12.99

$

Usually ships in 2-12 days

0

47

Murray 1741756MA

GRIP

$5.99

$

Usually ships in 2-12 days

0

48

Murray 1401148ZMA

NUT, Adjusting

$9.49

$

Usually ships in 2-12 days

0

49

Murray 1401356MA

LEVER, Shift

$54.99

$

Usually ships in 2-12 days

0

50

Murray 1401340ZMA

BRACKET, Pivot

$92.99

$

Usually ships in 2-12 days

0

51

Murray 165X147MA

SPRING, Variator Drive

$15.99

$

Usually ships in 2-12 days

0

52

Murray 1741785ZYP

ARM, Idler

Note: (Use on models before Serial Number 2013621655)

$49.99

$

Usually ships in 2-12 days

0

52

Murray 885372ZYP

ARM, Idler

Note: (Use on models after Serial Number 2013621655)

$80.99

$

Usually ships in 2-12 days

0

53

Murray 017X91MA

WASHER

$5.49

$

In Stock, only 2 left!

0

54

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

55

Murray 0025X3MA

SCREW, Hex

$4.99

$

Usually ships in 2-12 days

0

56

Murray 1742528ZYP

BRACKET, Brake Spring Extension

Note: (Use on models before Serial Number 2013621655)

$23.99

$

Usually ships in 2-12 days

0

56

Murray 885373ZYP

BRACKET, Brake Spring Extension

Note: (Use on models after Serial Number 2013621655)

$33.99

$

Usually ships in 2-12 days

0

58

Murray 1401260E701MA

PLATE, Reinforcement

$31.99

$

Usually ships in 2-12 days

0

61

Murray 1401031E701MA

ARM, Rear

$16.99

$

Usually ships in 2-12 days

0

62

Murray 094067MA

PIN, Threaded
(Superseded to 704054)

$7.49

$

In Stock, Qty 11

0

63

Murray 01X156MA

BOLT, Hex
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

64

Murray 1401301E701MA

BRACKET, Left Rear Hanger

$19.99

$

Usually ships in 2-12 days

0

65

Murray 1401302E701MA

BRACKET, Right Rear Hanger

$19.99

$

Usually ships in 2-12 days

0

67

Murray 01X140MA

BOLT, Hex

$5.49

$

In Stock, only 1 left!

0

68

Murray 019X35MA

LOCKWASHER

$4.99

$

In Stock, only 2 left!

0

69

Murray 17X170MA

WASHER

$

$

Not available

70

Murray 1401308MA

PULLEY STACK

$204.99

$

Usually ships in 2-12 days

0

71

Murray 1742461YP

BELT, Drive, 4L

$21.99

$

Usually ships in 2-12 days

0

72

Murray 1401396MA

HEAT SHIELD

$12.99

$

Usually ships in 2-12 days

0

75

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

76

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

77

Murray 06X103MA

SCREW

$6.49

$

In Stock, only 2 left!

0

78

Murray 015X98MA

LOCKNUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

79

Murray 1401309MA

PULLEY, Idler

$

$

Not available

84

TRANSAXLE **

$

$

Not available

86

Murray 056534MA

KEY, Square

$4.99

$

In Stock, only 1 left!

0

87

Murray 1401103MA

SPACER, Rear Wheel

$10.99

$

Usually ships in 2-12 days

0

88

Murray 17X160MA

WASHER

$4.99

$

In Stock, Qty 13

0

89

Murray 1401120MA

WHEEL & TIRE ASSEMBLY

$152.99

$

Usually ships in 2-12 days

0

--

Murray 1664090SM

TUBE (ONLY)

$26.99

$

In Stock, only 3 left!

0

--

Murray 1720337SM

TIRE (ONLY)

$87.99

$

Usually ships in 2-12 days

0

90

Murray 0011X3MA

E-Ring

$5.49

$

In Stock, Qty 15

0

91

Murray 17X195MA

WASHER

$4.99

$

In Stock, Qty 20+

0

92

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

93

Murray 17X174ZMA

WASHER

$6.49

$

Usually ships in 2-12 days

0

94

Murray 01X143MA

BOLT, Hex

$3.99

$

Usually ships in 2-12 days

0

95

Murray 26X267MA

SCREW

$4.99

$

In Stock, Qty 20+

0

96

Murray 17X217MA

WASHER, Delrin

$4.99

$

Usually ships in 2-12 days

0
