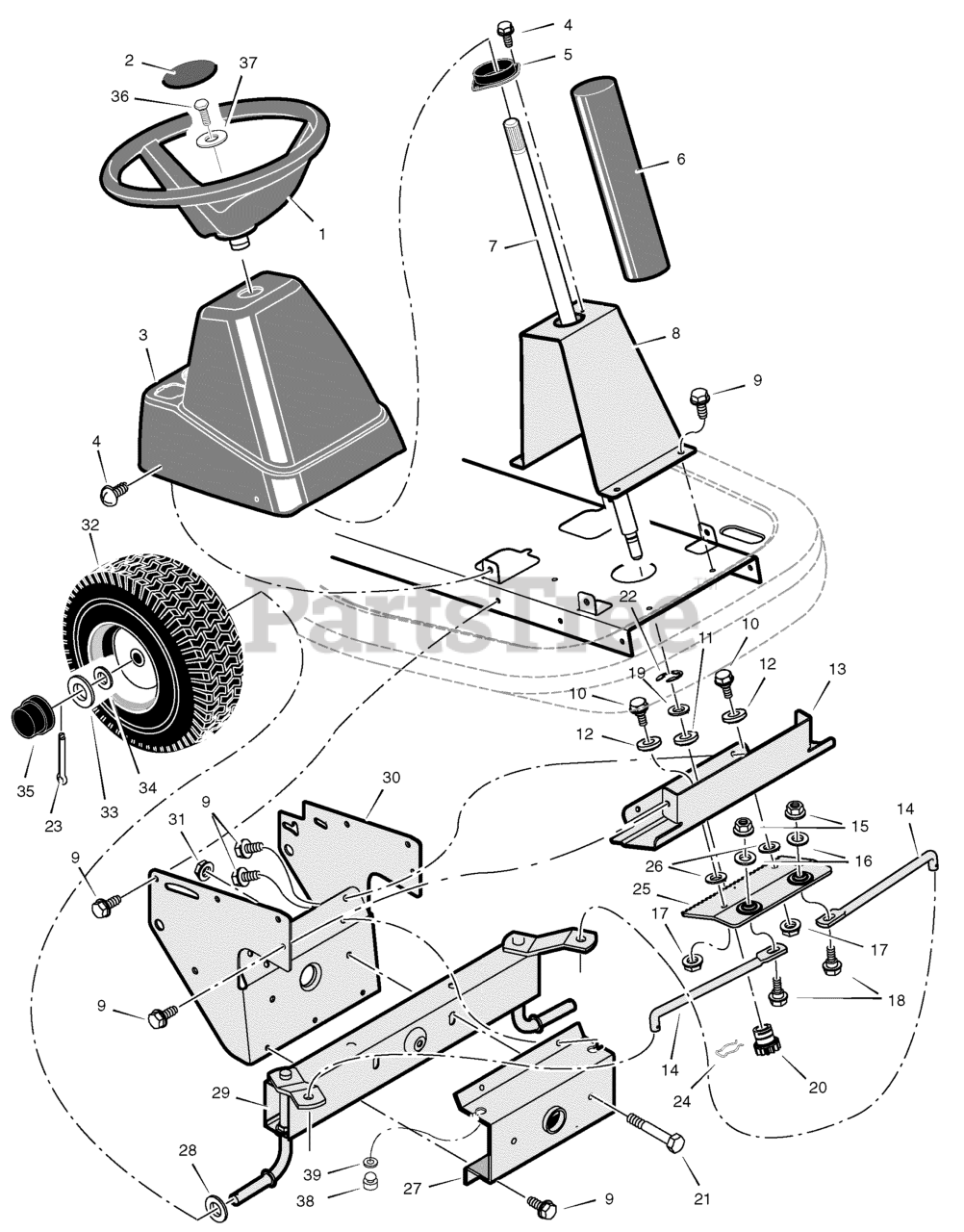

309008x99B - Briggs & Stratton 30" Rear-Engine Riding Mower (2005) (AAFES) Steering Parts Diagram

30" Rear-Engine Riding Mower

Steering Parts Diagram

  • Title

1

Murray 94134

Wheel, Steering

$1.49

$

Usually ships in 2-12 days

0

2

Murray 95338

Insert, Steering Wheel

$3.99

$

Usually ships in 2-12 days

0

3

Murray 1401044

Console, Low -Black

$62.99

$

Usually ships in 2-12 days

0

4

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, only 3 left!

0

5

Murray 1401090

Bearing, Upper Steering
(Superseded to 1401090MA)

$5.49

$

In Stock, only 1 left!

0

6

Murray 1401226

Tube, Steering

$

$

Currently unavailable

7

Murray 1401100

Shaft, Steering

$81.99

$

In Stock, only 1 left!

0

8

Murray 1401055E701

Support, Steering

$

$

Not available

9

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

10

Murray 009X67

Bolt, Shoulder
(Superseded to 009X67MA)

$5.49

$

In Stock, Qty 6

0

11

Murray 1401098

Bearing, Lower Steering
(Superseded to 1401098MA)

$4.99

$

Usually ships in 2-12 days

0

12

Murray 1401102

Roller
(Superseded to 1401102MA)

$41.99

$

In Stock, only 2 left!

0

13

Murray 1401058E701

Plate, Gear Mounting
(Superseded to 1401058E701MA)

$85.99

$

Usually ships in 2-12 days

0

14

Murray 1401123E701

Link, Drag
(Superseded to 1401123E701MA)

$18.99

$

Usually ships in 2-12 days

0

15

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

16

Murray 17X104

Washer

$7.49

$

In Stock, only 2 left!

0

17

Murray 015X88

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

18

Murray 01X111

Bolt, Hex
(Superseded to 01X111MA)

$4.49

$

In Stock, only 1 left!

0

19

Murray 17X118

WASHER, 1-1.3 16G FLT

$3.49

$

In Stock, only 2 left!

0

20

Murray 1401099

Gear, Pinion
(Superseded to 1401099MA)

$

$

Not available

21

Murray 01X146

Bolt, Hex
(Superseded to 01X146MA)

$3.99

$

Usually ships in 2-12 days

0

22

Murray 011X23

E-Ring, Retainer
(Superseded to 011X23MA)

$4.49

$

In Stock, only 4 left!

0

23

Murray 030X35

Pin, Cotter
(Superseded to 030X35MA)

$4.49

$

Usually ships in 2-12 days

0

24

Murray 94131

Retainer, Spring

$4.99

$

In Stock, only 1 left!

0

25

Murray 1401046E701

Rack, Steering
(Superseded to 1401046E701MA)

$47.99

$

Usually ships in 2-12 days

0

26

Murray 17X201

Washer
(Superseded to 17X201MA)

$3.99

$

Usually ships in 2-12 days

0

27

Murray 1401376E701

Bracket, Axle Front

$148.99

$

Usually ships in 2-12 days

0

28

Murray 17X157

Washer
(Superseded to 17X157MA)

$4.49

$

In Stock, Qty 6

0

29

Murray 1401250E701

Axle & Spindle Assembly

$445.99

$

Usually ships in 2-12 days

0

30

Murray 1401059E701

Bracket, Support

$72.99

$

Usually ships in 2-12 days

0

31

Murray 15X118

Nut, Flange
(Superseded to 15X118MA)

$4.49

$

Usually ships in 2-12 days

0

32

Murray 1401381-601

Wheel, Front *

$

$

Currently unavailable

33

Murray 17X197

Washer

$

$

Not available

34

Murray 17X157

Washer
(Superseded to 17X157MA)

$4.49

$

In Stock, Qty 6

0

35

Murray 94618

Cap, Hub

$5.99

$

In Stock, Qty 20+

0

36

Murray 0025X3

Screw, Hex
(Superseded to 0025X3MA)

$4.99

$

Usually ships in 2-12 days

0

37

Murray 17X146

Washer
(Superseded to 17X146MA)

$5.49

$

Usually ships in 2-12 days

0

38

Murray 1401377

Bumper, Rubber
(Superseded to 1401377MA)

$4.99

$

In Stock, only 2 left!

0

39

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, only 2 left!

0
