309029x11C - Murray 30" Rear-Engine Riding Mower (2005) Chassis & Hood Parts Diagram

30" Rear-Engine Riding Mower

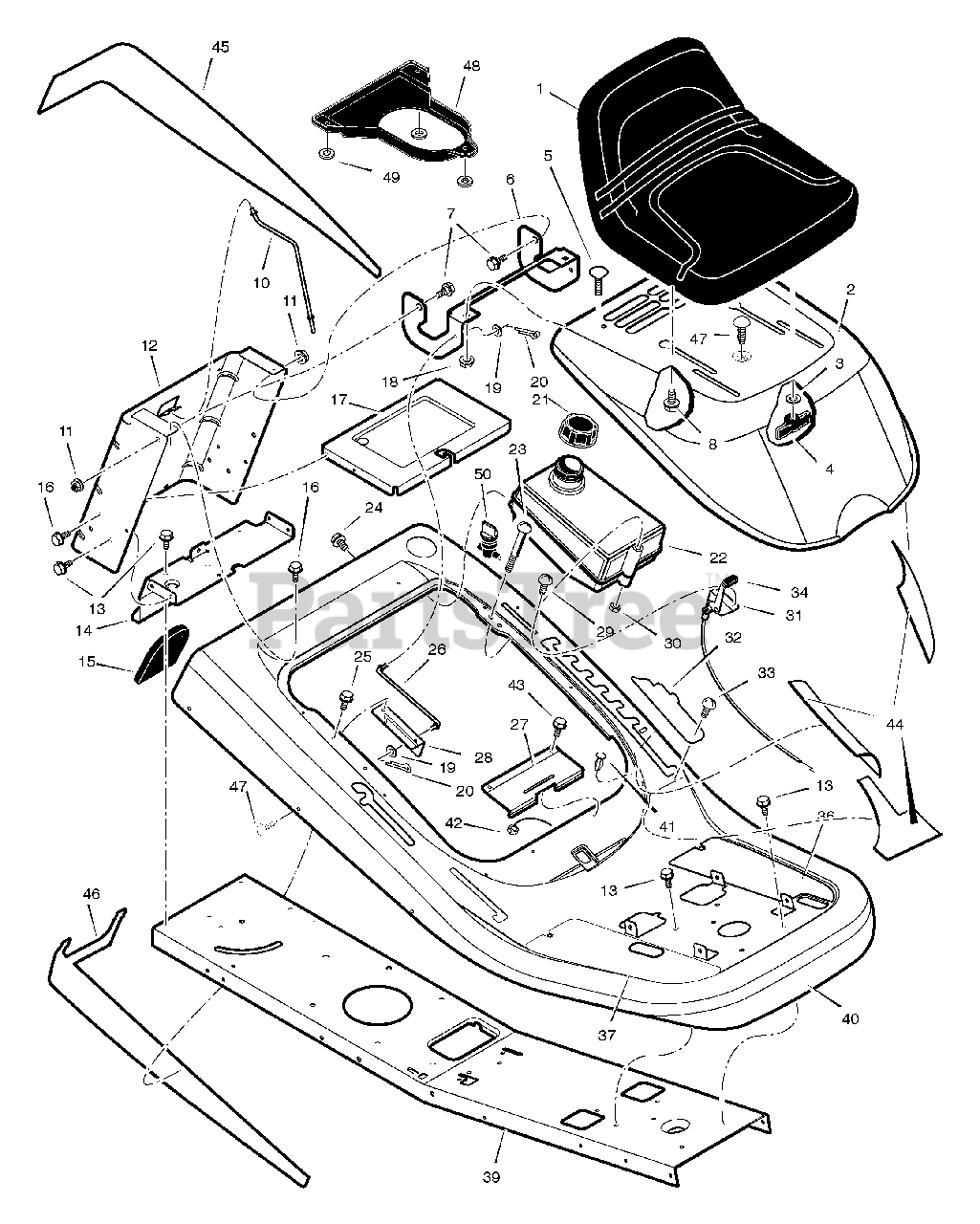

Chassis & Hood Parts Diagram

  • Title

1

Murray MU690566

Seat

$

$

Currently unavailable

2

Murray MU1401379E549MA

HOOD

$

$

Currently unavailable

3

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

4

Murray MU1001054

BOLT, Wing

$

$

Currently unavailable

5

Murray MU002X16

BOLT, Carriage

$

$

Currently unavailable

6

Murray MU1401378E701MA

BRACKET, Hinge

$

$

Currently unavailable

7

Murray MU009X29

BOLT, Shoulder

$

$

Currently unavailable

8

Murray MU009X56

BOLT, Shoulder

$

$

Currently unavailable

10

Murray MU1401113

ROD, Battery

$

$

Currently unavailable

11

Murray MU015X84

NUT, Flange

$

$

Currently unavailable

12

Murray MU1401025E701

Plate, Rear

$

$

Currently unavailable

13

Murray MU26X249

SCREW

$

$

Currently unavailable

14

Murray MU1401050E701

Plate, Hitch

$

$

Currently unavailable

15

Murray MU1401087

Cover

$

$

Currently unavailable

16

Murray MU26X263

SCREW

$

$

Currently unavailable

17

Murray MU1401076E701MA

TRAY, Battery

$

$

Currently unavailable

18

Murray MU015X79

NUT, Flange

$

$

Currently unavailable

19

Murray MU017X45

WASHER

$

$

Currently unavailable

20

Murray MU0031X6

PIN, Cotter

$

$

Currently unavailable

21

Murray MU092317

Cap, Fuel Tank

Note: (Included with Ref. No. 22)

$

$

Currently unavailable

22

Murray MU7601040

Tank, Fuel

$

$

Currently unavailable

23

Murray MU06X111

SCREW

Note: (Included with Ref. No. 22)

$

$

Currently unavailable

24

Murray MU26X253

SCREW

$

$

Currently unavailable

25

Murray MU26X263

SCREW

$

$

Currently unavailable

26

Murray MU1401110

ROD, Hood Prop

$

$

Currently unavailable

27

Murray MU1401282

SPRING, Seat Deck

$

$

Currently unavailable

28

Murray MU1401297E701

BRACKET, Prop Rod

$

$

Currently unavailable

29

Murray MU26X201

SCREW

$

$

Currently unavailable

30

Murray MU15X116

NUT, NY-Lock

$

$

Currently unavailable

31

Murray MU1401248

CONTROL, Throttle

$

$

Currently unavailable

32

Murray MU1401084

Cover, Detent (Black)

$

$

Currently unavailable

33

Murray MU009X47

BOLT, Shoulder

$

$

Currently unavailable

36

Murray MU1401229

Footmat, Left (Black)

$

$

Currently unavailable

37

Murray MU1401228

Footmat, Right (Black)

$

$

Currently unavailable

39

Murray MU1401370E701

FRAME

$

$

Currently unavailable

40

Murray MU1401349E549

DECK, Seat

$

$

Currently unavailable

41

Murray MU094744

Bumper

$

$

Currently unavailable

42

Murray MU15X116

NUT

Note: (Included with Ref. No. 22)

$

$

Currently unavailable

43

Murray MU0025X2

SCREW

$

$

Currently unavailable

44

Murray MU7601036

Kit, Foil Heat Shield

$

$

Currently unavailable

45

Murray MU1401073

Trim, Left

$

$

Currently unavailable

46

Murray MU1401072

Trim, Right

$

$

Currently unavailable

47

Murray MU0193X1

FASTENER, Panel

$

$

Currently unavailable

48

Murray MU1401380

Plenum

$

$

Currently unavailable

49

Murray MU028X44

NUT, Speed

$

$

Currently unavailable

50

Murray MU698183

Valve, Fuel Shut-Off

$

$

Currently unavailable

--

Murray 133010

Book, Instruction

$

$

Currently unavailable
