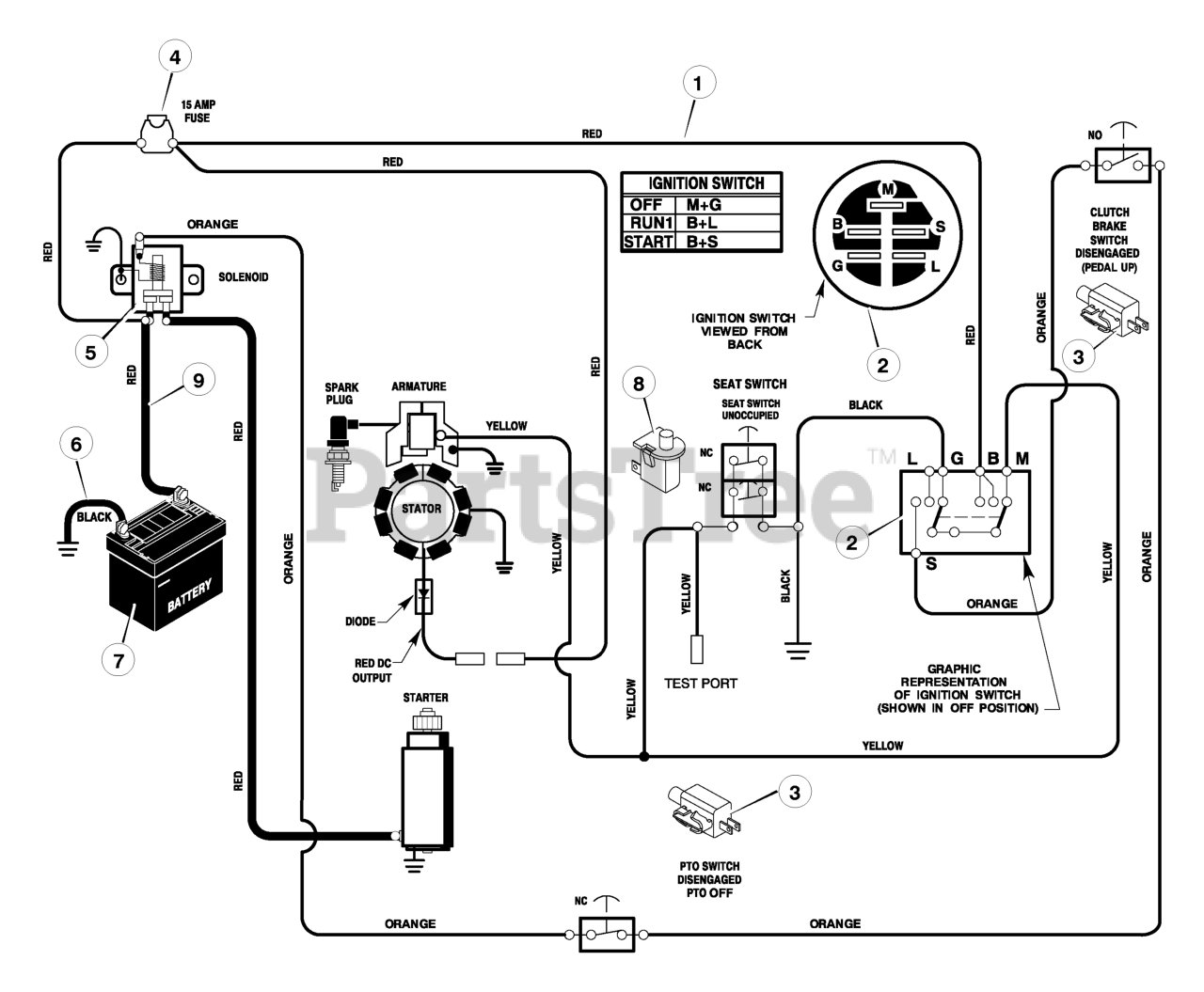

309029x11C - Murray 30" Rear-Engine Riding Mower (2005) Electrical System Parts Diagram

30" Rear-Engine Riding Mower

Electrical System Parts Diagram

  • Title
1

Murray MU250X115

Harness, Chassis Wire

$

$

Currently unavailable

2

Murray MU1401149

Switch, Ignition

$

$

Currently unavailable

--

Murray MU327349

Key, Ignition

$

$

Currently unavailable

3

Murray MU1001575

Switch, Limit

$

$

Currently unavailable

$

$

Currently unavailable

--

Murray MU407078

Holder, Fuse

$

$

Currently unavailable

5

Murray MU1002004

Solenoid

$

$

Currently unavailable

--

Murray MU26X229

SCREW, Mounting

$

$

Currently unavailable

--

Murray MU15X116

Locknut

$

$

Currently unavailable

6

Murray MU24X37MA

CABLE, Battery Ground

$

$

Currently unavailable

7

Murray MU092739

Battery

$

$

Currently unavailable

--

Murray MU002X82

BOLT, Carriage

$

$

Currently unavailable

--

Murray MU014X79

Wingnut

$

$

Currently unavailable

8

Murray MU094159

Switch, Seat Sensor

$

$

Currently unavailable

9

Murray MU024X24

CABLE, Red Batery

$

$

Currently unavailable

--

Murray MU690604

Boot, Positive Terminal

$

$

Currently unavailable
