309029x11C - Murray 30" Rear-Engine Riding Mower (2005) Mower Housing Parts Diagram

30" Rear-Engine Riding Mower

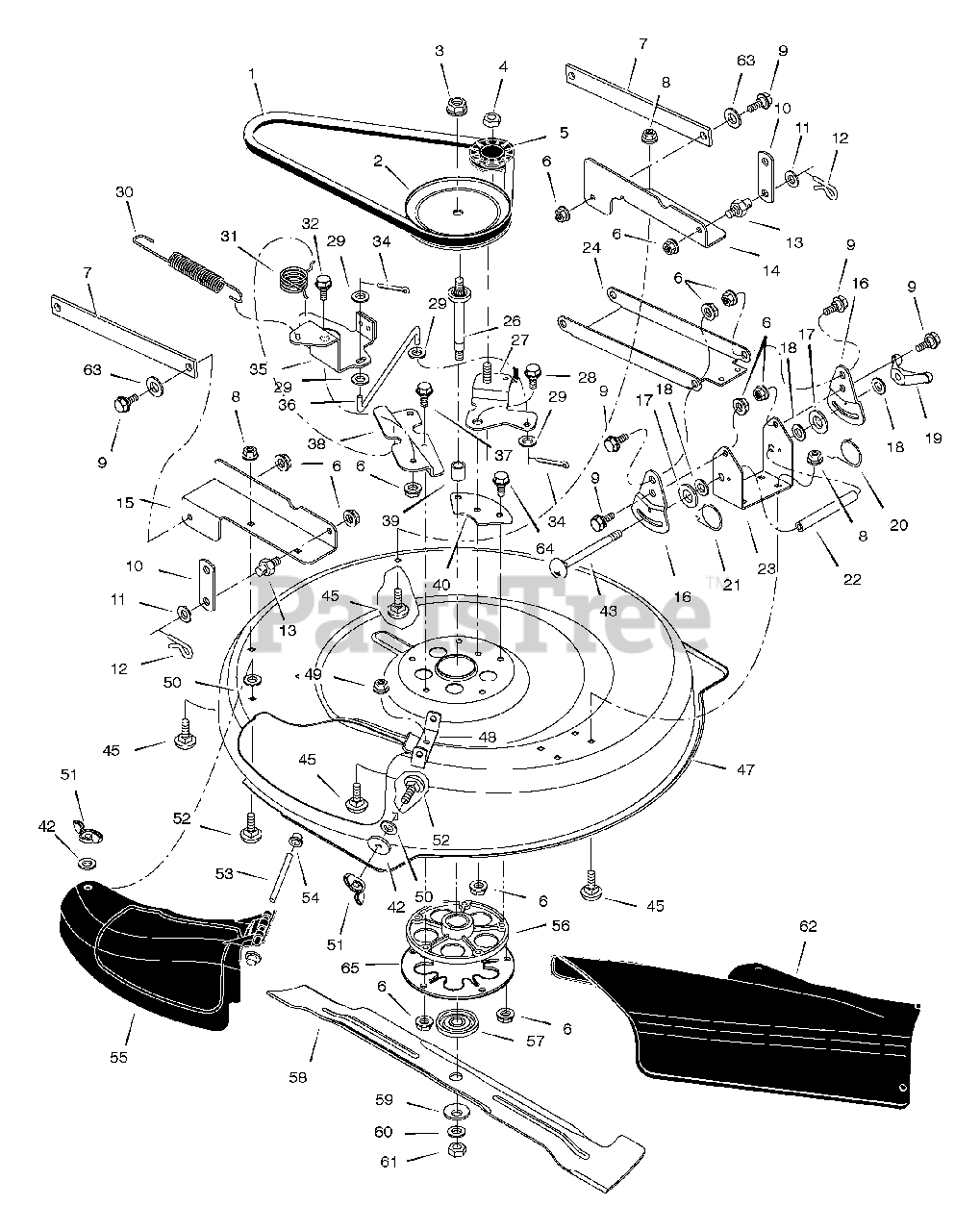

Mower Housing Parts Diagram

  • Title

1

Murray MU37X111

BELT, Blade Drive

$

$

Currently unavailable

2

Murray MU1401092

PULLEY, Input

$

$

Currently unavailable

3

Murray MU15X140

Locknut

$

$

Currently unavailable

4

Murray MU015X98

NUT, Flange

$

$

Currently unavailable

5

Murray MU1401252

PULLEY, Idler

$

$

Currently unavailable

6

Murray MU015X84

NUT, Flange

$

$

Currently unavailable

7

Murray MU1401031E701

Arm, Rear

$

$

Currently unavailable

8

Murray MU015X79

NUT, Flange

$

$

Currently unavailable

9

Murray MU009X58

BOLT, Shoulder

$

$

Currently unavailable

10

Murray MU1401033E701

Link, Lift

$

$

Currently unavailable

11

Murray MU017X45

WASHER

$

$

Currently unavailable

12

Murray MU0031X4

PIN, Hair

$

$

Currently unavailable

13

Murray MU094067

PIN, Threaded Shoulder

$

$

Currently unavailable

14

Murray MU1401047E701

BRACKET, Left Rear

$

$

Currently unavailable

15

Murray MU1401296E701

BRACKET, Right Rear

$

$

Currently unavailable

16

Murray MU1401038E701

Plate, Adjustment

$

$

Currently unavailable

17

Murray MU094137

Pad, Friction

$

$

Currently unavailable

18

Murray MU017X45

WASHER

$

$

Currently unavailable

19

Murray MU095004

Wingnut

$

$

Currently unavailable

20

Murray MU166X43

SPRING, Left Torsion

$

$

Currently unavailable

21

Murray MU166X42

SPRING, Right Torsion

$

$

Currently unavailable

22

Murray MU1401095

Tube, Spacer

$

$

Currently unavailable

23

Murray MU1401037E701

BRACKET, Deck

$

$

Currently unavailable

24

Murray MU1401369E701

HANGER, Front

$

$

Currently unavailable

26

Murray MU1401065

Shaft, Splined

$

$

Currently unavailable

27

Murray MU1401258E701

Arm Assembly , Idler

$

$

Currently unavailable

28

Murray MU009X39

BOLT, Shoulder

$

$

Currently unavailable

29

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

30

Murray MU165X157

SPRING, Extension

$

$

Currently unavailable

31

Murray MU166X46

SPRING, Torsion

$

$

Currently unavailable

32

Murray MU009X42

BOLT, Shoulder

$

$

Currently unavailable

34

Murray MU030X20

PIN, Cotter

$

$

Currently unavailable

35

Murray MU1401185E701

Arm Assembly, Brake

$

$

Currently unavailable

36

Murray MU1401119

Link, Idler Arm

$

$

Currently unavailable

37

Murray MU0025X7

BOLT

$

$

Currently unavailable

38

Murray MU1401052E701

BRACKET, Brake Mounting

$

$

Currently unavailable

39

Murray MU1401094

SPACER, Jackshaft

$

$

Currently unavailable

40

Murray MU1401259 Z

Plate, Idler Mounting

$

$

Currently unavailable

42

Murray MU019X45

WASHER

$

$

Currently unavailable

43

Murray MU002X94

BOLT, Carriage

$

$

Currently unavailable

45

Murray MU002X53

BOLT, Carriage

$

$

Currently unavailable

47

Murray MU1401236E701

Housing, Blade

$

$

Currently unavailable

48

Murray MU1401106E701

Hinge, Mulching Cover

$

$

Currently unavailable

49

Murray MU015X88

NUT, Flange

$

$

Currently unavailable

50

Murray MU028X76

NUT, Speed

$

$

Currently unavailable

51

Murray MU014X86

Wingnut

$

$

Currently unavailable

52

Murray MU002X74

BOLT, Carriage

$

$

Currently unavailable

53

Murray MU091767 Z

ROD, Chute Deflector

$

$

Currently unavailable

54

Murray MU028X23

Cap, Push

$

$

Currently unavailable

55

Murray MU1401080

Cover, Mulch

$

$

Currently unavailable

56

Murray MU094305

Mandrel Housing

$

$

Currently unavailable

57

Murray MU1001035

Adapter, Blade

$

$

Currently unavailable

58

Murray MU1401079E701

Blade

$

$

Currently unavailable

59

Murray MU17X166

WASHER, Cup

$

$

Currently unavailable

60

Murray MU17X165

WASHER

$

$

Currently unavailable

61

Murray MU15X100

NUT, Blade Mount

$

$

Currently unavailable

62

Murray MU1401081

Deflector, Chute

$

$

Currently unavailable

63

Murray MU017X91

WASHER

$

$

Currently unavailable

64

Murray MU025X23

BOLT

$

$

Currently unavailable

65

Murray MU1001952E701MA

Plate, Jackshaft Support

$

$

Currently unavailable
