30921 R - Troy-Bilt Grass Collector CART/GRASS COLLECTOR Parts Diagram

Grass Collector

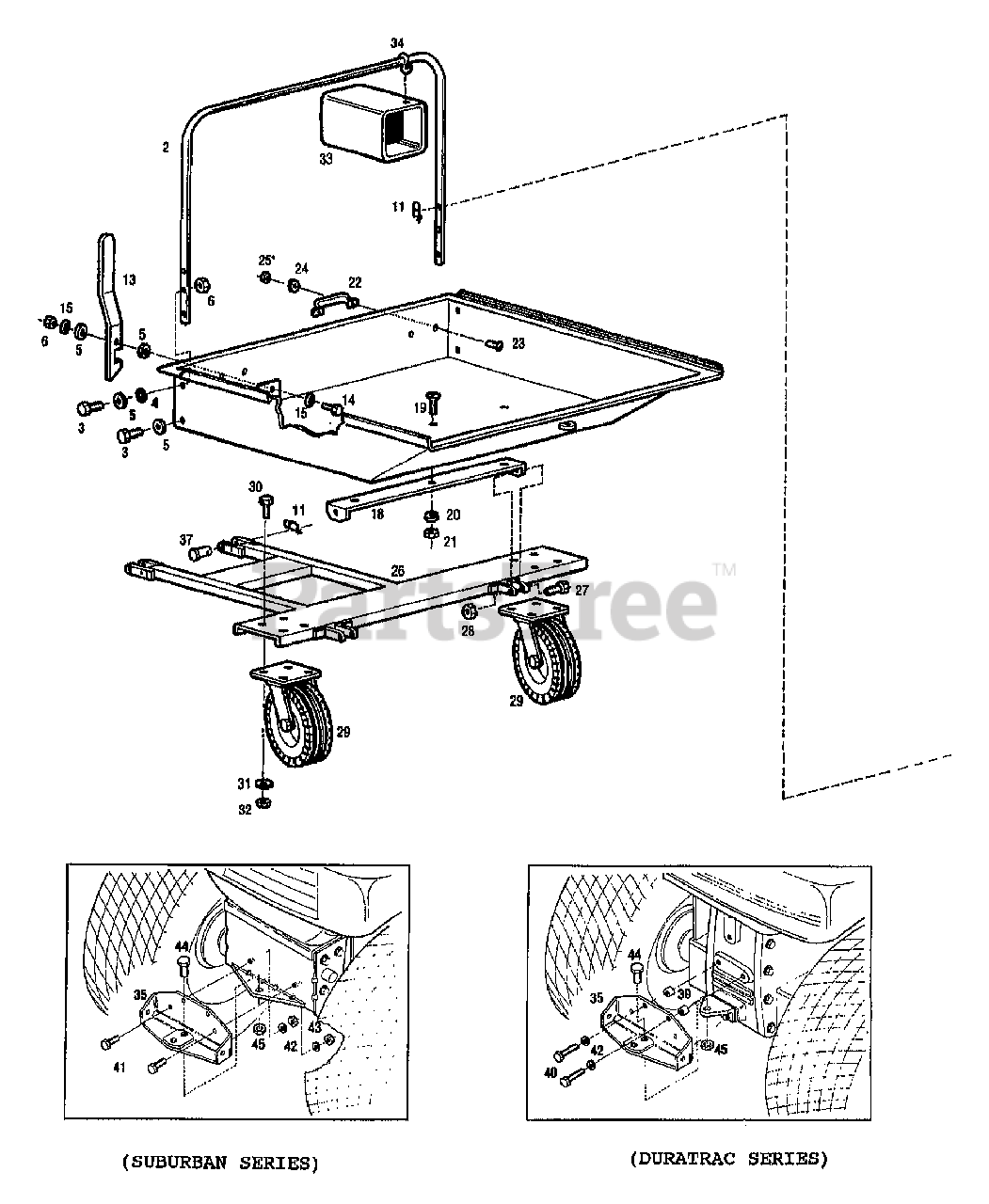

CART/GRASS COLLECTOR Parts Diagram

  • Title

?1

MTD 1823038

BOX

$

$

Not available

2

Troy-Bilt 1823039

TUBE-SUPPORT

$

$

Currently unavailable

3

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

4

MTD 1823040

SPACER

$

$

Not available

5

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

6

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

?7

Troy-Bilt 1823041

COVER

$

$

Currently unavailable

?8

MTD 1823042

ROD-SUPPORT

$

$

Not available

?9

MTD 1823043

ROD-FRAME

$

$

Not available

?10

Troy-Bilt 1723044

ROD-BRAKE

$

$

Currently unavailable

11

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$3.99

$

In Stock, Qty 9

0

?12

MTD 1823046

STRAP

$

$

Not available

13

MTD 1823047

HANDLE-LATCH

$

$

Not available

14

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

15

MTD 1705905

WASHER

$

$

Not available

18

Troy-Bilt 1723048

AXLE

$

$

Currently unavailable

19

MTD 1734214

SCR-5/16-18X1.00

$

$

Not available

20

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 1823049

HANDLE-LIFT

$

$

Not available

23

MTD 1185894

SCR 1/4-20X.5 TRUSS HD

$

$

Not available

24

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

25

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 1823050

FRAME

$

$

Currently unavailable

27

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 1823051

WHEEL

$

$

Currently unavailable

30

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

33

MTD 1823052

SLEEVE

$

$

Not available

34

MTD 1823053

ASSM-SLEEVE CLAMP

$

$

Not available

35

MTD 1755902

PLATE-MOUNTING GRASSBAG

$

$

Not available

37

Troy-Bilt 1730851

PIN-CLEVIS .5X1.25

$

$

Not available

39

MTD 1730682

SPACER-.75X.531X.89

$

$

Not available

40

MTD 1100065

SCR-HH 1/2-13X1.75 G5 ZP

$

$

Not available

41

Troy-Bilt 1100054

SCR-HH 1/2-13X1.0 G5 ZP
(Superseded to 710-3131)

$4.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

44

MTD 1756356

SCR

$

$

Not available

45

MTD 1120390

NUT-H/LK 3/4-10

$

$

Not available

?46

MTD 1757349

DECAL-LOGO

$

$

Not available

?48

Troy-Bilt 1823055

DECAL-WEIGHT

$

$

Currently unavailable
