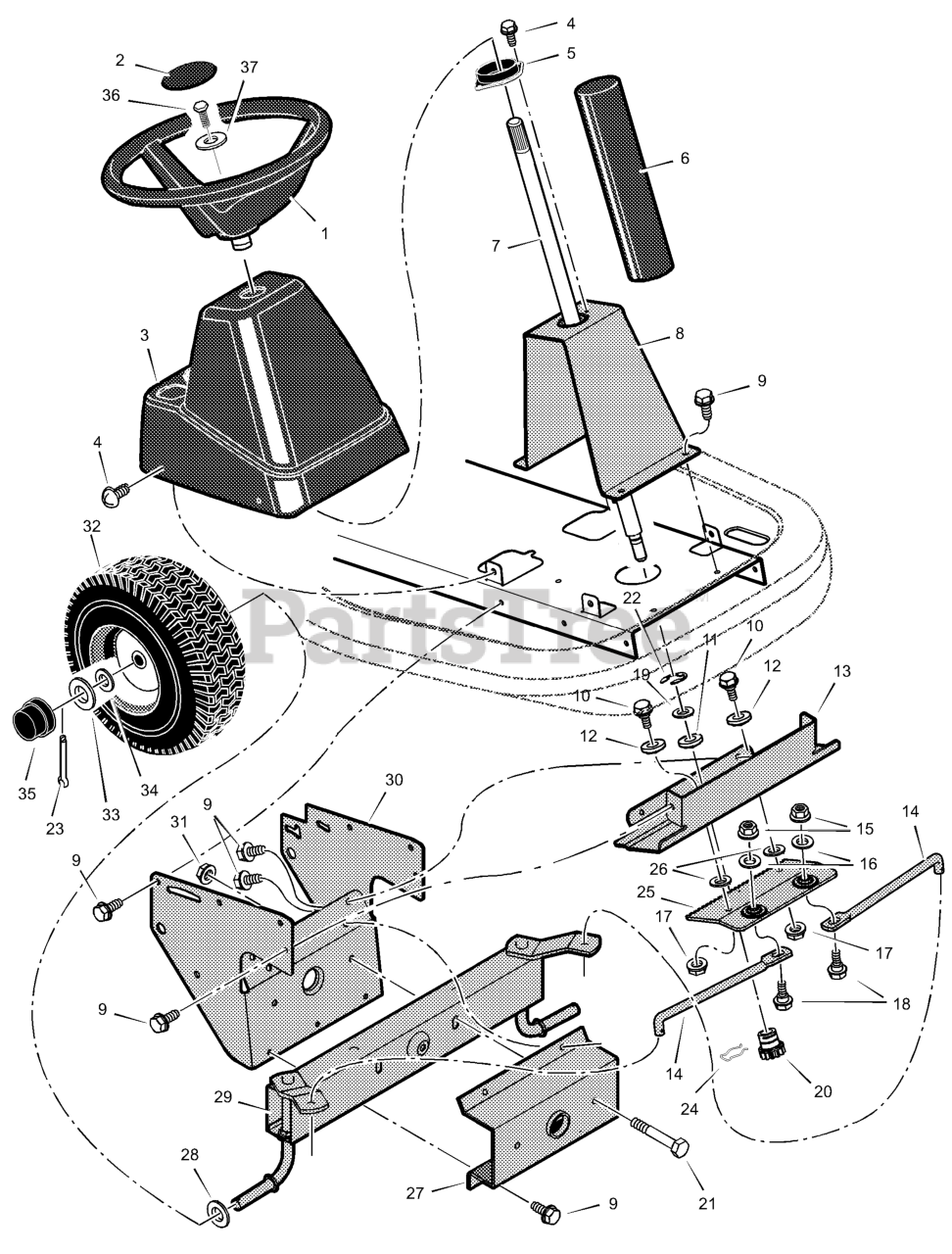

309304x8B - Scotts 30" Rear-Engine Riding Mower (2001) Steering Parts Diagram

30" Rear-Engine Riding Mower

Steering Parts Diagram

  • Title

1

Murray 095185MA

Wheel, Steering (Black)
(Superseded to 1687602YP)

$117.99

$

In Stock, only 1 left!

0

2

Murray 711326MA

Insert, Steering

$

$

Not available

3

Murray 1401044MA

Console, Low (Black)

$66.99

$

Usually ships in 2-12 days

0

--

Murray 1401045

Console, Low (Grey)

$

$

Not available

4

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 9

0

5

Murray 1401090MA

Bearing, Upper Steering

$5.49

$

Usually ships in 2-12 days

0

6

Murray 1401226MA

Tube, Steering (Black)

$

$

Not available

--

Murray 1401227

Tube, Steering (Grey)

$

$

Currently unavailable

7

Murray 1401100MA

Shaft, Steering

$86.99

$

In Stock, only 1 left!

0

8

Murray 1401055-853

Support, Steering

$15.99

$

Usually ships in 2-12 days

0

9

Murray 26X249MA

Screw

$

$

Not available

10

Murray 009X67MA

Bolt, Shoulder

$5.49

$

In Stock, Qty 6

0

11

Murray 1401098MA

Bearing, Lower Steering

$4.99

$

Usually ships in 2-12 days

0

12

Murray 1401102MA

Roller

$43.99

$

Usually ships in 2-12 days

0

13

Murray 1401058

Plate, Gear Mounting

$

$

Currently unavailable

14

Murray 1401123

Link, Drag

$

$

Currently unavailable

15

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

16

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

17

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

18

Murray 01X111MA

Bolt, Hex
(Superseded to 703406)

$4.99

$

In Stock, Qty 20+

0

19

Murray 17X118

WASHER, 1-1.3 16G FLT

$3.49

$

Usually ships in 2-12 days

0

20

Murray 1401099MA

Gear, Pinion

$

$

Not available

21

Murray 01X146MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

22

Murray 011X28

E-Ring, Retainer

$2.49

$

Usually ships in 2-12 days

0

23

Murray 137185MA

Pin, Cotter

$3.49

$

In Stock, only 2 left!

0

24

Murray 094131MA

Clip, Retainer

$5.49

$

In Stock, only 2 left!

0

25

Murray 1401046

Rack, Steering

$50.99

$

In Stock, only 3 left!

0

26

Murray 785373

Washer

$

$

Not available

27

Murray 1401060

Bracket, Axle Front

$

$

Currently unavailable

28

Murray 17X157

Washer
(Superseded to 17X157MA)

$4.49

$

In Stock, only 4 left!

0

29

Murray 1401126

Axle & Spindle Assembly

$

$

Currently unavailable

30

Murray 1401059

Bracket, Support

$

$

Currently unavailable

31

Murray 15X118MA

Nut, Flange
(Superseded to 704279)

$3.49

$

In Stock, Qty 5

0

32

Murray 1401143

Wheel, Front *

$

$

Not available

33

Murray 17X197MA

Washer

$8.99

$

In Stock, only 3 left!

0

34

Murray 17X157

Washer
(Superseded to 17X157MA)

$4.49

$

In Stock, only 4 left!

0

35

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, Qty 20+

0

36

Murray 711719

Bolt

$1.49

$

Usually ships in 2-12 days

0

37

Murray 711663MA

Washer

$3.49

$

Usually ships in 2-12 days

0
