309304x8D - Scotts 30" Rear-Engine Riding Mower (2002) Motion Drive Parts Diagram

30" Rear-Engine Riding Mower

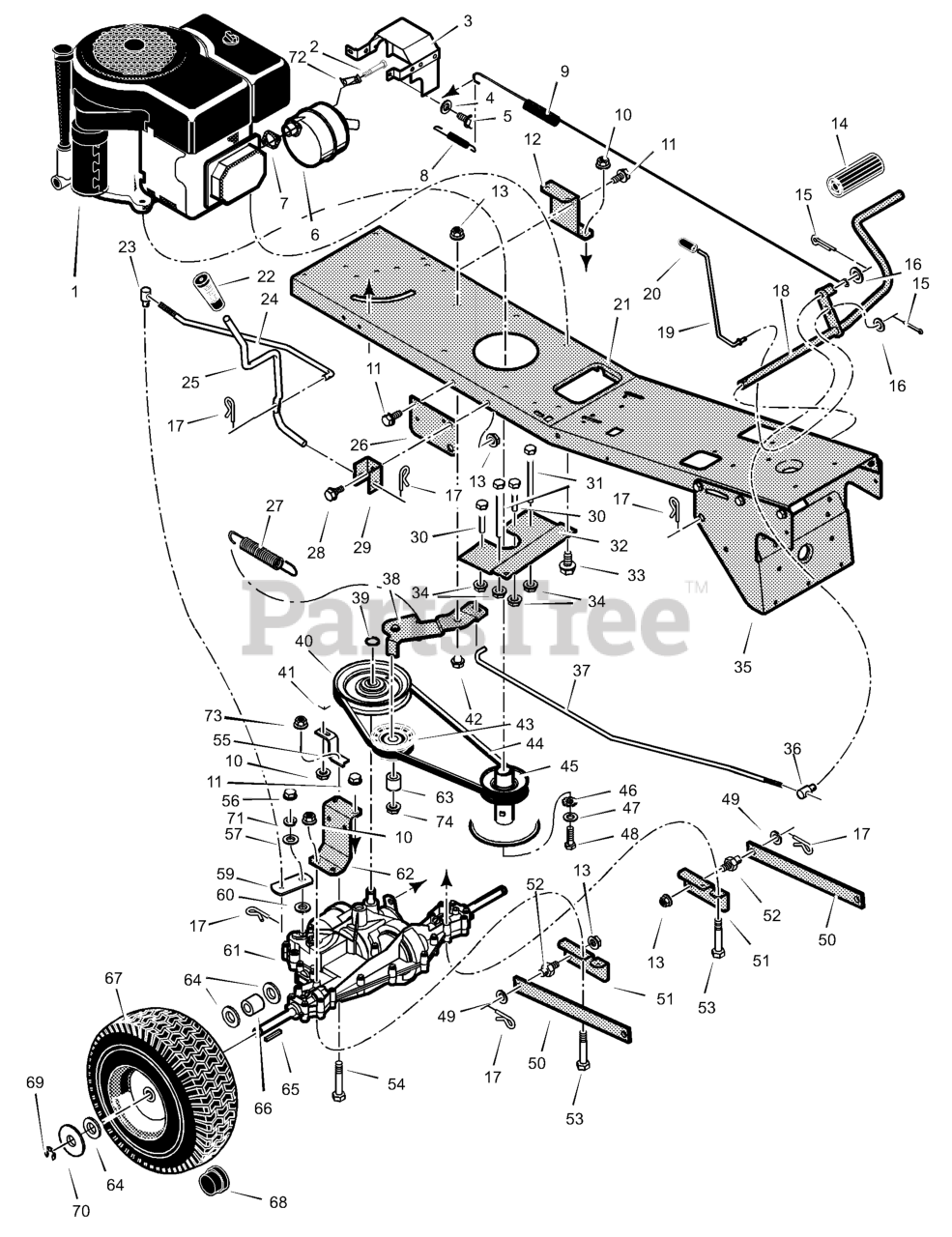

Motion Drive Parts Diagram

  • Title
1

Part# -----

Engine
Usually ships same day

Not available

$

$

2
Usually ships in 1 day

$

$7.88

0

3

Murray Part# 1401207

Shield Assembly, Heat
Usually ships same day

Not available

$

$

4
Usually ships in 3 to 5 days

$

$3.02

0

Usually ships in 1 day

$

$2.90

0

6

Murray Part# 1401251

Muffler Assembly
Usually ships same day

Not available

$

$

7

Murray Part# 692236

Gasket, Muffler
Usually ships in 1 day

$

$4.01

0

8

Murray Part# 165X75MA

Spring, Extension
Usually ships in 6 to 12 days

$

$6.36

0

9

Murray Part# 165X148

Spring, Extension
Usually ships in 3 to 5 days

$

$14.70

0

Usually ships in 1 day

$

$2.90

0

Usually ships same day

Not available

$

$

12

Murray Part# 1401042E701

Bracket, Left Transaxle
Usually ships in 3 to 5 days

$

$27.22

0

13

Murray Part# 015X84MA

Nut, Flange
Usually ships in 1 day

$

$5.36

0

14

Murray Part# 021544MA

Cover, Pedal
Usually ships in 6 to 12 days

$

$7.82

0

15

Murray Part# 030X20MA

Pin, Cotter
(Superseded to 703312)
Usually ships in 1 day

$

$3.23

0

Usually ships in 3 to 5 days

$

$3.34

0

17

Murray Part# 0031X4MA

Pin, Cotter
(Superseded to 703300)
Usually ships in 1 day

$

$3.01

0

18

Murray Part# 1401127E701

Pedal Assembly
Usually ships in 3 to 5 days

$

$81.50

0

19

Murray Part# 1401112

Rod, Parking Brake
Usually ships in 3 to 5 days

$

$7.55

0

20

Murray Part# 091079MA

Grip, Parking Brake Rod
Usually ships in 6 to 12 days

$

$2.74

0

Usually ships same day

Not available

$

$

22

Murray Part# 092697MA

Grip, Shift Lever
(Superseded to 1753233YP)
Usually ships in 1 day

$

$4.81

0

23

Murray Part# 1401148

Nut, Adjusting
Usually ships same day

Not available

$

$

24
Usually ships in 3 to 5 days

$

$18.84

0

25

Murray Part# 1401111MA

Lever, Shift
Usually ships in 3 to 5 days

$

$36.56

0

26

Murray Part# 1401032E701

Bracket, Lift Pivot
Usually ships in 3 to 5 days

$

$23.65

0

27

Murray Part# 165X147MA

Spring, Extension
Usually ships in 3 to 5 days

$

$12.62

0

28

Murray Part# 009X39MA

Bolt, Shoulder
Usually ships in 1 day

$

$4.91

0

29

Murray Part# 1401043E701

Bracket, Pivot
Usually ships in 3 to 5 days

$

$6.65

0

30

Murray Part# 1401104

Guide, Short Belt
Usually ships same day

Not available

$

$

31

Murray Part# 1401105MA

Guide, Long Belt
Usually ships in 1 day

$

$4.24

0

32

Murray Part# 1401057E701

Plate, Belt Guide
Usually ships in 3 to 5 days

$

$10.51

0

33

Murray Part# 0025X7MA

Bolt
(Superseded to 2828635SM)
Usually ships in 1 day

$

$3.68

0

34

Murray Part# 015X79MA

Nut, Flange
Usually ships in 1 day

$

$4.35

0

35

Murray Part# 1401059E701

Bracket, Support
Usually ships in 3 to 5 days

$

$67.14

0

36

Murray Part# 094815

Nut, Adjusting
Usually ships in 3 to 5 days

$

$19.22

0

37

Murray Part# 1401078

Rod, Clutch
Usually ships in 3 to 5 days

$

$10.23

0

38

Murray Part# 1401128E701

Clutch Arm Assembly
Usually ships in 3 to 5 days

$

$12.75

0

39

Murray Part# 0011X7MA

Ring, Retainer
Usually ships in 1 day

$

$2.74

0

40

Murray Part# 1401077MA

Pulley, Drive
Usually ships in 1 day

$

$62.33

0

41

Murray Part# 002X53MA

Bolt, Carriage
(Superseded to 703159)
Usually ships in 1 day

$

$3.01

0

42

Murray Part# 009X39MA

Bolt, Shoulder
Usually ships in 1 day

$

$4.91

0

43

Murray Part# 690410MA

Pulley, Idler
Usually ships in 6 to 12 days

$

$14.37

0

44

Murray Part# 37X110MA

Belt, Motion Drive
Usually ships in 1 day

$

$19.85

0

45

Murray Part# 1401066MA

Pulley, Split Stack
Usually ships in 3 to 5 days

$

$51.32

0

46

Murray Part# 019X35MA

Washer, Star
Usually ships in 1 day

$

$3.35

0

Usually ships in 1 day

$

$4.53

0

48
Usually ships in 1 day

$

$3.90

0

49

Murray Part# 17X102MA

Washer
(Superseded to 703128)
Usually ships in 1 day

$

$2.90

0

Usually ships in 3 to 5 days

$

$13.98

0

51

Murray Part# 1401039E701

Bracket, Rear Hanger
Usually ships in 3 to 5 days

$

$21.63

0

52

Murray Part# 094067MA

Pin, Threaded Shoulder
Usually ships in 1 day

$

$5.58

0

53
Usually ships in 1 day

$

$3.68

0

Usually ships in 3 to 5 days

$

$3.41

0

55

Murray Part# 1401051E701

Bracket, Torque Reactor
Usually ships in 3 to 5 days

$

$7.60

0

Usually ships in 1 day

$

$3.30

0

57

Murray Part# 017X38MA

Washer, Shift Yoke
Usually ships in 3 to 5 days

$

$3.34

0

59

Murray Part# 1401093

Yoke, Shift
Usually ships in 1 day

$

$5.14

0

Usually ships in 3 to 5 days

$

$3.47

0

61

Part# -----

Transaxle, Peerless **
Usually ships same day

Not available

$

$

62

Murray Part# 1401042E701

Bracket, Transaxle
Usually ships in 3 to 5 days

$

$27.22

0

Usually ships in 1 day

$

$4.19

0

Usually ships in 1 day

$

$3.68

0

65

Murray Part# 056534MA

Key, Square
Usually ships in 1 day

$

$3.68

0

66

Murray Part# 1401103MA

SPACER, Rear Wheel
Usually ships in 3 to 5 days

$

$9.06

0

67

Murray Part# 1401120MA

Wheel, Rear -15" *
Usually ships same day

Not available

$

$

68
Usually ships in 1 day

$

$4.35

0

Usually ships in 1 day

$

$4.35

0

Usually ships in 1 day

$

$3.90

0

71

Murray Part# 018X32MA

Lockwasher, Split
Usually ships in 3 to 5 days

$

$3.02

0

72

Murray Part# 092378MA

Lock, Screw
Usually ships in 1 day

$

$3.75

0

Usually ships in 1 day

$

$3.79

0

Usually ships in 1 day

$

$5.36

0
