309311x92A - Murray 30" Rear-Engine Riding Mower (2003) Motion Drive Parts Diagram

30" Rear-Engine Riding Mower

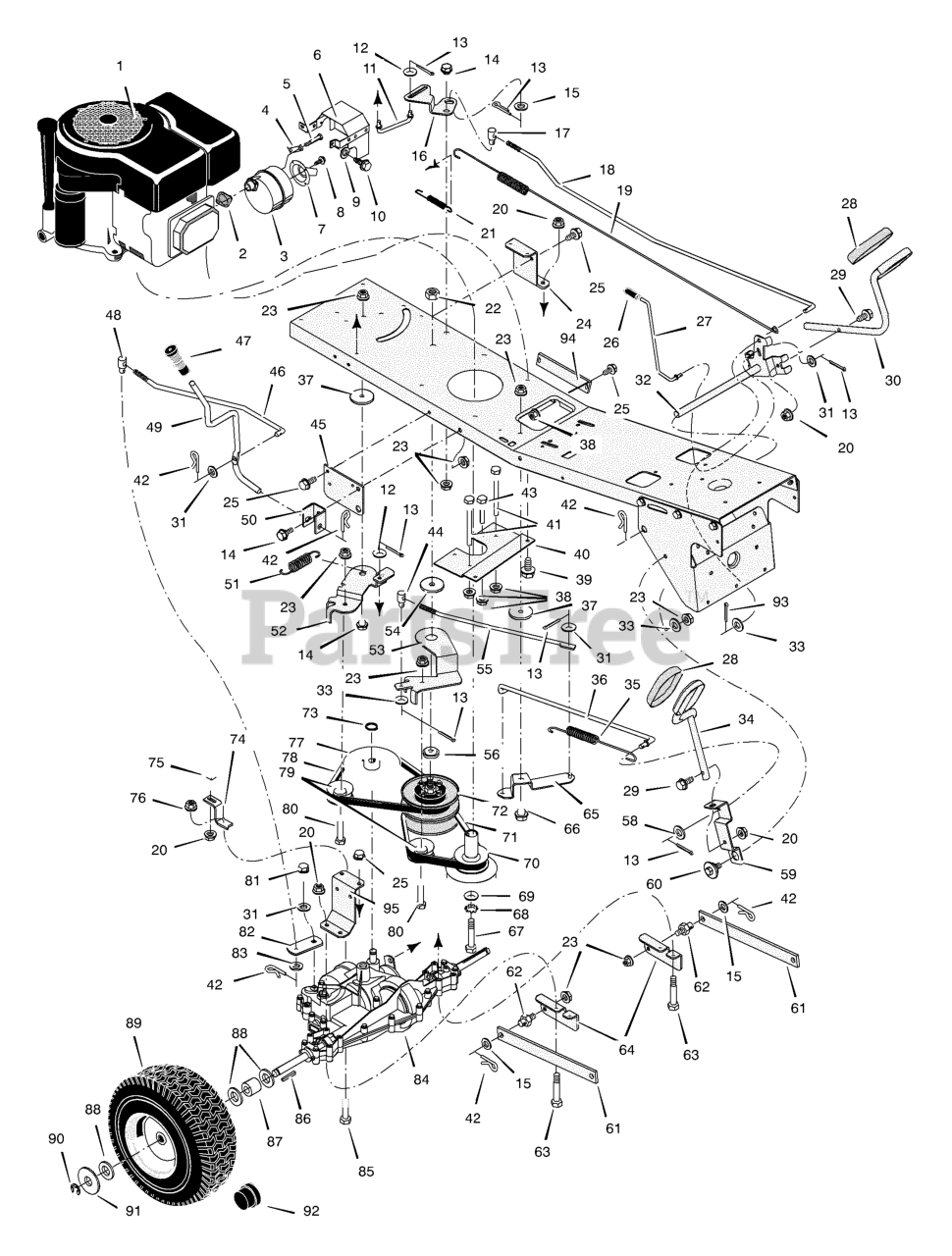

Motion Drive Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

3

Murray 091271

Muffler

$53.99

$

In Stock, only 2 left!

0

4

Murray 092378MA

Lock, Muffler Screw

$5.99

$

In Stock, Qty 8

0

5

Murray 01X134MA

Bolt, Hex

$10.99

$

Usually ships in 2-12 days

0

6

Murray 1401207

Shield, Heat

$

$

Not available

7

Murray 1401204

Tube, Exhaust

$

$

Not available

8

Murray 26X208MA

Screw

$3.99

$

Usually ships in 2-12 days

0

9

Murray 018X32MA

Washer, Lock

$3.49

$

Usually ships in 2-12 days

0

10

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

11

Murray 1401170

Rod, Link

$

$

Not available

12

Murray 017X45MA

Washer

$

$

Not available

13

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$4.49

$

In Stock, Qty 11

0

14

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, only 2 left!

0

15

Murray 17X102MA

Washer
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

16

Murray 1401166 Z

Link, Clutch

$

$

Currently unavailable

17

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

18

Murray 1401165

Rod, Clutch Variator

$

$

Not available

19

Murray 165X148

Spring, Brake

$

$

Not available

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 165X75MA

Spring, Brake Return

$8.99

$

Usually ships in 2-12 days

0

22

Murray 15X137

Nut

$

$

Currently unavailable

23

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

24

Murray 1401042E701

Bracket, Transaxle -Left

$34.99

$

Usually ships in 2-12 days

0

25

Murray 26X249MA

Screw

$

$

Not available

26

Murray 091079MA

Grip

$3.99

$

Usually ships in 2-12 days

0

27

Murray 1401112

Rod, Parking Brake

$9.99

$

Usually ships in 2-12 days

0

28

Murray 1401139

Pad, Pedal

$

$

Not available

29

Murray 01X139MA

Bolt, Hex
(Superseded to 703570)

$4.99

$

In Stock, Qty 9

0

30

Murray 1401179E701

Rod, Clutch/Brake

$

$

Currently unavailable

31

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

32

Murray 1401180E701

Rod, Clutch/Brake Pivot

$

$

Not available

33

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

34

Murray 1401181E701

Pedal, Variator

$

$

Not available

35

Murray 165X158MA

Spring, Return

$

$

Not available

36

Murray 1401142

Rod, Variator Connect

$

$

Not available

37

Murray 17X174 HT

Washer

$

$

Currently unavailable

38

Murray 015X79MA

Nut
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

39

Murray 0025X7MA

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

40

Murray 1401057E701

Plate, Belt Guide

$13.99

$

Usually ships in 2-12 days

0

41

Murray 1401105MA

Guide, Belt -Long

$5.99

$

In Stock, Qty 5

0

42

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

43

Murray 1401104

Guide, Belt -Short

$

$

Not available

44

Murray 021920ZMA

Nut, Adjusting

$17.99

$

Usually ships in 2-12 days

0

45

Murray 1401032E701

Bracket, Lift Pivot

$27.99

$

Usually ships in 2-12 days

0

46

Murray 1401122MA

Rod, Shift Link

$

$

Not available

47

Murray 092697MA

Grip
(Superseded to 1753233YP)

$7.49

$

In Stock, Qty 20+

0

48

Murray 1401148

Nut, Adjusting

$

$

Not available

49

Murray 1401111MA

Lever, Shift

$

$

Not available

50

Murray 1401043E701

Bracket, Pivot

$

$

Not available

51

Murray 165X156MA

Spring - Variator Drive

$

$

Not available

52

Murray 1401131 Z

Arm, Idler

$

$

Currently unavailable

53

Murray 1401132 Z

Arm, Clutch Ider

$

$

Currently unavailable

54

Murray 17X210 HT

Washer

$

$

Not available

55

Murray 1401136

Link, Drive

$

$

Not available

56

Murray 1401124MA

Spacer

$

$

Not available

58

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

59

Murray 1401254 Z

Arm, Pedal

$

$

Currently unavailable

60

Murray 009X69

Bolt, Shoulder

$

$

Not available

61

Murray 1401031E701MA

Arm, Rear

$16.99

$

Usually ships in 2-12 days

0

62

Murray 094067MA

Pin, Threaded
(Superseded to 704054)

$7.49

$

In Stock, only 2 left!

0

63

Murray 01X155MA

Bolt, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

64

Murray 1401039E701

Bracket, Rear Hanger

$

$

Not available

65

Murray 1401183E701

Link Assembly, Pivot

$

$

Currently unavailable

66

Murray 009X15MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

67

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 12

0

68

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

69

Murray 17X170MA

Washer

$

$

Not available

70

Murray 1401158

Pulley Stack

$

$

Not available

71

Murray 37X114MA

Belt, Primary Drive

$22.99

$

In Stock, only 1 left!

0

72

Murray 1401035MA

Pulley Assembly, Variator
(Superseded to 1001133MA)

$601.99

$

Usually ships in 2-12 days

0

73

Murray 0011X7MA

Ring, Snap

$3.99

$

In Stock, only 2 left!

0

74

Murray 1401051E701

Bracket, Torque Reactor

$

$

Not available

75

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

76

Murray 015X43MA

Nut, Stoverlock
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

77

Murray 1401157MA

Pulley, Transaxle

$

$

Not available

78

Murray 37X115MA

Belt, Secondary Drive

$23.99

$

In Stock, only 2 left!

0

79

Murray 1401156MA

Pulley, Idler
(Superseded to 1668477SM)

$25.99

$

In Stock, Qty 11

0

80

Murray 01X111MA

Bolt, Hex
(Superseded to 703406)

$4.99

$

In Stock, Qty 10

0

81

Murray 06X105MA

Cap Screw

$4.49

$

In Stock, only 1 left!

0

82

Murray 1401093 Z

Yoke, Shift

$

$

Currently unavailable

83

Murray 17X148MA

Washer

$4.49

$

Usually ships in 2-12 days

0

84

Murray 915-033

Transaxle

$

$

Currently unavailable

85

Murray 01X120MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

86

Murray 056534MA

Key, Square

$5.49

$

In Stock, only 2 left!

0

87

Murray 1401103MA

SPACER, Rear Wheel

$11.99

$

Usually ships in 2-12 days

0

88

Murray 17X160MA

Washer

$4.99

$

In Stock, only 2 left!

0

89

Murray 1401120MA

Wheel & Tire Assembly

$

$

Not available

90

Murray 0011X3MA

E-Ring

$5.99

$

In Stock, Qty 10

0

91

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 20+

0

92

Murray 094618MA

Hub Cap

$5.99

$

In Stock, Qty 20+

0

93

Murray 030X35MA

Pin, Cotter

$4.49

$

Usually ships in 2-12 days

0

94

Murray 1401260E701

Plate, Reinforecement

$

$

Not available

95

Murray 1401268E701MA

Bracket, Transaxle -Right

$39.99

$

Usually ships in 2-12 days

0
