30935 - Lawn-Boy 20cc Handheld Blower (SN: 010000001 - 019999999) (1991) CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

20cc Handheld Blower

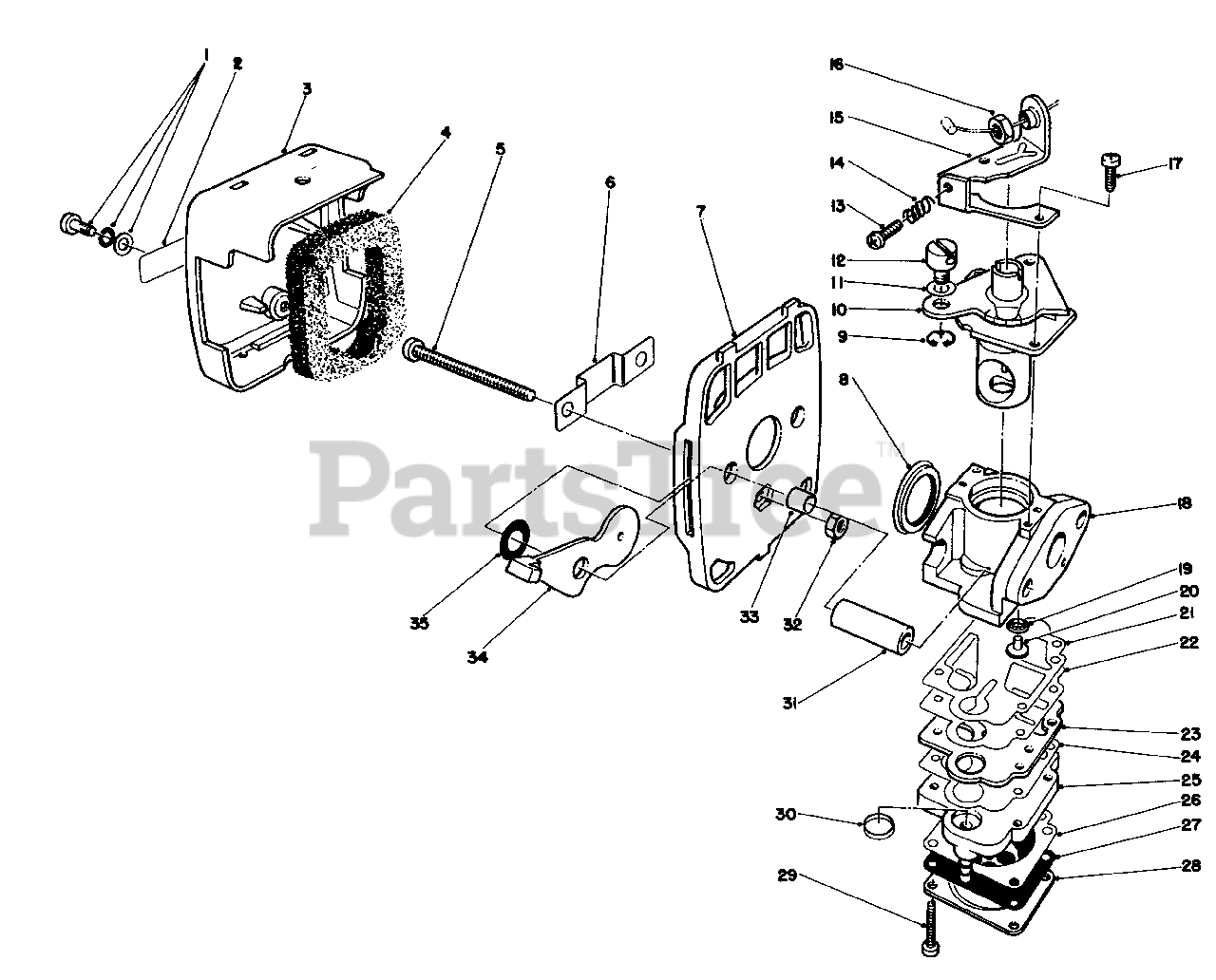

CARBURETOR & AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 65-4040

SCREW ASSEMBLY

$

$

Not available

2

Lawn-Boy 65-3030

Decal-Choke

$

$

Not available

3

Lawn-Boy 65-4030

Cover Assembly (Incl. Ref. #2)

$

$

Not available

4

Lawn-Boy 65-4020

ELEMENT

$

$

Not available

5

Lawn-Boy 65-4060

SCREW

$

$

Not available

6

Lawn-Boy 65-4010

PREVENT PLATE

$6.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 65-3970

AIR CLEANER PLATE

$

$

Not available

8

Lawn-Boy 65-3850

RING PACKING

$

$

Not available

9

Lawn-Boy 65-3890

RING - SPRING RETAINER

$

$

Not available

10

Lawn-Boy 65-3750

VALVE ASSEMBLY

$

$

Not available

11

Lawn-Boy 65-3900

WASHER

$

$

Not available

12

Lawn-Boy 65-3910

SWIVEL

$

$

Not available

13

Lawn-Boy 65-3940

Screw-Idle Adjustment

$

$

Not available

14

Lawn-Boy 65-3930

SPRING

$

$

Not available

15

Lawn-Boy 65-3920

BRACKET

$

$

Not available

16

Lawn-Boy 65-4230

NUT

$

$

Not available

17

Lawn-Boy 65-3950

Screw

$

$

Not available

18

Lawn-Boy 65-3740

Carburetor Assembly (Incl.Ref. #8-15, 17 & 19-30)

$548.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 65-3880

O-RING

$

$

Not available

20

Lawn-Boy 65-3870

JET

$

$

Not available

21

Lawn-Boy 65-3770

PUMP GASKET

$

$

Not available

22

Lawn-Boy 65-3780

Diaphragm-Pump

$

$

Not available

23

Lawn-Boy 65-3790

PUMP PLATE

$

$

Not available

24

Lawn-Boy 65-3800

Diaphragm-Pump

$

$

Not available

25

Lawn-Boy 65-3760

BODY ASSEMBLY

$

$

Not available

26

Lawn-Boy 65-3810

GASKET

$

$

Not available

27

Lawn-Boy 65-3820

Diaphragm Assembly

$

$

Not available

28

Lawn-Boy 65-3830

DIAPHRAGM COVER

$

$

Not available

29

Lawn-Boy 65-3960

SCREW

$

$

Not available

30

Lawn-Boy 65-3860

SCREEN INLET

$

$

Not available

31

Lawn-Boy 65-3840

SLEEVE

$

$

Not available

32

Lawn-Boy 65-3540

INSULATOR NUT

$1.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 65-3980

SPACER

$

$

Not available

34

Lawn-Boy 65-3990

CHOKE LEVER

$

$

Not available

35

Lawn-Boy 65-4000

RUBBER SEAT

$

$

Not available
