30935 - Toro 20cc Handheld Blower (SN: 000000001 - 000999999) (1990) BLOWER HOUSING ASSEMBLY Parts Diagram

20cc Handheld Blower

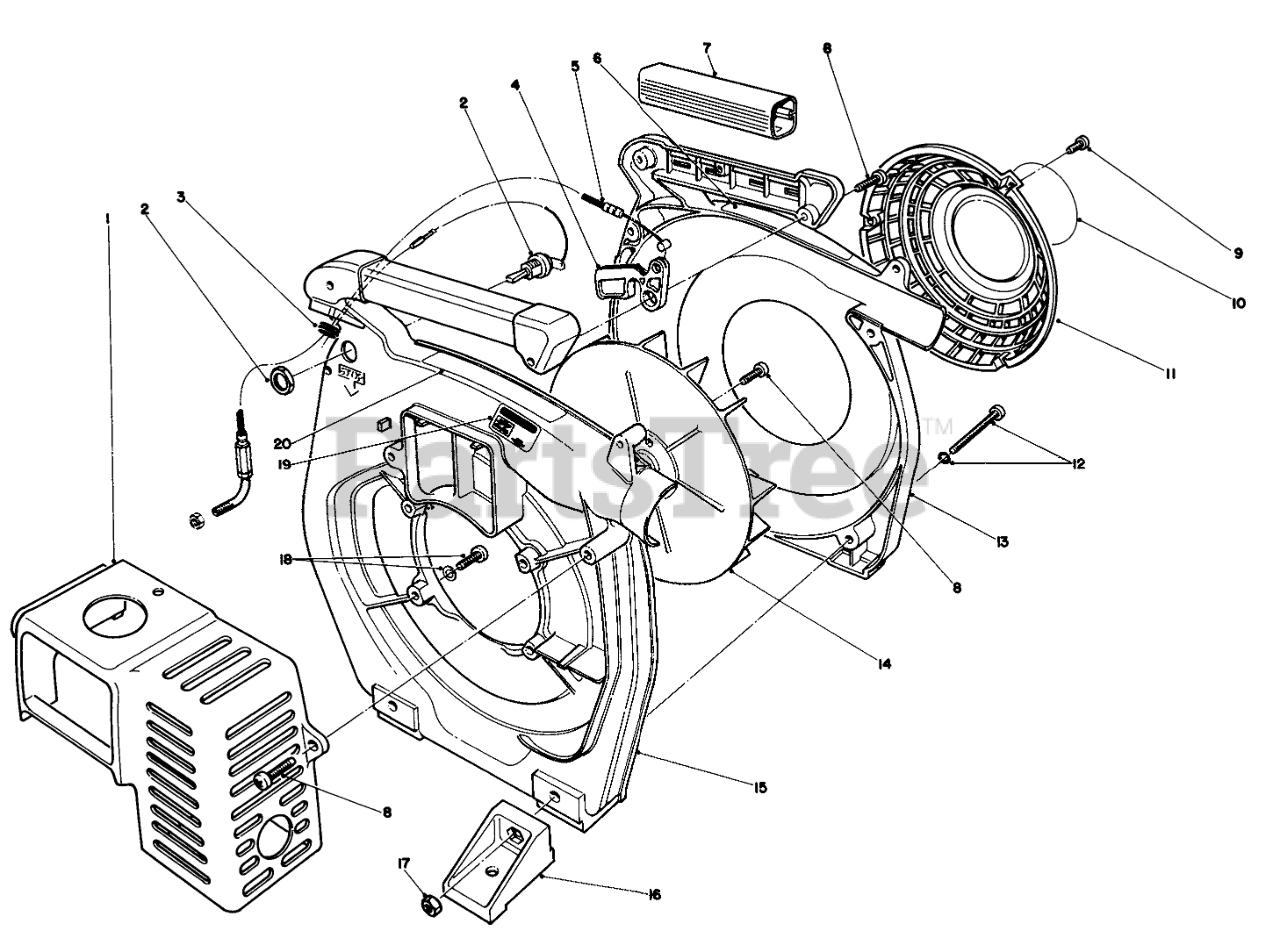

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 65-4140

ENGINE COVER

$125.99

$

Usually ships in 3-6 days

0

2

Toro 65-4150

Switch Assembly

$

$

Not available

3

Toro 65-4190

GROMMET

$

$

Not available

4

Toro 65-4180

THROTTLE LEVER

$

$

Not available

5

Toro 65-4160

THROTTLE WIRE

$

$

Not available

6

Toro 65-3080

Decal-Instruction

$

$

Not available

7

Toro 65-4170

GRIP

$

$

Not available

8

Toro 65-4130

SCREW

$

$

Not available

9

Toro 65-4120

SCREW

$

$

Not available

10

Toro 82-5910

Decal-Toro

$

$

Not available

11

Toro 65-4200

Screen Assembly, Inlet (Incl. Ref. #10)

$80.99

$

Usually ships in 3-6 days

0

12

Toro 65-4220

SCREW ASSEMBLY

$

$

Not available

13

Toro 65-3700

Case-Front (Incl. Ref. #6)

$

$

Not available

14

Toro 65-4090

IMPELLER

$

$

Not available

15

Toro 65-4050

Case-Rear (Incl. Ref. #19 & 20)

$

$

Not available

16

Toro 65-4110

Bracket-Stand

$

$

Not available

17

Toro 65-3540

INSULATOR NUT

$

$

Not available

18

Toro 65-4210

SCREW ASSEMBLY

$

$

Not available

19

Toro 65-3070

Decal-Hot Surface
(Superseded to 82-2520)

$

$

Not available

20

Toro 82-5920

Decal-Danger

$

$

Not available
