30935 - Toro 20cc Handheld Blower (SN: 000000001 - 000999999) (1990)

20cc Handheld Blower

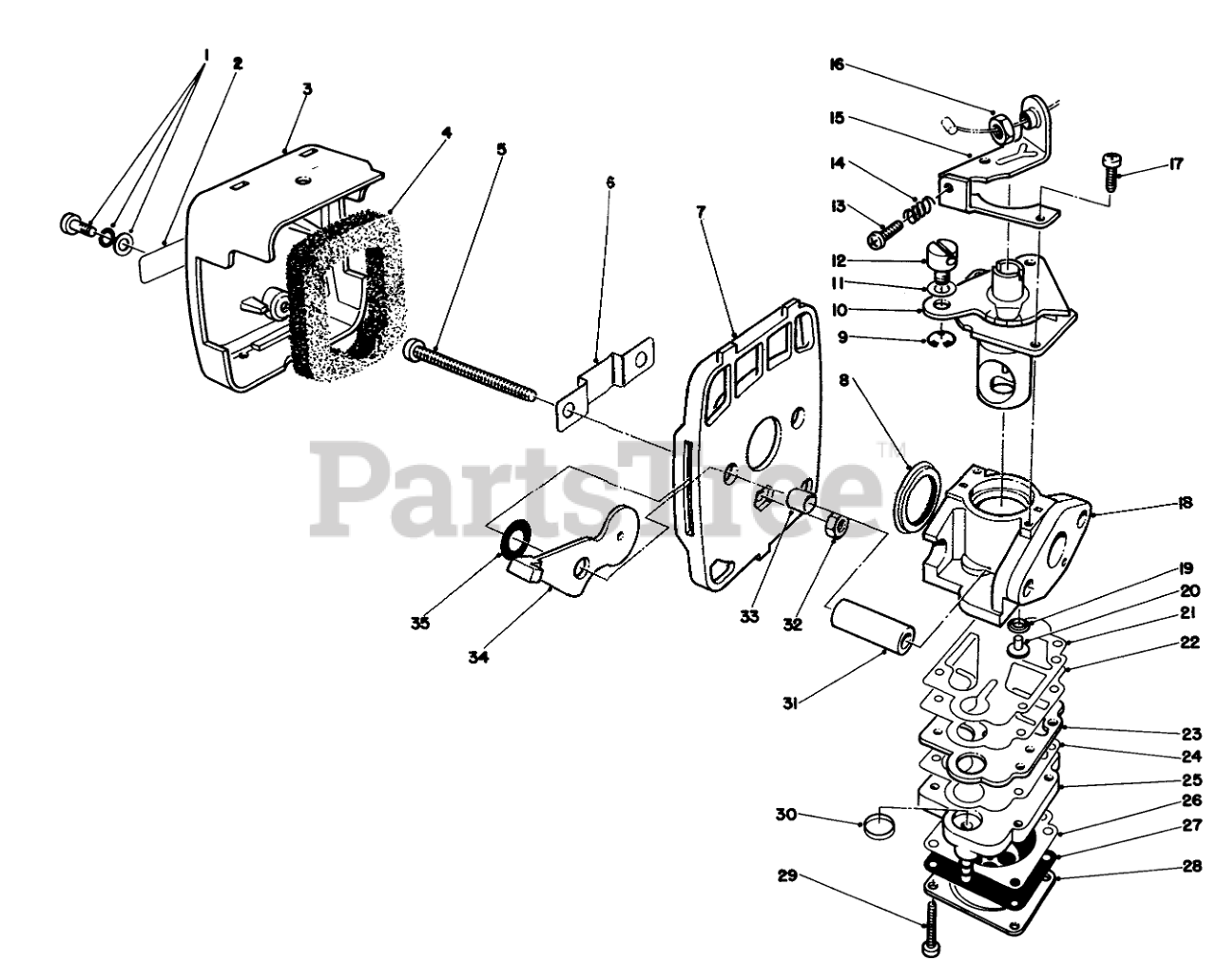

30935 - Toro 20cc Handheld Blower (SN: 000000001 - 000999999) (1990) > Parts Diagrams (4) > CARBURETOR & AIR CLEANER ASSEMBLY

  • Title
65-4040

1

SCREW ASSEMBLY

Part# 65-4040

OEM Warranty Repair Part for Toro

Not available

65-3030

2

Decal-Choke

Part# 65-3030

OEM Warranty Repair Part for Toro

Not available

65-4030

3

Cover Assembly (Incl. Ref. #2)

Part# 65-4030

OEM Warranty Repair Part for Toro

Not available

65-4020

4

ELEMENT

Part# 65-4020

OEM Warranty Repair Part for Toro

Not available

65-4060

5

SCREW

Part# 65-4060

OEM Warranty Repair Part for Toro

Not available

65-4010

6

PREVENT PLATE

Part# 65-4010

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.20

65-3970

7

AIR CLEANER PLATE

Part# 65-3970

OEM Warranty Repair Part for Toro

Not available

65-3850

8

RING PACKING

Part# 65-3850

OEM Warranty Repair Part for Toro

Not available

65-3890

9

RING - SPRING RETAINER

Part# 65-3890

OEM Warranty Repair Part for Toro

Not available

65-3750

10

VALVE ASSEMBLY

Part# 65-3750

OEM Warranty Repair Part for Toro

Not available

65-3900

11

WASHER

Part# 65-3900

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.80

65-3910

12

SWIVEL

Part# 65-3910

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.50

65-3940

13

Screw-Idle Adjustment

Part# 65-3940

OEM Warranty Repair Part for Toro

Not available

65-3930

14

SPRING

Part# 65-3930

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.69

65-3920

15

BRACKET

Part# 65-3920

OEM Warranty Repair Part for Toro

Not available

65-4230

16

NUT

Part# 65-4230

OEM Warranty Repair Part for Toro

Not available

65-3950

17

Screw

Part# 65-3950

OEM Warranty Repair Part for Toro

Not available

65-3740

18

Carburetor Assembly (Incl.Ref. #8-15, 17 & 19-30)

Part# 65-3740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $354.26

65-3880

19

O-RING

Part# 65-3880

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.08

65-3870

20

JET

Part# 65-3870

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.11

65-3770

21

PUMP GASKET

Part# 65-3770

OEM Warranty Repair Part for Toro

Not available

65-3780

22

Diaphragm-Pump

Part# 65-3780

OEM Warranty Repair Part for Toro

Not available

65-3790

23

PUMP PLATE

Part# 65-3790

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.26

65-3800

24

Diaphragm-Pump

Part# 65-3800

OEM Warranty Repair Part for Toro

Not available

65-3760

25

BODY ASSEMBLY

Part# 65-3760

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $125.54

65-3810

26

GASKET

Part# 65-3810

OEM Warranty Repair Part for Toro

Not available

65-3820

27

Diaphragm Assembly

Part# 65-3820

OEM Warranty Repair Part for Toro

Not available

65-3830

28

DIAPHRAGM COVER

Part# 65-3830

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.78

65-3960

29

SCREW

Part# 65-3960

OEM Warranty Repair Part for Toro

Not available

65-3860

30

SCREEN INLET

Part# 65-3860

OEM Warranty Repair Part for Toro

Not available

65-3840

31

SLEEVE

Part# 65-3840

OEM Warranty Repair Part for Toro

Not available

65-3540

32

INSULATOR NUT

Part# 65-3540

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.10

65-3980

33

SPACER

Part# 65-3980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.32

65-3990

34

CHOKE LEVER

Part# 65-3990

OEM Warranty Repair Part for Toro

Not available

65-4000

35

RUBBER SEAT

Part# 65-4000

OEM Warranty Repair Part for Toro

Not available
