30935 - Toro 20cc Handheld Blower (SN: 010000001 - 019999999) (1991) ENGINE ASSEMBLY Parts Diagram

20cc Handheld Blower

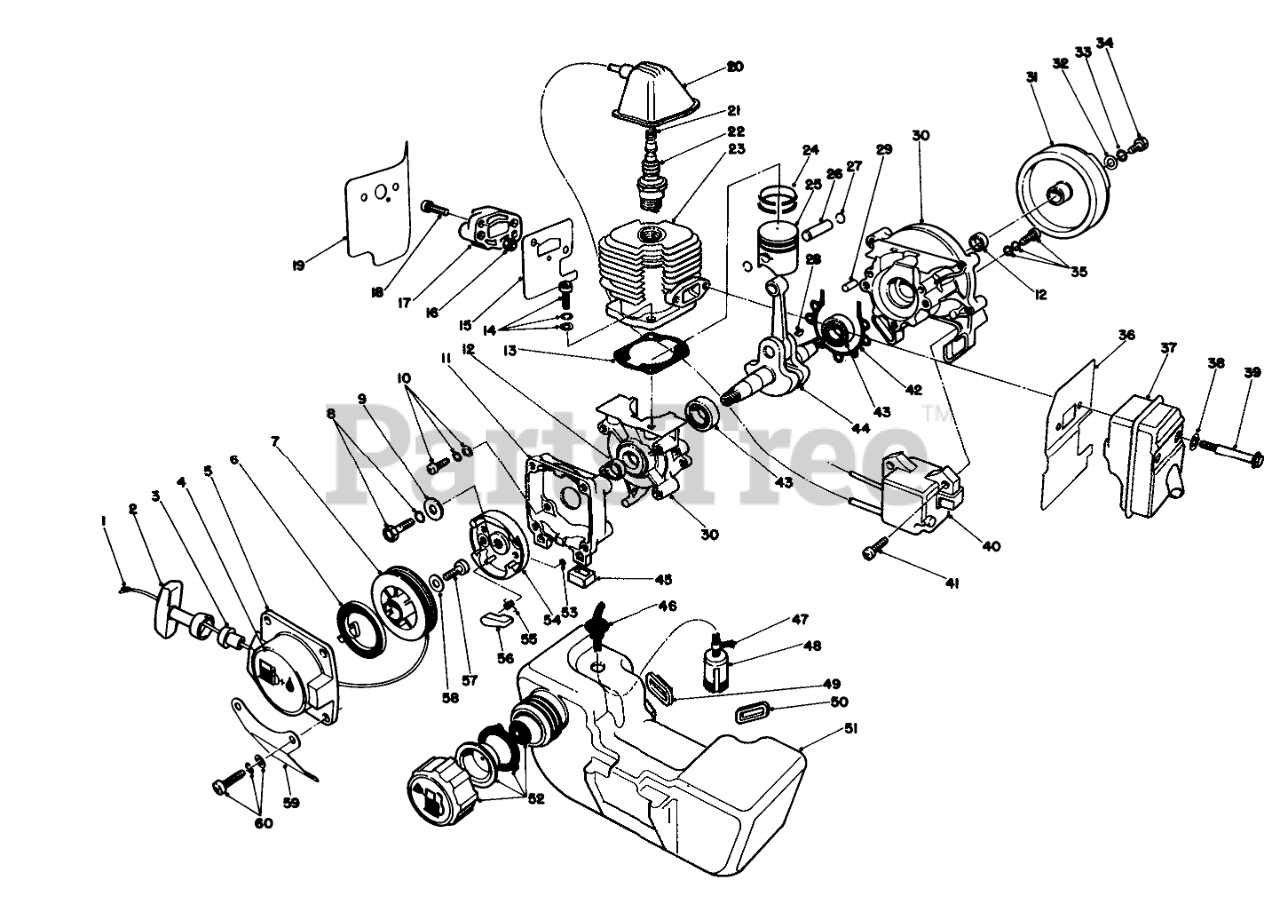

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-3270

STARTER ROPE

$

$

Not available

2

Toro 65-3250

STARTER KNOB

$

$

Not available

3

Toro 65-3290

ROPE GUIDE

$5.99

$

In Stock, only 1 left!

0

4

Toro 65-3040

DECAL - FUEL MIX

$

$

Not available

5

Toro 65-3300

Case-Reel (Incl. Ref. #4)

$

$

Not available

6

Toro 65-3260

SPIRAL SPRING

$

$

Not available

7

Toro 65-3280

REEL

$

$

Not available

8

Toro 65-3610

BOLT ASSEMBLY

$

$

Not available

9

Toro 65-3620

WASHER

$

$

Not available

10

Toro 65-3650

SCREW ASSEMBLY

$

$

Not available

11

Toro 65-3360

Case-Pulley

$

$

Not available

12

Toro 65-3120

OIL SEAL

$

$

Not available

13

Toro 65-3170

CYLINDER PACKING

$

$

Not available

14

Toro 65-3660

BOLT

$

$

Not available

15

Toro 65-3550

INSULATOR PACKING

$20.99

$

Usually ships in 3-6 days

0

16

Toro 65-3540

INSULATOR NUT

$

$

Not available

17

Toro 65-3530

Insulator Assembly (Incl. Ref. #16)

$43.99

$

Usually ships in 3-6 days

0

18

Toro 65-3590

SCREW

$

$

Not available

19

Toro 65-3560

GASKET

$

$

Not available

20

Toro 65-3510

PLUG CAP

$

$

Not available

21

Toro 65-3520

PLUG CAP SPRING

$

$

Not available

22

Toro 56-8290

SPARK PLUG

$

$

Not available

23

Toro 65-3150

CYLINDER

$549.99

$

Usually ships in 3-6 days

0

24

Toro 65-3210

PISTON RING

$

$

Not available

25

Toro 65-3190

PISTON

$

$

Not available

26

Toro 65-3200

PISTON PIN

$

$

Not available

27

Toro 65-3220

CLIP

$

$

Not available

28

Toro 65-3570

WOODRUFF KEY

$

$

Not available

30

Toro 65-3110

Crankcase Assembly (Incl. Ref. #12, 29 & 41-44)

$647.99

$

Usually ships in 3-6 days

0

31

Toro 65-3490

FLYWHEEL

$

$

Not available

32

Toro 65-3730

WASHER

$

$

Not available

33

Toro 65-3710

SPRING WASHER

$

$

Not available

34

Toro 65-3720

BOLT

$

$

Not available

35

Toro 65-3640

SCREW ASSEMBLY

$

$

Not available

36

Toro 65-3380

MUFFLER GASKET

$

$

Not available

37

Toro 65-3370

MUFFLER ASSEMBLY

$159.99

$

Usually ships in 3-6 days

0

38

Toro 65-3600

WASHER

$

$

Not available

39

Toro 65-3390

MUFFLER CLAMPING BOLT

$

$

Not available

40

Toro 65-3500

IGNITION COIL

$

$

Not available

41

Toro 65-3630

SCREW

$

$

Not available

42

Toro 65-3140

CRANKCASE PACKING

$

$

Not available

43

Toro 65-3130

BALL BEARING

$64.99

$

Usually ships in 3-6 days

0

44

Toro 65-3180

CRANKSHAFT

$

$

Not available

45

Toro 65-3430

RUBBER CUSHION

$

$

Not available

46

Toro 65-3460

RUBBER TUBE

$

$

Not available

47

Toro 65-3470

HOSE CLAMP

$

$

Not available

48

Toro 65-3580

FILTER

$

$

Not available

49

Toro 65-3440

RUBBER PLATE

$

$

Not available

50

Toro 65-3450

RUBBER PLATE

$

$

Not available

51

Toro 65-3400

Tank-Fuel

$

$

Not available

52

Toro 72-4780

GAS CAP

$

$

Not available

53

Toro 65-3350

E RING

$

$

Not available

54

Toro 65-3320

STARTER PULLEY

$68.99

$

Usually ships in 3-6 days

0

55

Toro 65-3340

RETURN SPRING

$

$

Not available

56

Toro 65-3330

RATCHET

$

$

Not available

57

Toro 65-3670

SETSCREW

$

$

Not available

58

Toro 65-3680

WASHER

$

$

Not available

59

Toro 65-3420

TANK STAY

$

$

Not available

60

Toro 65-3690

SCREW ASSEMBLY

$

$

Not available

Toro 65-3230

Recoil Assembly (Incl. Ref. #1-7, & 53-58)

$

$

Not available

Toro 65-3240

Recoil Assembly (Incl. Ref. #1-3, 5-7, 57 & 58)

$268.99

$

Usually ships in 3-6 days

0

Toro 65-3310

Pulley Assembly (Incl. Ref. #53-56)

$

$

Not available

Toro 65-3480

Ignition Assembly (Incl. Ref. #31 & 40)

$

$

Not available
