30936 - Troy-Bilt Power Packer (SN: 0100101 - 0199999) POWER PACKER Parts Diagram

Power Packer

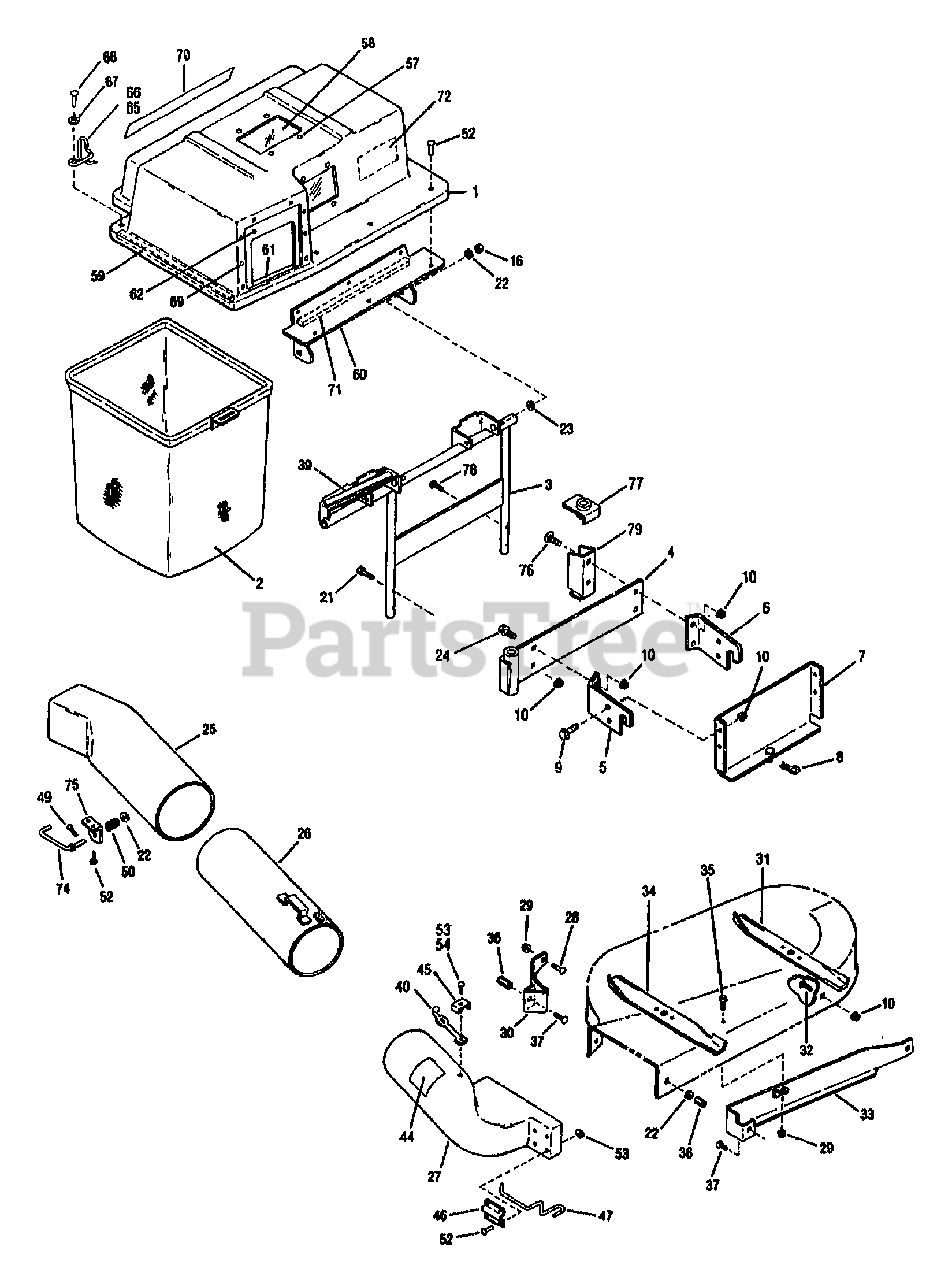

POWER PACKER Parts Diagram

  • Title

1

Troy-Bilt 1755351

ASSM-CVR GRASS BAG

$

$

Currently unavailable

2

MTD 1755856

GRASS BAG ASSY.

$

$

Not available

3

MTD 1754979

ASSM-BAG SUPPORT

$

$

Not available

4

MTD 1756750

ASSM-SUPPORT PLATE

$

$

Not available

5

Troy-Bilt 1747983

PLATE-RIGHT HITCH

$

$

Currently unavailable

6

Troy-Bilt 1747984

PLATE-HITCH LH

$

$

Currently unavailable

7

Troy-Bilt 1748286

ASSM-SUPPORT HITCH

$

$

Currently unavailable

8

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

9

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$3.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 1186335

SCR HFLK 5/16-18X2.00 ZP

$

$

Currently unavailable

22

0

N/A

$

$

Not available

23

MTD 1741195

WASHER-.87X.34X.06 NYLON

$

$

Not available

24

Troy-Bilt 1186331

SCR-HFLK 5/16-18X1.00 ZP
(Superseded to 710-04048)

$4.49

$

In Stock, Qty 7

0

25

MTD 1753745

ELBOW

$

$

Not available

26

MTD 1754409

ASSM-GRASS GUIDE

$

$

Not available

27

Troy-Bilt 1756183

ASSM-DISCHARGE CHUTE

$

$

Not available

28

Troy-Bilt 1186069

SCR-CARR 1/4-20X.75 G2 ZP
(Superseded to 710-0703)

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

30

MTD 1748304

BAFFLE-REAR

$

$

Not available

31

MTD 1748302

BLADE-MWR LH HILIFT

$

$

Not available

32

0

N/A

$

$

Not available

33

MTD 1748305

BAFFLE-FRONT
(Superseded to 1748305001)

$

$

Not available

34

MTD 1748303

BLADE-MWR RH HILIFT

$

$

Not available

35

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

36

MTD 1754861

NUT GUIDE 5/16-18 ZP

$

$

Not available

37

0

N/A

$

$

Not available

39

Troy-Bilt 1755360

SEAL-COVER 9.5"

$

$

Currently unavailable

40

MTD 1727127

LATCH-RUBBER

$

$

Not available

44

MTD 1729757

DECAL-WARNING

$

$

Not available

45

MTD 1727126

CLIP

$

$

Not available

46

MTD 1754150

LEVER-CLAMP

$

$

Not available

47

MTD 1753457

LEVER-LOCK

$

$

Not available

49

0

N/A

$

$

Not available

50

MTD 1755319

SPRING

$

$

Not available

52

Troy-Bilt 1185878

RIVET-POP 3/16"DIA
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.49

$

In Stock, Qty 15

0

54

Troy-Bilt 1754413

POP-RIVET
(Superseded to 928-0173)

$3.99

$

In Stock, Qty 10

0

?55

MTD 1750148

BRKT-ANGLE

$

$

Not available

?56

MTD 1751983

COVER-SEAL

$

$

Not available

57

Troy-Bilt 1748369

RIVET-POP

$

$

Currently unavailable

58

MTD 1748349

WINDOW

$

$

Not available

59

MTD 1755359

SEAL-COVER

$

$

Not available

60

MTD 1755317

ASSM-HINGE SUPPORT

$

$

Not available

61

MTD 1754982

CHUTE REINFORCEMENT

$

$

Not available

62

MTD 1754981

GASKET-CHUTE

$

$

Not available

?63

Troy-Bilt 1727379

RIVET-POP 3/16 X 5/8

$3.49

$

Usually ships in 3-6 days

0

?64

MTD 1748346

SCREEN

$

$

Not available

65

MTD 1755307

COVER-LOCK RH

$

$

Not available

66

MTD 1755308

COVER-LOCK LH

$

$

Not available

67

Troy-Bilt 1736359

WASHER-.88X.2X.059

$

$

Not available

68

MTD 1728772

RIVET-POP 3/16X1/2

$

$

Not available

69

Troy-Bilt 1186059

RIVET-POP .125

$

$

Currently unavailable

70

Troy-Bilt 1755123

DECAL-LOGO

$

$

Currently unavailable

71

MTD 1755358

SEAL-COVER

$

$

Not available

72

MTD 1748245

DECAL-INST

$

$

Not available

?73

Troy-Bilt 1737650

RIVET-POP
(Superseded to 928-04004)

$6.99

$

In Stock, only 1 left!

0

74

MTD 1754983

LINK

$

$

Not available

75

MTD 1754980

BRACKET-CHUTE

$

$

Not available

76

0

N/A

$

$

Not available

77

Troy-Bilt 1756753

ASSM-COLLAR STOP

$

$

Currently unavailable

78

Troy-Bilt 1723037

SCR
(Superseded to 710-0623)

$3.99

$

In Stock, Qty 10

0

79

Troy-Bilt 1756663

SUPPORT-TUBE

$

$

Currently unavailable
