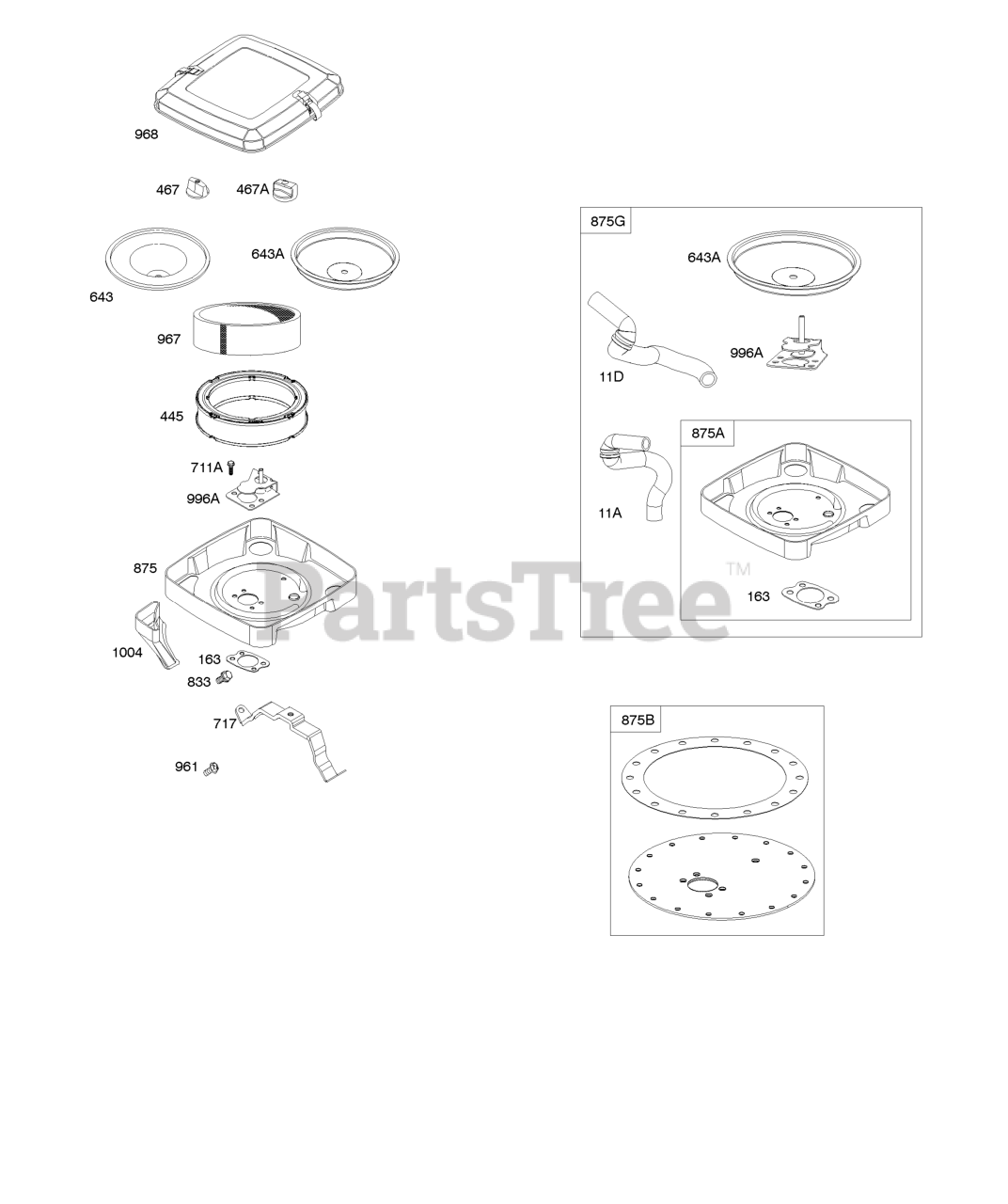

309440-0115-01 - Briggs & Stratton Horizontal Engine Air Cleaner Parts Diagram

Horizontal Engine

Air Cleaner Parts Diagram

  • Title

11A

Briggs & Stratton 844921

Tube-Breather

$15.99

$

Usually ships in 2-12 days

0

11D

Briggs & Stratton 844976

Tube-Breather

Note: Used After Code Date 12013100

$26.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

$5.49

$

In Stock, Qty 20+

0

445

Briggs & Stratton 394018S

Filter-A/C Cartridge

Note: Used Before Code Date 12020100

$25.99

$

In Stock, Qty 20+

0

445

Briggs & Stratton 841359

Filter-A/C Cartridge

Note: Used After Code Date 12013100

$33.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 691985

KNOB, Air Cleaner Cover

Note: Used Before Code Date 10040100

$7.99

$

In Stock, Qty 6

0

467

Briggs & Stratton 844618

Knob-Air Cleaner Cover

Note: Used After Code Date 10033100 Used Before Code Date 12020100

$7.99

$

In Stock, Qty 6

0

467A

Briggs & Stratton 846431

Knob-Air Cleaner Cover

Note: Used After Code Date 12013100

$7.99

$

In Stock, Qty 6

0

643

Briggs & Stratton 692079

Retainer-Air Filter
(Superseded to 844932)

Note: Used Before Code Date 12020100

$22.99

$

In Stock, only 1 left!

0

643A

Briggs & Stratton 844932

RETAINER, Air Filter

Note: Used After Code Date 12013100

$22.99

$

In Stock, only 1 left!

0

711A

Briggs & Stratton 690677

SCREW

Note: (Carburetor Shield)

$3.99

$

In Stock, only 2 left!

0

717

Briggs & Stratton 692153

Bracket-Air Cleaner

$9.49

$

Usually ships in 2-12 days

0

833

Briggs & Stratton 691593

Screw

Note: (Air Cleaner Mounting Strap/Stud)

$3.49

$

In Stock, Qty 14

0

875B

Briggs & Stratton 845871

Base-Air Cleaner

$

$

Not available

961

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, Qty 13

0

967

Briggs & Stratton 272490S

Filter-Pre Cleaner

$5.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 699959

Cover-Air Cleaner

$59.99

$

In Stock, only 1 left!

0

996A

Briggs & Stratton 844930

Shield-Carburetor

$36.99

$

Usually ships in 2-12 days

0

1004

Briggs & Stratton 841656

Duct-Air

$22.99

$

Usually ships in 2-12 days

0
