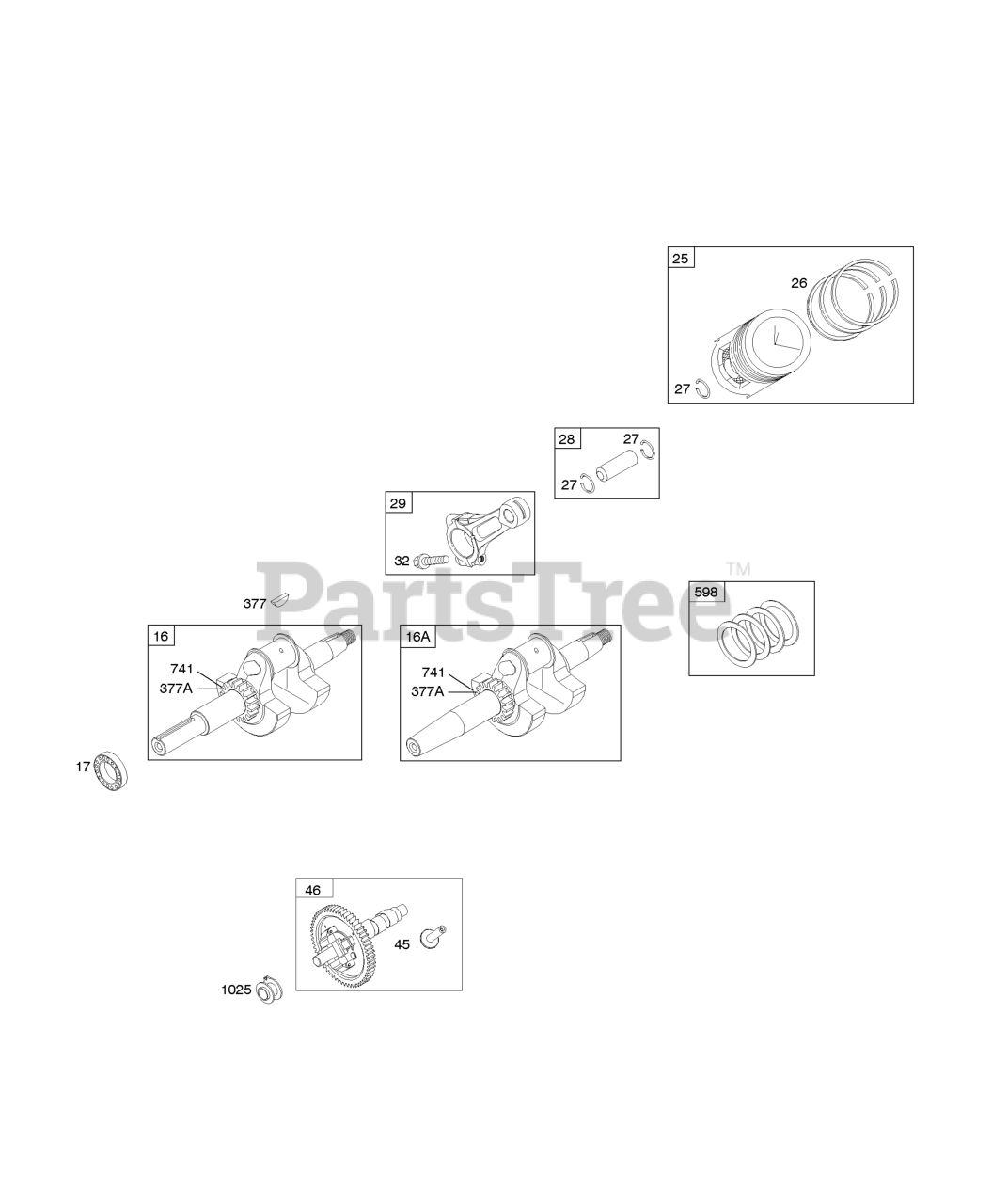

309440-0115-01 - Briggs & Stratton Horizontal Engine Camshaft, Crankshaft, Piston, Rings, Connecting Rod Parts Diagram

Horizontal Engine

Camshaft, Crankshaft, Piston, Rings, Connecting Rod Parts Diagram

  • Title

16

Briggs & Stratton 841827

Crankshaft
(Superseded to 84004507)

$

$

Not available

17

Briggs & Stratton 843827

Bearing-Ball

$38.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 843958

Piston Assembly

Note: (.020" Oversize) Used After Code Date 07122300

$

$

Not available

25

Briggs & Stratton 807619

Piston Assembly
(Superseded to 843951)

Note: (No Longer Available, For Replacement Order 843951) Used Before Code Date 07122400

$114.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 807809

Piston Assembly
(Superseded to 843958)

Note: (No Longer Available, For Replacement Order 843958) Used Before Code Date 07122400

$

$

Not available

25

Briggs & Stratton 843951

Piston Assembly

Note: Used After Code Date 07122300

$114.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 843957

Ring Set

Note: Used After Code Date 07122300

$61.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807620

Ring Set
(Superseded to 843951)

Note: (No Longer Available, For Replacement Order 843951) Used Before Code Date 07122400

$114.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 807810

Ring Set
(Superseded to 843958)

Note: (No Longer Available, For Replacement Order 843958) Used Before Code Date 07122400

$

$

Not available

26

Briggs & Stratton 843953

Ring Set

Note: Used After Code Date 07122300

$58.99

$

In Stock, Qty 10

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$5.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807621

Pin-Piston

Note: Used Before Code Date 07122400

$19.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844541

Pin-Piston

Note: Used After Code Date 07122300

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900S

Rod-Connecting

$61.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.99

$

In Stock, only 3 left!

0

45

Briggs & Stratton 843379

Tappet-Valve

$10.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 845977

Camshaft

$204.99

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 808095

Key-Woodruff

$14.99

$

Usually ships in 2-12 days

0

377A

Briggs & Stratton 691639

KEY, Woodruff

$4.99

$

In Stock, only 2 left!

0

598

Briggs & Stratton 807625

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$21.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 846085

Gear-Timing

$20.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

Spool-Governor

$24.99

$

In Stock, only 2 left!

0
