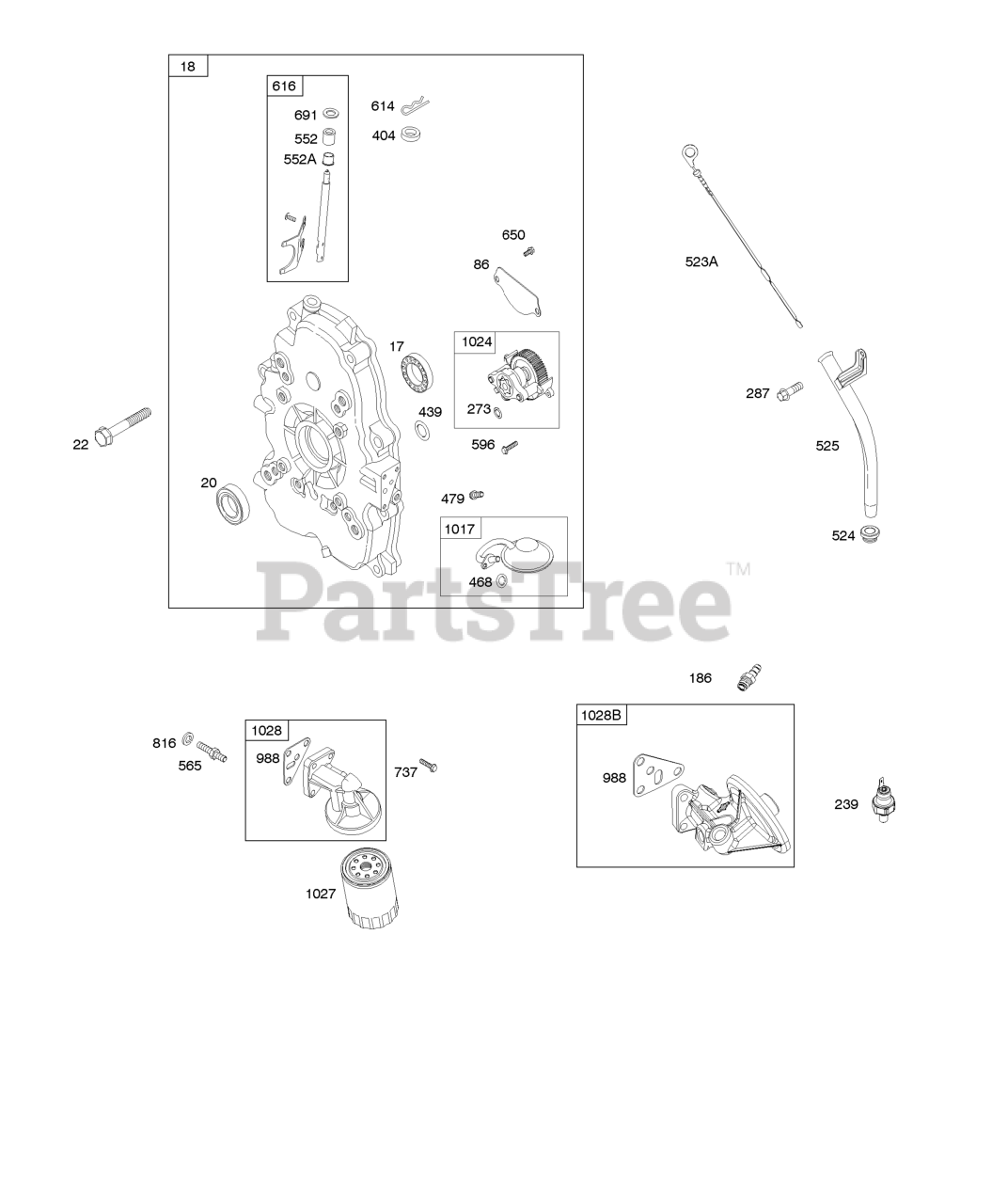

309440-0115-01 - Briggs & Stratton Horizontal Engine Crankcase Cover, Lubrication Parts Diagram

Horizontal Engine

Crankcase Cover, Lubrication Parts Diagram

  • Title

17

Briggs & Stratton 843827

Bearing-Ball

$36.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 844724

Cover-Crankcase

$285.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 11

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 7

0

86

Briggs & Stratton 690745

COVER, Gear

$6.49

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 693184

Connector-Hose

$9.49

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 841281

Switch-Oil Pressure

$32.99

$

Usually ships in 2-12 days

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, Qty 7

0

287

Briggs & Stratton 692062

Screw

Note: (Dipstick Tube)

$3.49

$

In Stock, only 1 left!

0

404

Briggs & Stratton 690704

Washer

Note: (Governor Crank)

$5.99

$

In Stock, only 4 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, only 1 left!

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

In Stock, only 1 left!

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.49

$

In Stock, Qty 13

0

523A

Briggs & Stratton 693175

Dipstick

$26.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 693172

Seal-Dipstick Tube

$5.49

$

In Stock, only 4 left!

0

525

Briggs & Stratton 693174

Tube-Dipstick

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 690701

Bushing-Governor Crank

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 806686

Bushing-Governor Crank

$8.49

$

Usually ships in 2-12 days

0

565

Briggs & Stratton 690682

Stud

Note: (Oil Filter Adapter)

$4.49

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$3.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 806685

Crank-Governor

$30.99

$

Usually ships in 2-12 days

0

650

Briggs & Stratton 841233

SCREW

Note: (Oil Deflector)

$3.49

$

In Stock, only 2 left!

0

691

Briggs & Stratton 842826

Seal-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

737

Briggs & Stratton 690679

Screw

Note: (Oil Filter Adapter) (M6x21mm)

$3.49

$

Usually ships in 2-12 days

0

816

Briggs & Stratton 690706

Washer

Note: (Oil Filter Adapter)

$3.99

$

In Stock, only 2 left!

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 3 left!

0

1017

Briggs & Stratton 690900

Screen-Oil Pump

$29.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 843825

Pump-Oil

Note: Used After Code Date 12022200

$108.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 693185

Pump-Oil

Note: (Oil Pump is No Longer Available) (See Reference 18 for correctreplacement Crankcase Cover) Used Before Code Date 12022300

$71.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1028B

Briggs & Stratton 843898

Adapter-Oil Filter

Note: (Compatible On Engines With Oil Cooler)

$97.99

$

Usually ships in 2-12 days

0
