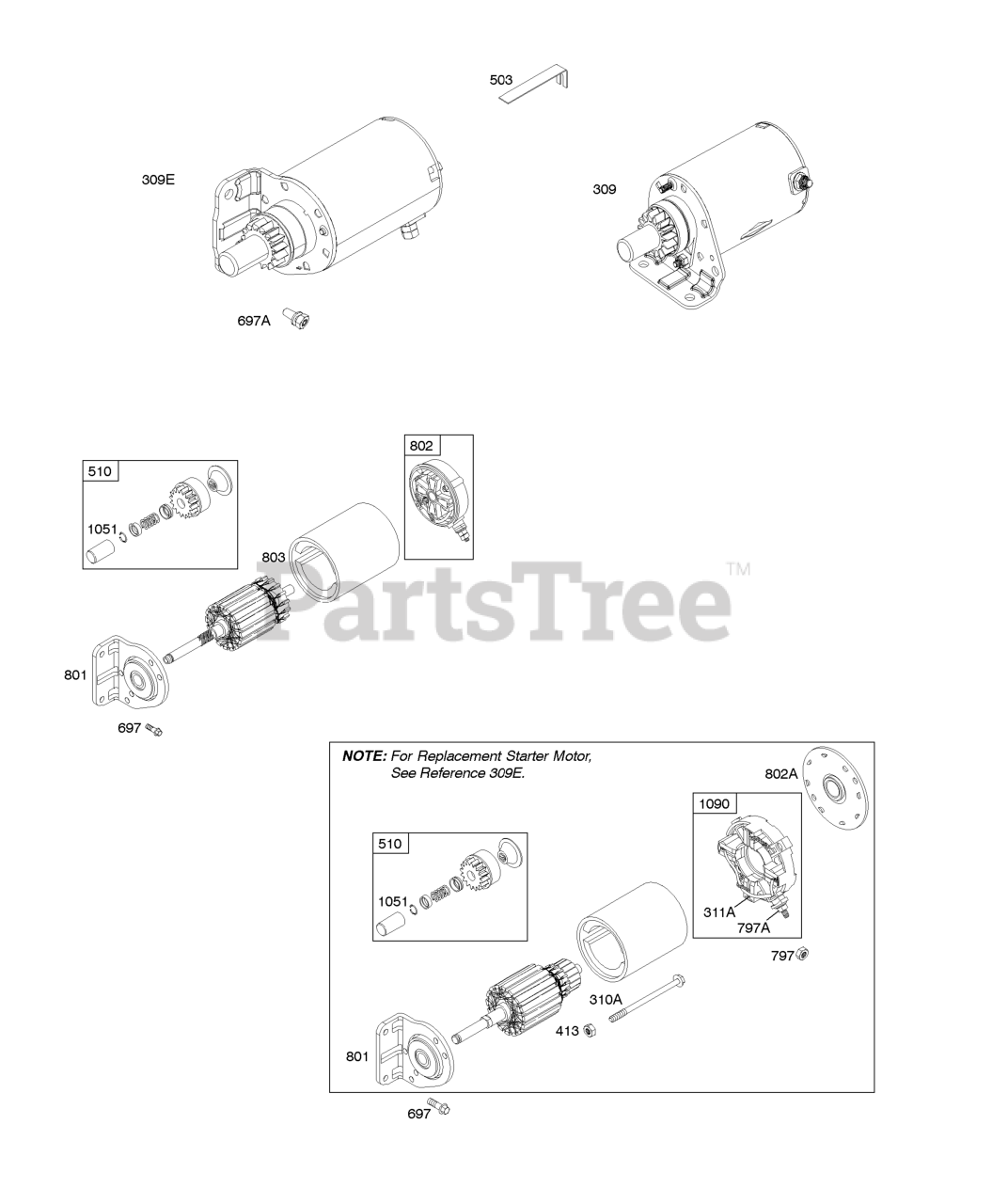

309447-0112-E1 - Briggs & Stratton Horizontal Engine Electric Starter Parts Diagram

Horizontal Engine

Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 846451

Motor-Starter

Note: Used Before Code Date 11011500

$203.99

$

Usually ships in 2-12 days

0

309E

Briggs & Stratton 844717

Motor-Starter

Note: Used After Code Date 11011400

$94.99

$

In Stock, Qty 20+

0

310A

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, only 2 left!

0

311A

Briggs & Stratton 395538

Brush Set

$

$

Not available

413

Briggs & Stratton 693587

Nut

Note: (Starter Motor)

$5.49

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 691532

STRAP, Starter

Note: (82mm Long)

$6.49

$

In Stock, only 1 left!

0

503

Briggs & Stratton 845016

Strap-Starter

Note: (60mm Long)

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 496881

Drive-Starter

Note: (Steel Pinion Gear) Used Before Code Date 14052800

$

$

Not available

697

Briggs & Stratton 692062

Screw

Note: (Starter Motor) (Drive Cap)

$3.99

$

In Stock, Qty 20+

0

697A

Briggs & Stratton 691902

Screw

Note: (Starter Motor) (Drive Cap)

$3.99

$

In Stock, Qty 20+

0

797

Briggs & Stratton 691029

NUT

Note: (Brush Retainer)

$5.99

$

In Stock, only 1 left!

0

797A

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 808778

Cap-Drive

Note: (NO LONGER AVAILABLE)

$

$

Not available

802

Briggs & Stratton 496813

Cap-End

Note: Used Before Code Date 14052800

$83.99

$

Usually ships in 2-12 days

0

802A

Briggs & Stratton 691286

CAP, End

$29.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 690854

Housing-Starter

Note: (NO LONGER AVAILABLE)

$

$

Not available

1051

Briggs & Stratton 691124

Ring-Retaining

Note: Used Before Code Date 14052800

$8.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

Note: Used Before Code Date 14052800

$31.99

$

In Stock, only 4 left!

0
