30989 - Toro 52" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Gear (SN: 280000001 - 280999999) (2008) FUEL TANK AND VALVE ASSEMBLY KAWASAKI FH541V-DS23 Parts Diagram

52" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Gear

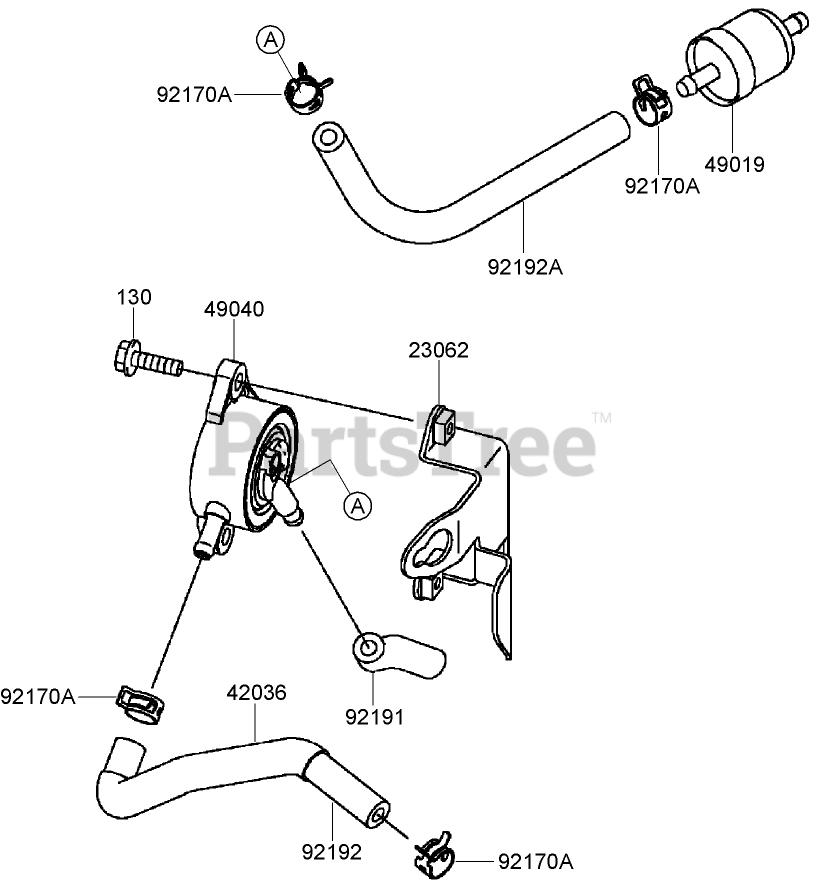

FUEL TANK AND VALVE ASSEMBLY KAWASAKI FH541V-DS23 Parts Diagram

  • Title
23062

Kawasaki 23062-7004-9H

Bracket
(Superseded to 23062-7019-9H)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, only 1 left!

0

42036

Kawasaki 42036-7012

SLEEVE

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-7001

Filter-Fuel
(Superseded to 49019-0027)

Note: Obtain parts from www.kawpowerepc.com

$9.99

$

In Stock, Qty 20+

0

49040

Kawasaki 49040-7001

Pump-Fuel
(Superseded to 49040-2075)

Note: Obtain parts from www.kawpowerepc.com

$37.99

$

Usually ships in 2-5 days

0

92170A

Kawasaki 92170-2088

Clamp

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92191

Kawasaki 92191-7002

Tube
(Superseded to 92192-2332)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 14

0

92192

Toro 92192-7035

TUBE (6.35X12.7X170)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92192A

Toro 92192-7037

TUBE (6.35X12.7X160)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

130

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0
